HV Cable Receptacle 75KV HV Receptacle CA1
HV Cable Receptacle 75KV HV Receptacle CA1
GB/T10151-2008 Medical diagnostic X-ray equipment-Specifications for high voltage cable plugs and sockets.
1、Thermoplastic material with high flame-retardant rating, high insulation resistivity (≥1015Ω ·m) and high temperature resistance (130ºC).
2、Corona-free aluminium anode plate.
3、Optional brass thrust ring.
4、Optional O-shaped rubber ring for oil seal.
5、Optional nickel plated brass flange.
|
Rated voltage between pin and flange |
75kVDC |
| Type test voltage between pins and flange | 150kVDC / 15min |
| Rated voltage between pins | 4.3kVACrms |
| Type test voltage between pins | 6kVACrms / 15min |
| Insulation resistance between pins | >1015Ω |
| Insulation resistance between pins and flange | >1015Ω |
| Maximum conductor current | 25A |
| Maximum continuous operating temperature | 130℃ |

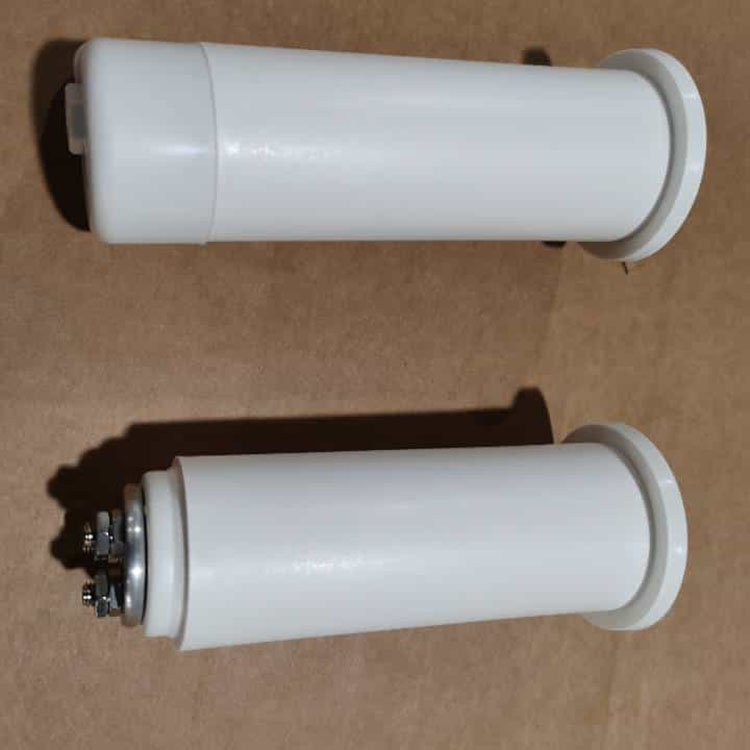

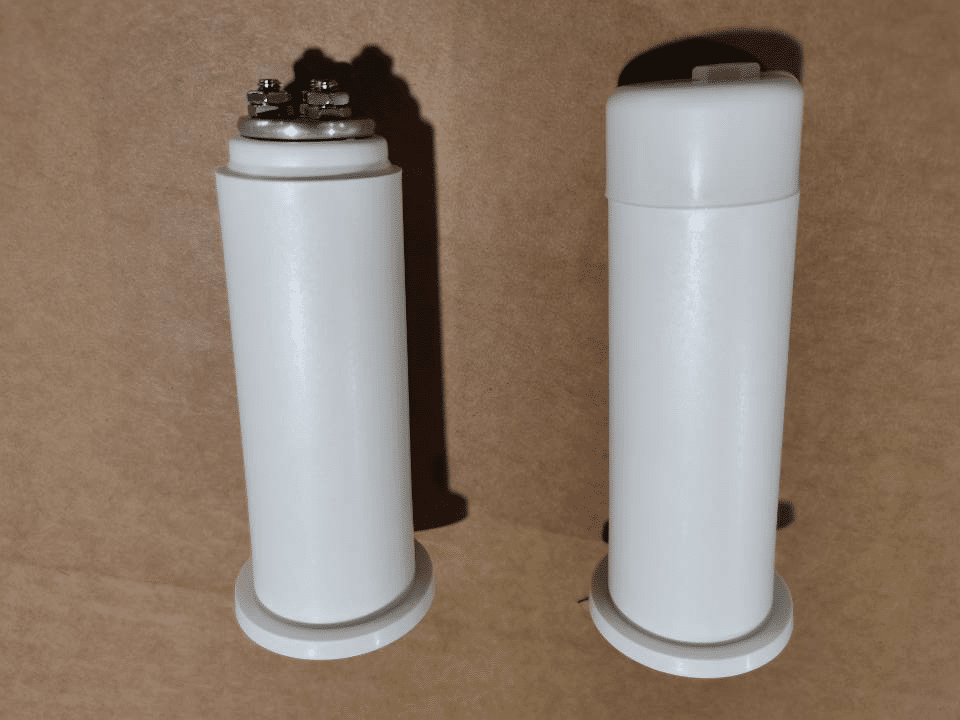

First Type
Second Type
Minimum Order Quantity: 1pc
Price: Negotiation
Packaging Details: 100pcs per carton or customized according to the quantity
Delivery Time: 1~2 weeks according to the quantity
Payment Terms: 100% T/T in advance or WESTERN UNION
Supply Ability: 1000pcs/ month
