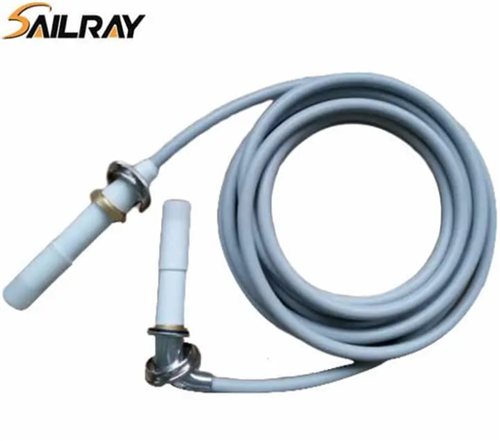

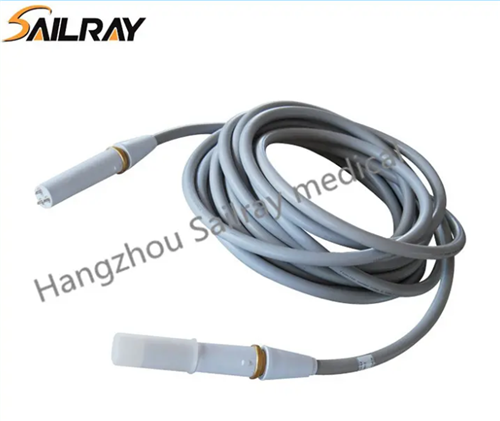

X-ray technology plays a crucial role in various fields, including medical imaging, industrial inspection, and security scanning. At the heart of X-ray systems lies the high voltage cable, which is essential for transmitting the high voltage required to generate X-rays. The performance and reliability of these cables can significantly impact the efficiency and safety of X-ray operations. In this article, we will explore the different types of X-ray high voltage cables and compare their features, advantages, and applications.
1. PVC insulated high voltage cables
Polyvinyl chloride (PVC) insulated cables are among the most commonly used types of X-ray high voltage cables. They are known for their flexibility, lightweight nature, and cost-effectiveness. PVC cables can withstand moderate voltage levels and are suitable for applications where extreme conditions are not a concern. However, they may not perform well in high-temperature environments or under heavy mechanical stress. Therefore, while PVC insulated cables are ideal for general use, they may not be the best choice for high-demand applications.
2. Silicone insulated high voltage cables
Silicone insulated cables are designed to operate in more demanding environments. They can withstand higher temperatures and are more resistant to environmental factors such as moisture and chemicals. This makes silicone cables an excellent choice for X-ray systems used in hospitals and laboratories where hygiene and temperature control are critical. Additionally, silicone cables offer superior flexibility, which is beneficial for installations requiring intricate routing. However, they tend to be more expensive than PVC cables, which may be a consideration for budget-conscious projects.
3. Cross-Linked polyethylene (XLPE) cables
Cross-linked polyethylene (XLPE) cables are another option for X-ray high voltage applications. XLPE insulation provides excellent thermal stability and electrical performance, making these cables suitable for high-voltage applications. They are resistant to heat, moisture, and chemicals, which enhances their durability and longevity. XLPE cables are often used in industrial settings where high voltage and harsh conditions are prevalent. However, their rigidity can make installation more challenging compared to more flexible options like silicone cables.
4. Teflon insulated high voltage cables
Teflon insulated cables are known for their exceptional performance in extreme conditions. They can handle high temperatures and are highly resistant to chemicals and abrasion. This makes Teflon cables ideal for specialized X-ray applications, such as those found in research laboratories or environments with harsh chemicals. While Teflon cables offer superior performance, they are also the most expensive option on the market. Therefore, they are typically reserved for applications where reliability and performance are paramount.
5. Comparison summary
When comparing the different types of X-ray high voltage cables, several factors come into play, including insulation material, temperature resistance, flexibility, and cost. PVC cables are cost-effective and suitable for general use, while silicone cables offer better performance in demanding environments. XLPE cables provide excellent thermal stability for high-voltage applications, and Teflon cables excel in extreme conditions but come at a higher price.
In conclusion, the choice of X-ray high voltage cable depends on the specific requirements of the application. Understanding the differences between these cable types can help professionals make informed decisions that enhance the safety and efficiency of their X-ray systems. Whether for medical, industrial, or research purposes, selecting the right high voltage cable is essential for optimal performance and reliability in X-ray technology.
