In diagnostic radiology, the difference between a clinically useful image and a diagnostically compromised one often comes down to beam control. A Medical X-ray Collimator is the device that makes that control possible — limiting the X-ray field to precisely the anatomy of interest, reducing scatter radiation, and protecting the patient from unnecessary exposure.
Yet despite the rapid growth of digital radiography and AI-assisted imaging systems, the Manual X-ray Collimator remains a cornerstone of radiographic practice worldwide. From community hospitals in Southeast Asia to mobile imaging units in rural Africa, manually operated collimators continue to deliver reliable, cost-effective beam restriction in environments where automation isn't always feasible or necessary.
This article explores how manual medical X-ray collimators work, why they matter for imaging precision and patient safety, and what procurement professionals, radiology engineers, and OEM buyers should look for when evaluating these critical components.
What Is a Manual Medical X-ray Collimator?
A Manual Medical X-ray Collimator — also referred to as an X-ray beam limiting device or radiography collimator — is an electromechanical accessory mounted directly to the X-ray tube housing. Its primary function is to shape and restrict the primary X-ray beam before it reaches the patient, ensuring that radiation exposure is confined to the intended anatomical region.
Working Principles
Inside a collimator are two pairs of lead-lined blades (or shutters) arranged in perpendicular planes. The operator manually adjusts these blades using external dials or knobs, narrowing or widening the beam aperture in both X and Y dimensions. A built-in illumination system — typically an LED or halogen light source positioned at the optical equivalent of the X-ray focal spot — projects a visible light field onto the patient, allowing the radiographer to precisely align the beam before exposure.
This light-field-to-X-ray-field alignment is fundamental. Regulatory standards including IEC 60601-2-54 and FDA 21 CFR Part 1020 require that the X-ray field not diverge from the light field by more than 2% of the source-to-image distance (SID). High-quality manual collimators are engineered to maintain this alignment throughout the device's operational lifespan.
Main Components
A standard manual medical X-ray collimator includes:
- Primary blade assembly — two sets of adjustable lead-lined blades
- Field light source — LED or halogen lamp for beam visualization
- Mirror assembly — reflects the light source to simulate X-ray beam geometry
- External adjustment dials — operator-controlled blade movement
- Housing — die-cast aluminum or reinforced polymer shell
- Mounting flange — connects the collimator to the X-ray tube port
Understanding these components is easier when you consider how they interact with the broader X-ray tube assembly. For a deeper look at how collimators integrate with tube housing design, see our overview of medical X-ray tube components and configurations.
Manual vs. Automatic Collimators
Automatic collimators — common in high-volume fluoroscopy suites and multi-detector CT systems — use motorized blade control and integrate with image receptor sensors to auto-size the field. They reduce operator dependency but come with significantly higher component costs and maintenance complexity.
Manual collimators, by contrast, offer a compelling set of advantages: lower acquisition cost, simpler maintenance, no dependency on motorized systems or software integration, and proven long-term reliability. For general radiography rooms, orthopedic clinics, veterinary practices, and portable X-ray systems, manual control provides all the beam-limiting precision required without the overhead of automation.
The key is quality of construction. A poorly manufactured manual collimator with blade backlash, inconsistent light-field alignment, or inadequate radiation shielding can introduce precisely the errors it's supposed to eliminate.
How Manual X-ray Collimators Improve Imaging Accuracy
Imaging accuracy in radiography isn't solely a function of detector technology or kVp settings. Beam geometry management — specifically how precisely the X-ray field is shaped and positioned — plays an equally critical role. Here's how a high-quality manual collimator contributes to each dimension of radiographic accuracy.
Beam Alignment Precision
When a radiographer sets up a chest PA projection, they rely on the collimator's light field to position the beam boundary relative to the patient's anatomy. If the light field doesn't accurately represent where X-rays will actually strike the detector, the resulting image may clip critical structures or include anatomy that obscures the region of interest.
Precision-engineered manual collimators use optically ground mirrors and accurately positioned light sources to ensure the illuminated field matches the radiation field within regulatory tolerances. In clinical practice, this means fewer repeat exposures due to misaligned fields — a direct contributor to both image quality and radiation dose management.
Reduced Scatter Radiation
Scatter radiation is generated when X-ray photons interact with patient tissue outside the primary beam. It degrades image contrast by adding a uniform background "fog" to the detector — reducing the visibility of fine structures like trabecular bone patterns, pulmonary nodules, or small joint spaces.
By restricting the beam to the minimum field size necessary, a properly adjusted manual collimator dramatically reduces the volume of tissue irradiated, which in turn reduces scatter production at the source. Studies published in Radiography (Elsevier) have demonstrated that reducing field size from a 30×30 cm to a 15×15 cm field can reduce scatter fraction by 40–60% depending on patient thickness and kVp.
This isn't just a theoretical benefit. Radiologists who work with well-collimated images report meaningfully improved contrast resolution, particularly in dense anatomical regions like the abdomen and pelvis.
Better Image Contrast and Diagnostic Confidence
Contrast is the fundamental parameter that allows radiologists to differentiate pathological tissue from normal anatomy. When scatter is controlled, the signal-to-noise ratio improves, and subtle findings — early pneumonia consolidation, hairline fractures, early-stage joint erosion — become visible where they previously would have been masked.
For diagnostic imaging facilities competing for clinical referrals, image quality is a direct business metric. Referring physicians and clinicians notice when images are sharp and diagnostically rich. A properly collimated imaging workflow contributes to that reputation.
Precise Field Limitation for Pediatric and Sensitive Populations
In pediatric radiography, beam limitation is not merely best practice — it is an ethical imperative. Children's developing tissues are significantly more radiosensitive than adults, and organs outside the intended imaging field should receive zero unnecessary exposure. Manual collimators, when correctly used, give the radiographer granular, visual control over field boundaries that an automated system set to "auto-collimate to detector size" cannot always match.
Similarly, in gonadal shielding protocols and thyroid protection for cervical spine imaging, tight manual field control complements physical shields to minimize dose to critical organs.
The Role of X-ray Collimators in Patient Radiation Safety
Patient radiation safety has become one of the defining issues in modern healthcare regulation and clinical practice. National and international guidelines — from the International Commission on Radiological Protection (ICRP) to the Joint Commission on Accreditation — emphasize that every medical exposure must be justified and optimized.
The ALARA Principle in Practice
ALARA — As Low As Reasonably Achievable — is the foundational principle of radiation protection. It requires that radiation doses be reduced to the lowest level that still achieves the diagnostic objective. Collimation is one of the most direct and controllable means of implementing ALARA in daily radiographic practice.
A radiographer who collimates tightly to a knee joint rather than irradiating the entire lower leg isn't just following protocol — they are actively reducing dose to bone marrow, skin, and soft tissue that serves no diagnostic purpose in that exposure. Over the lifetime of a patient who undergoes routine imaging for a chronic condition, these accumulated dose savings are clinically meaningful.
Reducing Repeat Imaging Rates
Repeat radiographs represent a dual harm: increased patient dose and wasted clinical resources. A significant proportion of repeat exposures in general radiography are attributable to positioning errors, which include poor beam alignment — precisely the failure mode that good manual collimation practices address.
Healthcare facilities that invest in quality collimators and proper radiographer training report measurable reductions in repeat rates. This is an economic argument as much as a safety argument: fewer repeats mean lower consumable costs, shorter patient throughput times, and reduced radiation burden on staff.
Patient Trust and Regulatory Compliance
Modern patients are increasingly informed about radiation risks. When a radiographer verbally explains the collimation process — "I'm adjusting the beam to cover only the area we need to image" — it communicates competence and care. This contributes to patient trust and compliance, both of which improve clinical outcomes.
From a regulatory perspective, documented collimation practices form part of quality assurance programs required by accreditation bodies. Facilities using certified, calibrated collimators with documented performance specifications are better positioned during regulatory inspections.
Key Features to Look for in a Manual Medical X-ray Collimator
Not all collimators are engineered equally. When procurement teams and medical imaging engineers evaluate manual collimators — whether for hospital installation, OEM integration, or distributor resale — these are the technical specifications that distinguish a reliable device from a liability.
LED Field Illumination
Halogen light sources, once standard, are increasingly being replaced by high-output LED arrays in modern collimators. LEDs offer significantly longer service life (50,000+ hours vs. 2,000 hours for halogen), lower heat generation (which protects the mirror assembly and reduces thermal drift), and consistent luminous output over time.
Consistent illumination matters because a dimming light source leads to imprecise field visualization, particularly in well-lit radiography rooms. Look for collimators that specify LED luminance levels and offer replaceable light modules.
Smooth, Backlash-Free Blade Adjustment
Blade adjustment mechanisms that exhibit backlash — where turning the dial produces no immediate blade movement due to gear play — introduce field-size errors that radiographers must compensate for intuitively. Over time, this leads to inconsistent collimation practices and degraded image quality.
High-quality manual collimators use precision-machined gear assemblies or direct-drive mechanisms that respond linearly to operator input. Field size should be reproducible within ±1 mm across repeated adjustments.
Durable Housing and Radiation Shielding
The housing must withstand the mechanical stress of clinical use — frequent mounting and dismounting, trolley transport, and temperature variation in different facility environments. Die-cast aluminum housings offer the best combination of structural rigidity and weight efficiency.
Internal lead shielding must be sufficient to attenuate the primary beam at all blade aperture settings. Leakage radiation through the collimator housing must conform to IEC and FDA standards.
DR System Compatibility
The transition from screen-film to digital radiography (DR) systems has changed the operating context for collimators. DR detectors are larger than most anatomical targets, meaning automatic "detector-size" collimation results in unnecessarily large fields. Manual collimators that allow fine field adjustment down to 5×5 cm or smaller are essential for DR environments where anatomical targeting is paramount.
Ensure that the collimator's focal-spot-to-mounting-face distance (FFD compensation) is compatible with your specific X-ray tube series. If you're evaluating tube-collimator compatibility for a DR retrofit project, our X-ray tube selection guide provides a practical reference for matching tube port specifications to collimator mounting requirements.
OEM Customization Options
For manufacturers integrating collimators into complete radiography system builds, OEM customization is a critical evaluation criterion. Custom mounting flange dimensions, field size scales calibrated to specific SIDs, private-label housing finishes, and modified blade aperture ranges are all legitimate OEM requirements that a capable collimator manufacturer should accommodate.

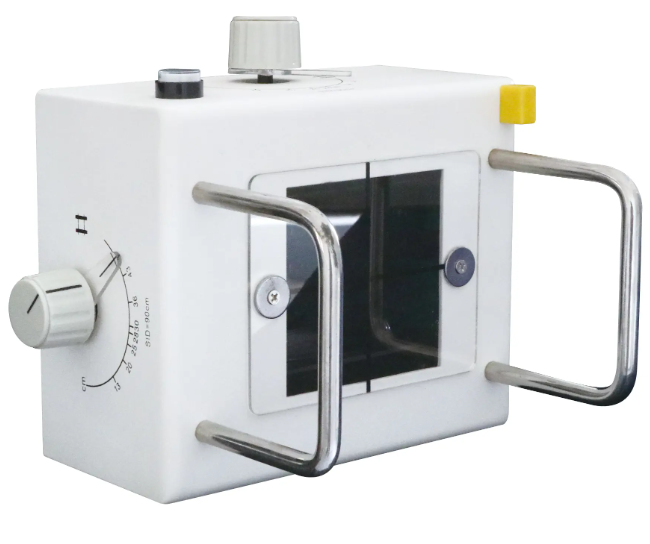

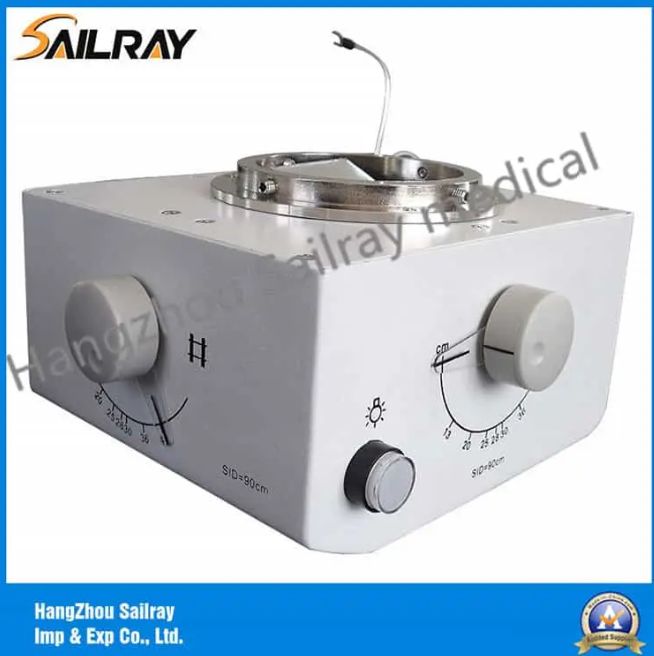

Why the SR103 X-ray Collimator Stands Out
Among the manual collimators available in the global radiology equipment market, the SR103 X-ray Collimator has earned a reputation among OEM integrators, hospital procurement teams, and regional distributors for a combination of precision engineering and operational reliability.
Technical Advantages
The SR103 is engineered for compatibility with a broad range of fixed and mobile X-ray tube assemblies. Its dual-blade aperture system allows independent X and Y field adjustment with a documented field accuracy of better than ±1.5% of SID — meeting or exceeding IEC 60601-2-54 requirements.
The LED illumination system delivers consistent field visualization across the device's operational lifespan, with a rated LED service life that eliminates the frequent bulb replacements associated with earlier halogen designs.
Precision Performance in Hospital Environments
In clinical environments, reliability means consistent performance across thousands of exposures without recalibration. The SR103's blade mechanism is designed for low backlash and smooth linear response, enabling radiographers to achieve reproducible field sizes efficiently — particularly important in high-throughput emergency and trauma imaging contexts where speed and accuracy must coexist.
The collimator housing meets IP-rated dust and moisture resistance specifications, making it suitable for the varied environments encountered in real hospital use — from air-conditioned imaging suites to mobile units operating in field conditions.
Compatibility with Modern Imaging Systems
The SR103 is designed to integrate with contemporary digital radiography platforms. Its mounting interface accommodates standard tube port configurations, and field size scales are calibrated for common SID values (100 cm, 110 cm, 120 cm, 150 cm). This breadth of compatibility reduces integration complexity for OEM buyers and simplifies field replacement for distributors servicing multi-brand equipment fleets.
OEM and Distributor Advantages
For companies building complete radiography systems or managing regional equipment distribution networks, the SR103 offers a practical set of commercial advantages: documented regulatory compliance documentation (CE, ISO 13485), OEM customization capabilities, competitive lead times, and technical support from a manufacturer with deep experience in X-ray tube and accessory manufacturing.
Common Applications of Medical X-ray Beam Limiting Devices
Manual X-ray beam limiting devices serve a remarkably diverse range of clinical and commercial applications, which is one reason they continue to see strong global demand despite the growth of automated imaging systems.
General Hospital Radiology
In general radiography rooms handling chest, extremity, spine, and abdominal imaging, manual collimators provide the field control necessary for anatomically targeted exposures. Multi-purpose rooms that see diverse patient populations and imaging protocols particularly benefit from the flexible field adjustment that manual systems offer.
Veterinary Imaging
Veterinary radiology presents unique collimation challenges: patient sizes range from a 200g exotic bird to a 600kg horse, and anatomical targets vary enormously. Manual collimators allow veterinary radiographers to adapt field sizes rapidly without the constraints of automation systems designed for human anatomy. The SR103's construction durability also makes it well-suited to the demanding physical environments of large-animal imaging.
Dental and Maxillofacial Imaging
While dedicated intraoral X-ray units use cylinder collimators, panoramic and cephalometric systems used in dental and maxillofacial imaging incorporate manual beam limiting devices to control field size during skull and facial bone projections. Precise beam restriction in this context directly limits radiation dose to the highly radiosensitive thyroid and ocular lens.
Portable and Mobile X-ray Systems
Portable X-ray systems used in intensive care units, operating theaters, and emergency departments require compact, lightweight collimators that can be quickly repositioned and adjusted at the bedside. Manual collimators are the standard choice for these systems, offering full field control without the power and space requirements of motorized units. For buyers sourcing collimators for portable applications, our portable X-ray tube product range details the tube assemblies with which the SR103 is validated for use.
Emergency and Trauma Radiography
In trauma imaging, speed is paramount — but so is image quality. A well-designed manual collimator allows an experienced radiographer to set the correct field size in seconds, enabling rapid acquisition of diagnostic-quality images in time-critical situations. The SR103's smooth adjustment mechanism supports this workflow without requiring multiple correction attempts.
Mobile Imaging Units and Global Health Applications
In underserved healthcare markets — rural hospitals, humanitarian mission facilities, remote diagnostic centers — mobile imaging units equipped with reliable manual collimators provide the only accessible radiographic service for large patient populations. The robustness, repairability, and low maintenance requirements of quality manual collimators make them the preferred choice for these settings.
Future Trends in Manual Medical X-ray Collimators
The medical imaging equipment market is evolving rapidly. Understanding where manual collimators fit within this trajectory helps manufacturers, distributors, and hospital planners make informed investment decisions.
Integration with Smart Radiography Workflows
Emerging smart radiography platforms use embedded sensors and workflow management software to guide radiographers through positioning and collimation protocols. While the physical beam-shaping function remains manual in many of these systems, collimators are increasingly expected to interface digitally — reporting field size data for dose tracking systems and quality assurance records. Manufacturers developing next-generation manual collimators are incorporating digital output interfaces that make this integration seamless.
Radiation Reduction as a Regulatory Priority
Radiation dose optimization is an accelerating priority in global healthcare regulation. The European Union's updated Medical Radiation Exposure Directive and CMS-linked quality metrics in the United States are driving hospitals to implement more rigorous dose monitoring programs. Manual collimators that enable precise field control — and are documented to meet calibrated performance standards — become more valuable in this regulatory context, not less.
AI Imaging System Compatibility
Artificial intelligence is transforming medical image analysis, but AI diagnostic models perform best on well-standardized, high-quality input images. Poorly collimated images introduce artifacts and field-boundary variability that degrade AI model performance. As AI becomes embedded in radiographic workflows, the demand for consistent, well-collimated source images will increase — not decrease — the clinical importance of precision beam control.
Growing Demand in Emerging Healthcare Markets
Healthcare infrastructure investment in Asia-Pacific, the Middle East, Africa, and Latin America continues at pace. New hospital builds and clinic expansions in these regions represent substantial demand for radiology equipment — including manual collimators that offer proven performance at accessible price points. OEM manufacturers and regional distributors who establish supply relationships in these markets now are well-positioned to capture long-term growth.
Conclusion: Precision, Safety, and the Enduring Value of Manual Collimation
In the evolution of diagnostic imaging, it can be tempting to equate technological complexity with clinical value. But the Manual Medical X-ray Collimator reminds us that some of the most important tools in radiology derive their value from doing a fundamental job with exceptional precision and reliability.
Beam restriction is not a peripheral concern — it is the mechanism through which imaging accuracy and patient radiation safety are simultaneously served. When radiographers have access to a collimator that responds smoothly, aligns accurately, and maintains its calibration over thousands of clinical uses, they are better equipped to do their jobs well and protect their patients.
The SR103 X-ray Collimator represents the standard that demanding clinical environments and quality-conscious OEM buyers should expect: engineered precision, proven durability, regulatory compliance, and the flexibility to serve diverse imaging applications across global healthcare markets.
Ready to equip your imaging systems or product line with a manual X-ray collimator that meets the highest clinical and engineering standards?
Contact the team at DentalX-RayTube.com to discuss OEM integration, volume distribution partnerships, and technical specifications for the SR103 and our broader range of medical imaging components. Our engineering team is available to support your evaluation and customization requirements.
Get in Touch with Our OEM Team →
Frequently Asked Questions (FAQ)
1. What is a medical X-ray collimator and what does it do? A medical X-ray collimator is a beam-limiting device mounted to the X-ray tube that shapes the primary radiation beam using adjustable lead blades. It restricts the X-ray field to the anatomical region being imaged, reducing patient radiation exposure and improving image contrast by minimizing scatter radiation.
2. What is the difference between a manual and automatic X-ray collimator? Manual collimators use operator-controlled dials to adjust lead blade positions, while automatic collimators use motorized drives and may auto-size the field to match the detector. Manual collimators are simpler, more durable, lower cost, and require no software integration — making them preferred for general radiography, portable systems, and veterinary imaging.
3. How does collimation reduce patient radiation dose? By restricting the X-ray beam to only the anatomy of diagnostic interest, collimation reduces the total volume of tissue exposed to radiation. Less irradiated tissue means less radiation dose and less scatter radiation — directly implementing the ALARA (As Low As Reasonably Achievable) principle.
4. What is the SR103 X-ray Collimator used for? The SR103 is a manual medical X-ray collimator designed for use with fixed and portable X-ray systems in hospitals, veterinary clinics, and mobile imaging applications. It is also used by OEM manufacturers integrating collimators into complete radiography system builds.
5. How do I verify that my collimator's light field matches the X-ray field? Light-to-radiation field congruence is tested using a radiographic test tool placed at the standard SID. The light field boundary is marked, and a test exposure is made. The difference between the light field edge and the radiation field edge should not exceed 2% of SID in any direction, per IEC 60601-2-54.
6. What LED specifications should I look for in a manual collimator? Look for LED illumination with a rated service life of at least 30,000 hours, sufficient luminance (typically >1,000 lux at 100 cm SID) for visualization in ambient lighting, and a color temperature that provides clear contrast against patient skin.
7. Can a manual X-ray collimator be used with digital radiography (DR) systems? Yes. Manual collimators are fully compatible with DR systems and are actually preferred in many DR environments because they allow field restriction below detector size — which is important for reducing unnecessary patient exposure, since DR detectors are often larger than the target anatomy.
8. What certifications should a quality medical X-ray collimator have? Look for CE marking (demonstrating conformity with EU medical device directives), ISO 13485 manufacturing certification, and compliance with IEC 60601-2-54 performance standards. FDA 510(k) clearance may also be relevant for collimators sold in the US market.
9. How often should a manual X-ray collimator be recalibrated? Most regulatory guidelines and accreditation standards require collimator performance testing (light-to-radiation field alignment, field size accuracy) at least annually and after any servicing, tube replacement, or significant physical impact. High-volume facilities may perform quarterly checks.
10. What OEM customization options are available for the SR103? The SR103 can be customized with modified mounting flange dimensions to match specific tube port configurations, custom field size scales for non-standard SIDs, private-label housing finishes, and adjusted blade aperture ranges. Contact the DentalX-RayTube engineering team to discuss your specific requirements.
