Short answer: there are two fundamental types—stationary anode and rotating anode X-ray tubes. But that's just the starting point. Once you factor in application, power rating, focal spot size, and cooling method, the variations multiply fast.
If you're sourcing X-ray tubes for medical imaging equipment, industrial NDT systems, or security screening machines, understanding these distinctions isn't optional. The wrong tube means compromised image quality, premature failure, or equipment incompatibility.
Let's break it down.
The Two Core Types of X-Ray Tube
Stationary Anode X-Ray Tubes
The simpler design. The anode (target) stays fixed while electrons bombard a single focal track. Heat dissipation is limited, which caps the power output.
Where they work well:
- Dental X-ray units
- Portable radiography
- Low-duty-cycle industrial inspection
- Veterinary imaging
Advantages? Lower cost, compact size, minimal maintenance. The tradeoff is thermal capacity—push them too hard and you'll burn through the target.
Typical specs: 50-70 kV, focal spot 0.5-1.5 mm, oil-cooled housing.

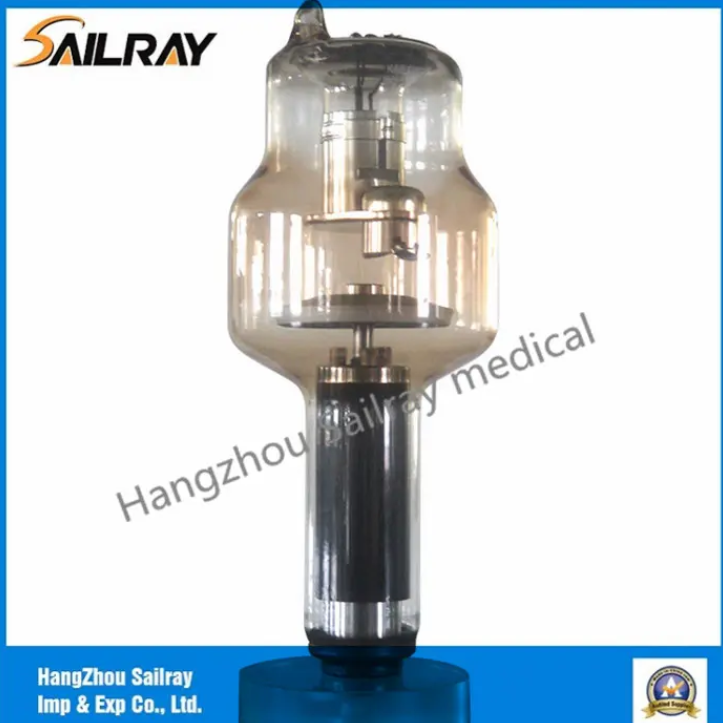

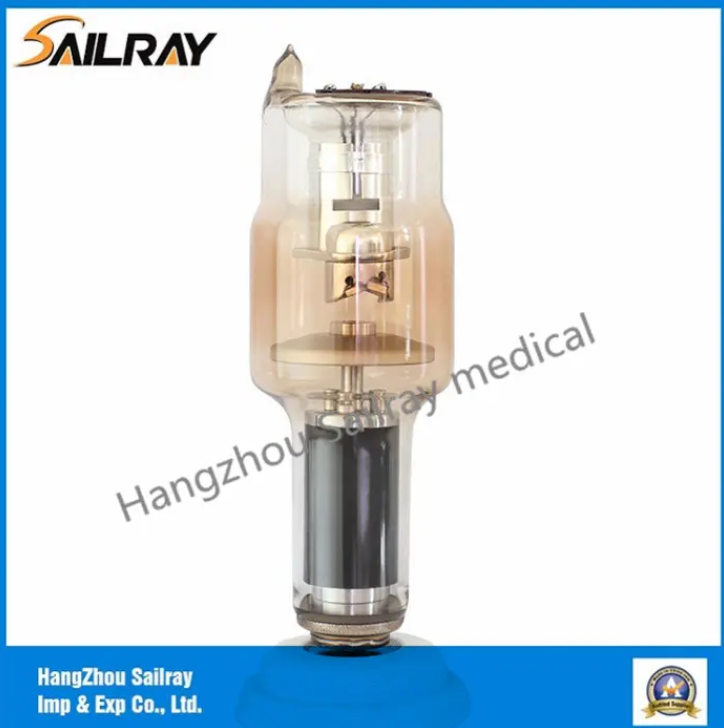

Rotating Anode X-Ray Tubes
The workhorse of modern radiology. The anode disc spins at 3,000-10,000 RPM, spreading heat across a much larger surface area. This allows higher power output and longer exposure times without thermal damage.
Where they dominate:
- CT scanners
- Fluoroscopy systems
- Angiography
- High-throughput radiography
The engineering is more complex—bearings, rotor assemblies, high-speed motors—which means higher cost and more maintenance considerations. But for demanding applications, there's no substitute.
Typical specs: 80-150 kV, focal spot 0.3-1.2 mm, heat storage capacity 200-800 kHU.
Beyond the Basics: Specialized X-Ray Tube Variants
Microfocus X-Ray Tubes
Focal spots as small as 5-50 microns. Used in PCB inspection, electronics failure analysis, and high-resolution industrial CT. Magnification imaging requires this level of precision.
Mammography Tubes
Molybdenum or rhodium targets instead of tungsten. Lower kV range (25-35 kV) optimized for soft tissue contrast. Strict regulatory requirements apply.
High-Power Tubes for CT
Designed for continuous rotation and rapid heat cycling. Liquid metal bearings in premium models extend service life. Heat dissipation rates of 5-7 MHU/min are common in current-generation scanners.
Industrial NDT Tubes
Built for harsh environments—temperature extremes, vibration, dust. Directional and panoramic beam options. Voltage ranges from 100 kV for light alloys up to 450 kV for heavy steel castings.
Key Parameters Buyers Should Evaluate
| Parameter | Why It Matters |
|---|---|
| Tube Voltage (kV) | Determines penetration capability |
| Tube Current (mA) | Affects exposure time and image brightness |
| Focal Spot Size | Smaller = sharper images, but lower heat tolerance |
| Anode Heat Capacity (HU/kHU) | Limits continuous operation time |
| Target Material | Tungsten (general), Molybdenum (mammo), Copper (industrial) |
| Cooling Method | Oil, forced air, or water—impacts duty cycle |
| Housing Compatibility | Must match OEM mounting and connector specs |
What to Verify Before Ordering
Sourcing X-ray tubes isn't like buying commodity parts. A few questions worth asking:
- OEM or aftermarket? Aftermarket tubes can deliver 30-50% cost savings, but verify quality certifications.
- Warranty coverage – 12 months is standard; some suppliers offer extended terms on rotating anode units.
- Regulatory compliance – FDA 510(k) clearance for U.S. medical markets, CE marking for Europe, NMPA for China.
- Lead time – High-power CT tubes often have 8-12 week production cycles.
- Technical support – Installation guidance, compatibility verification, failure analysis.
Looking for a Reliable X-Ray Tube Supplier?
We supply X-ray tubes for medical, industrial, and security applications—stationary anode, rotating anode, microfocus, and specialty configurations. OEM-equivalent quality. Competitive pricing on replacement tubes and complete insert assemblies.
Send us your equipment model and current tube specs. We'll confirm compatibility and provide a quotation within 48 hours.
