Introduction
A single point of failure in a high voltage cable can shut down a $2 million CT scanner, delay a hospital's diagnostic workflow, and put a manufacturer's reputation at serious risk. In medical device manufacturing, the wires carrying 40 kV, 75 kV, or even 150 kV are not commodity components — they are mission-critical links between power supply systems and the imaging or therapeutic modules that clinicians depend on every day.
Yet many procurement teams still treat high voltage wire sourcing as a checkbox exercise: find the lowest price, confirm a basic spec sheet, and move on. That approach works for commodity fasteners. It does not work for shielded HV cable running inside a dental X-ray unit where patient safety, electromagnetic compatibility, and a 10-year service life are non-negotiable.
This guide is written for the engineers, sourcing managers, and OEM/ODM decision-makers who need to get this right. Over the following sections, we will walk through the technical, commercial, and strategic factors that separate a mediocre high voltage cable supplier from one that actually protects your product line — and your patients.
Whether you are designing next-generation diagnostic imaging devices, upgrading legacy X-ray equipment, or sourcing flexible high voltage cable for compact dental panoramic systems, the principles here apply. Let's get into it.
Why High Voltage Wire Matters in Medical Devices
Medical devices that rely on high voltage are not forgiving environments. A dental intraoral X-ray unit typically operates at 60–70 kV. A mammography system pushes 25–35 kV with extremely tight ripple tolerances. A CT scanner's rotating anode tube demands sustained high voltage delivery at currents that generate significant heat — and the cable must handle all of it without degradation, arcing, or signal interference.
The Consequences of Failure
High voltage wire failure in medical applications falls into three categories, all of them expensive:
- Patient Safety Events. Insulation breakdown can cause arcing, electrical leakage, or radiation dose errors. Regulatory agencies treat these as Class I recalls — the most serious category.
- Device Downtime. When an HV cable fails inside an installed system, the mean time to repair often exceeds 48 hours. For a hospital running a single CT scanner, that translates to hundreds of cancelled appointments and significant revenue loss.
- Regulatory Exposure. The FDA's 510(k) and EU MDR frameworks hold manufacturers responsible for component-level quality. A cable failure traced to an unqualified supplier creates audit findings that cascade across your entire quality management system.
Where High Voltage Cables Are Used in Medical Systems
| Application | Typical Voltage Range | Key Cable Requirements |
|---|---|---|
| Dental X-ray (intraoral) | 50–70 kV | Compact, flexible, low capacitance |
| Dental X-ray (panoramic/CBCT) | 60–90 kV | Flexible high voltage cable with tight bend radius |
| Mammography | 25–35 kV | Ultra-low noise, shielded HV cable |
| General radiography | 40–150 kV | High insulation strength, durable jacketing |
| CT scanners | 80–140 kV | Heat-resistant, continuous-duty rated |
| High voltage power modules | 5–200 kV | Application-specific, often custom OEM high voltage cable |
| Electrostatic equipment | 10–100 kV DC | Corona-resistant insulation |
The takeaway is straightforward: high voltage cable is not a generic wire product in medical contexts. The voltage class, flexibility requirements, shielding needs, environmental conditions, and regulatory constraints vary dramatically across applications. Your supplier must understand these differences — not just fill an order.
Key Factors Manufacturers Consider When Choosing Suppliers
Based on procurement patterns across the medical device sector and interviews with OEM engineering teams, the factors that actually drive supplier selection — in order of practical importance — are:
- Proven performance in medical applications
- Certifications and regulatory traceability
- Custom design and OEM/ODM flexibility
- Material quality and insulation consistency
- Testing rigor and documentation
- Supply chain reliability and lead time predictability
- Technical support and co-engineering capability
- Total cost of ownership
Notice that price ranks last. That is not idealism — it reflects the reality that a cable failure in the field costs 50–200x the price difference between a qualified and unqualified supplier. Experienced sourcing managers in this sector understand this math.
Let's examine each factor in detail.
Material Quality and Insulation Standards
The insulation system is the heart of any high voltage wire. In medical applications, the insulation must do several things simultaneously: withstand the rated voltage with adequate safety margin, resist partial discharge at operating stress levels, maintain dielectric integrity over thousands of thermal cycles, and remain flexible enough for installation and service access.
Silicone vs. Other Insulation Materials
Silicone high voltage cable has become the dominant choice for medical device applications, and for good reason:
- Temperature range: Silicone rubber maintains its dielectric properties from -60°C to +200°C, far exceeding the operating envelope of most medical devices.
- Flexibility: Silicone remains pliable over its entire service life, which is critical for cables routed through articulating arms on C-arm fluoroscopy units or compact dental X-ray systems.
- Biocompatibility: Medical-grade silicone compounds are well-characterized for use in proximity to patients.
- Aging resistance: Silicone does not crack, harden, or become brittle with age the way PVC or polyethylene insulations can.
However, silicone is not universally superior. For applications requiring exceptional abrasion resistance or chemical exposure tolerance, XLPE or EPR may be appropriate. The right HV wire manufacturer will guide you to the correct material — not simply default to whatever they stock.
Insulation Thickness and Voltage Rating
A common mistake in specification is conflating voltage rating with insulation thickness. Two cables rated at 75 kV can have dramatically different insulation wall thicknesses depending on the material's dielectric constant and the design safety factor. Key questions to ask your supplier:
- What is the dielectric strength of the insulation compound (kV/mm)?
- What safety factor is applied above the rated voltage?
- What is the partial discharge inception voltage , and how is it tested?
- What is the expected insulation life at continuous rated voltage?
A credible medical cable supplier will have documented answers to all four questions — not just a datasheet voltage rating.
Importance of Shielded and Flexible HV Cable
Why Shielding Matters
In diagnostic imaging environments, electromagnetic interference is the enemy of image quality. A shielded HV cable serves two purposes:
- Containing radiated emissions from the high voltage conductor, preventing interference with sensitive detector electronics.
- Protecting the HV circuit from external EMI sources — which are plentiful in modern hospitals filled with wireless devices, LED lighting drivers, and variable-speed motor drives.
For X-ray equipment specifically, inadequate cable shielding manifests as image artifacts — subtle noise patterns that degrade diagnostic accuracy. In dental X-ray systems, where image resolution directly impacts the detection of early-stage caries or periapical pathology, this is not a cosmetic issue. It is a clinical one.
Shield Construction Options
| Shield Type | EMI Performance | Flexibility | Cost | Best For |
|---|---|---|---|---|
| Braided copper | Excellent | Good | Moderate | General medical imaging |
| Spiral/serve shield | Good | Excellent | Lower | Flexible high voltage cable in articulating assemblies |
| Foil + drain wire | Very good | Poor | Lower | Fixed-installation HV cable |
| Double shield | Superior | Moderate | Higher | CT scanners, MRI-adjacent equipment |
The optimal shielding approach depends on your specific application. A dental panoramic unit that must route cable through a rotating C-arm needs a spiral-shielded flexible high voltage cable. A fixed high voltage power module feeding a stationary X-ray tube can use a foil-shielded design with lower flexibility.
Flexibility as an Engineering Requirement
Flexibility is not a convenience feature — in many medical applications, it is a hard engineering constraint.
Consider a dental CBCT unit: the X-ray source and detector rotate around the patient's head on a gantry with a radius of roughly 30 cm. The HV cable must follow this rotation through thousands of cycles without fatigue failure. A cable that is technically rated for the voltage but lacks the mechanical flexibility for this duty cycle will fail — usually at the worst possible time.
Specifications to evaluate for flexible high voltage cable:
- Minimum bend radius
- Flex life
- Torsional flexibility
- Jacket material
Compliance and Certifications
Medical device manufacturers operate under some of the most stringent regulatory frameworks in any industry. Your high voltage cable supplier's certifications are not marketing decorations — they are prerequisites for your own regulatory submissions.
Essential Certifications for Medical HV Cable
- UL Recognition (UL 3239, UL 758): Required for high voltage wire used in devices sold in North America. Confirms the wire meets specific voltage rating, temperature class, and flame resistance criteria.
- IEC 60601-1 Compatibility: The cable itself is not certified to IEC 60601-1 , but the supplier should demonstrate that their cable is designed and tested to support compliance at the device level.
- RoHS / REACH Compliance: Mandatory for EU market access. All materials in the cable must be documented and compliant.
- ISO 9001 / ISO 13485: ISO 9001 is a baseline. ISO 13485 — the quality management standard specific to medical devices — signals that the supplier understands the unique requirements of this industry.
- CE Marking Documentation: For cables sold as components into CE-marked devices, the supplier should provide declarations of conformity and supporting technical documentation.
Traceability Requirements
Regulatory audits for medical devices routinely trace components back to raw material lots. Your high voltage cable supplier must maintain:
- Lot-level material traceability
- Production batch records with in-process test data
- Certificate of Conformance for each shipment
- Retention samples for post-market investigation if needed
If a supplier cannot provide lot-level traceability, they are not qualified for medical device supply chains. Full stop.
Custom OEM/ODM Capabilities
Off-the-shelf high voltage cable meets the needs of perhaps 30% of medical device applications. The remaining 70% require some degree of customization — and this is where the gap between a genuine HV wire manufacturer and a trading company becomes apparent.
Common Customization Requirements
- Custom conductor configurations: Multi-conductor HV cable, coaxial designs, or hybrid cables combining HV conductors with signal or power wires.

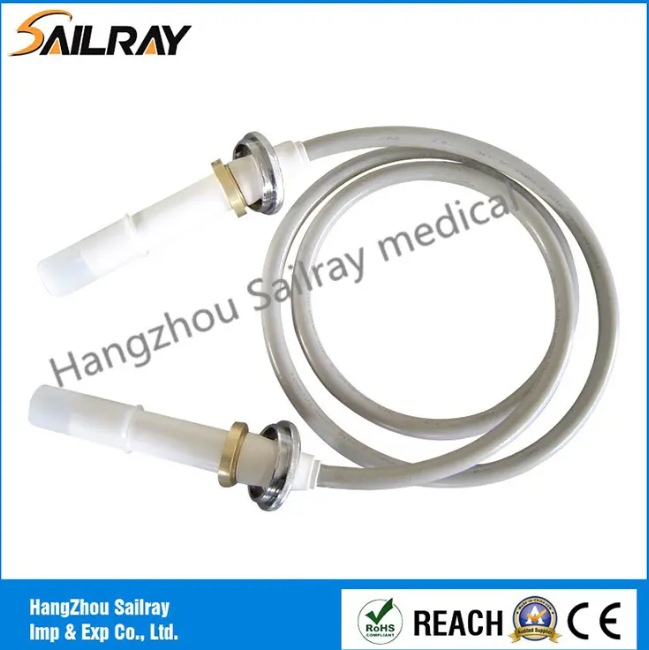

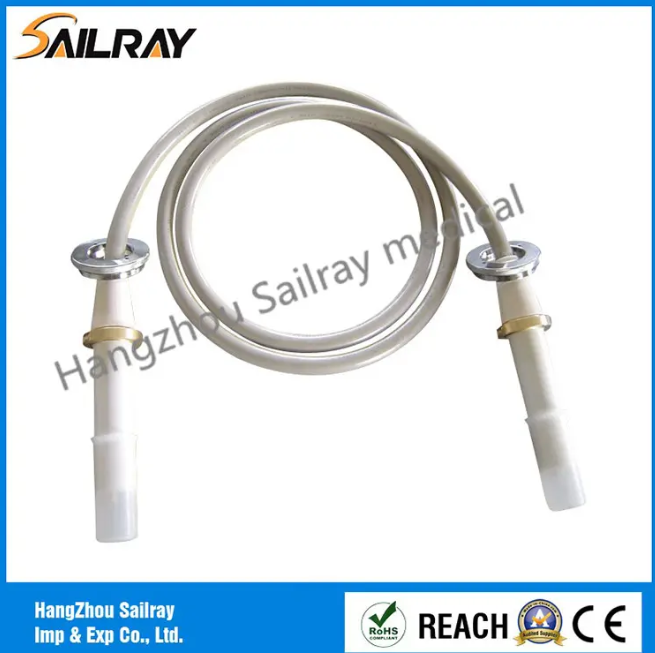

- Application-specific connectors: Integrated molded connectors (e.g., for X-ray tube receptacles) that eliminate field termination and improve reliability.
- Custom lengths and tolerances: Medical devices have precise cable routing requirements. A cable that is 50 mm too long creates a service hazard; 50 mm too short creates a warranty claim.
- Modified insulation formulations: Specific color coding, enhanced flame resistance, or customized dielectric properties.
- OEM high voltage cable assemblies: Complete cable assemblies tested and delivered ready for installation, including strain relief, grounding provisions, and labeling.
Evaluating OEM/ODM Capability
A practical checklist for assessing a supplier's custom capability:
- Does the supplier have in-house compounding capability for insulation materials?
- Can they produce prototype quantities (10–50 units) with production-representative processes?
- Do they offer design-for-manufacturing (DFM) feedback during the development phase?
- Can they maintain revision-controlled specifications and change management?
- Do they have engineering staff who can participate in design reviews?
- Is their minimum order quantity (MOQ) compatible with your production volume?
- Can they scale from prototype to volume production without re-qualification?
If a supplier checks all seven boxes, you are dealing with a genuine manufacturing partner — not a middleman.
Testing and Quality Control Procedures
In-Process and Final Testing
Every meter of high voltage wire destined for medical applications should undergo, at minimum, the following tests:
Electrical Testing:
- Dielectric withstand (hipot) test at 2–3x rated voltage
- Insulation resistance measurement (typically >10,000 MΩ·km)
- Partial discharge testing at 1.5x rated voltage (critical for cables above 20 kV)
- Capacitance per unit length measurement (relevant for pulse applications in X-ray equipment)
- Conductor resistance verification
Mechanical Testing:
- Bend test at rated minimum bend radius
- Tensile strength of insulation and jacket
- Flex life testing for flexible high voltage cable
- Cold bend test at minimum rated temperature
Environmental Testing:
- Thermal aging per applicable UL or IEC protocols
- Humidity resistance
- Chemical resistance
Testing Documentation
The test data is only valuable if it is documented, traceable, and accessible. Require your supplier to provide:
- Statistical process control data for critical parameters
- First article inspection reports for new or modified designs
- Ongoing reliability data from accelerated life testing
- Failure analysis capability and reporting for any field returns
Pro Tip: Request a facility tour or virtual audit focused specifically on the test lab. The sophistication and calibration status of a supplier's test equipment tells you more about their quality commitment than any sales presentation.
Supply Chain Stability and Lead Time
The COVID-era supply chain disruptions taught medical device manufacturers a painful lesson: a single-source strategy for critical components like high voltage cable is a business continuity risk.
Factors Affecting Supply Chain Reliability
- Raw material sourcing: High-purity silicone compounds and oxygen-free copper conductors have limited global supply bases. A responsible medical cable supplier maintains safety stock of critical raw materials.
- Manufacturing location diversification: Suppliers with manufacturing capacity in multiple regions provide natural hedging against regional disruptions.
- Inventory programs: For production-volume OEM customers, supplier-managed inventory or consignment programs reduce lead time variability.
- Typical lead times: Standard high voltage cable products generally ship in 2–4 weeks. Custom OEM high voltage cable typically requires 6–10 weeks for initial orders, with repeat orders in 3–5 weeks.
Questions to Ask About Supply Chain
- What is your current lead time for [specific cable type], and how has it varied over the past 12 months?
- Do you maintain safety stock of critical raw materials?
- What is your capacity utilization, and can you accommodate demand surges of 30–50%?
- Do you have a documented business continuity plan?
- Can you support vendor-managed inventory or blanket order arrangements?
Common Mistakes Buyers Make
After decades in this industry, certain procurement errors appear with frustrating regularity. Avoiding these will save you time, money, and considerable headaches.
Mistake #1: Selecting on Unit Price Alone
A high voltage cable that costs 15% less but fails 18 months into a 10-year expected service life is not cheaper. It is dramatically more expensive when you factor in field service costs, warranty claims, regulatory reporting, and reputational damage.
Calculate total cost of ownership, not just purchase price.
Mistake #2: Treating HV Cable Like Standard Wire
Standard hookup wire suppliers — even good ones — often lack the specialized equipment, materials knowledge, and testing capability required for high voltage applications. The physics of high voltage insulation are fundamentally different from low-voltage wire engineering.
Mistake #3: Skipping Qualification Testing
"The supplier said it meets the spec" is not qualification. Incoming inspection of initial lots, accelerated life testing in your specific application conditions, and documented first article approval are the minimum.
Mistake #4: Ignoring the Connector Interface
The cable-to-connector interface is the most common failure point in high voltage assemblies. If you are sourcing cable and connectors separately, ensure the termination process is validated. Better yet, source complete cable assemblies from a supplier who controls the entire process.
Mistake #5: Not Engaging the Supplier During Design
Bringing your high voltage cable supplier into the design process at the concept stage — rather than after specifications are frozen — enables design optimization that reduces cost, improves reliability, and accelerates time to market. Experienced HV cable manufacturers have seen hundreds of applications and can identify potential problems before they become expensive changes.
Mistake #6: Overlooking Long-Term Supply Agreements
Spot-buying HV cable at each production run creates price volatility and lead time uncertainty. Long-term supply agreements with volume commitments give you price stability, priority allocation during shortages, and leverage to request continuous improvement.
Mistake #7: Failing to Audit the Actual Factory
Brochures lie. Websites exaggerate. Factories don't. An on-site audit of the actual manufacturing facility — not a showroom or sales office — is the only reliable way to verify capability claims.
Future Trends in Medical High Voltage Cable Industry
The medical HV cable sector is evolving in response to broader trends in medical device design, regulatory tightening, and materials science advancement. Here is what we see shaping the next five years:
1. Miniaturization and Higher Voltage Density
As medical devices — particularly dental X-ray systems and portable diagnostic units — become more compact, the demand for high voltage cable with smaller outer diameters at equivalent or higher voltage ratings is increasing. This drives innovation in advanced insulation materials with higher dielectric strength per millimeter.
2. Increased Demand for Flexible High Voltage Cable
The trend toward robotic-assisted surgery, articulating C-arms, and portable imaging systems is accelerating demand for flexible high voltage cable that can sustain millions of flex cycles. Expect silicone high voltage cable formulations optimized for dynamic flex to become standard offerings.
3. Integrated Cable Assemblies
The industry is moving away from field-terminated cables toward fully tested, factory-assembled cable systems. This reduces installation errors, improves reliability, and simplifies the device manufacturer's supply chain.
4. Sustainability and Material Compliance
Regulatory frameworks like EU REACH continue to expand the list of restricted substances. Forward-looking HV wire manufacturers are already reformulating insulation compounds to eliminate substances of very high concern before regulatory deadlines.
5. Digital Quality Documentation
Paper certificates of conformance are giving way to digital quality records with blockchain-verified traceability. This is particularly relevant for medical cable suppliers serving global OEMs who need to demonstrate supply chain integrity across multiple regulatory jurisdictions.
6. AI-Driven Predictive Quality
Leading manufacturers are implementing machine learning models that analyze in-process test data to predict potential quality issues before they result in nonconforming product. This is an emerging capability, but early adopters in the high voltage cable space are reporting significant reductions in scrap and customer complaints.
Buyer's Checklist: Evaluating a High Voltage Cable Supplier for Medical Applications
Before issuing a purchase order, score each potential supplier against these criteria:
- Medical industry experience: Documented track record supplying HV cable to medical device OEMs
- Relevant certifications: UL, ISO 9001, ISO 13485, RoHS/REACH
- Material traceability: Lot-level traceability from raw material to finished product
- Custom capability: Demonstrated ability to design and manufacture OEM high voltage cable
- Testing rigor: Comprehensive electrical, mechanical, and environmental test protocols
- Shielding options: Multiple shield types available
- Flexibility ratings: Published bend radius and flex life data for flexible HV cable
- Quality documentation: SPC data, CoCs, and first article inspection reports available
- Supply chain stability: Safety stock programs, dual sourcing of raw materials, VMI capability
- Technical support: Engineering staff available for design consultation and DFM feedback
- Regulatory knowledge: Understanding of IEC 60601-1, FDA QSR, and EU MDR implications
- Factory audit: On-site or virtual audit conducted and documented
Conclusion
Choosing the right high voltage wire supplier for medical device manufacturing is not a purchasing decision — it is a design decision, a quality decision, and ultimately a patient safety decision. The cable connecting your power supply to your X-ray tube or high voltage module is only as reliable as the supplier who designed, manufactured, and tested it.
The suppliers who deserve your business are the ones who understand the difference between industrial HV cable and medical-grade high voltage cable — who invest in silicone insulation technology, advanced shielding, and flexible cable designs because they understand where their products end up. They maintain ISO 13485 quality systems not because a customer asked, but because they consider themselves part of the medical device industry. They offer custom OEM/ODM capabilities because they know that every medical device is different, and they want to be part of making yours better.
Take the time to qualify your suppliers rigorously. Use the checklists and criteria in this guide. Visit the factory. Test the product. Build a relationship with an HV wire manufacturer who will be a long-term partner, not just a vendor.
Your devices — and the patients who depend on them — deserve nothing less.
Ready to Source High-Quality Medical High Voltage Cable?
If you are developing or manufacturing medical devices that require reliable, certified high voltage wire and cable solutions, we invite you to connect with our engineering team. With deep experience in dental X-ray systems, diagnostic imaging equipment, and custom OEM high voltage cable assemblies, we offer the technical expertise, manufacturing capability, and quality commitment your application demands.
Contact Us Today for a Free Technical Consultation →
Whether you need a standard silicone high voltage cable, a custom shielded HV cable assembly, or a complete co-engineering partnership for your next-generation device, we are ready to discuss your requirements.
FAQ: High Voltage Wire for Medical Device Manufacturing
1. What is the difference between high voltage wire and standard electrical wire?
High voltage wire is engineered with specialized insulation systems — typically silicone rubber, XLPE, or EPR — designed to withstand electric field stresses of 5–30 kV/mm. Standard electrical wire insulation is rated for 600 V or less. HV cable also requires corona-resistant insulation, controlled capacitance, and in most cases electromagnetic shielding, none of which are considerations for standard wire.
2. Why is silicone high voltage cable preferred for medical devices?
Silicone high voltage cable offers a unique combination of properties critical for medical applications: wide temperature tolerance (-60°C to +200°C), exceptional flexibility and flex life, resistance to aging and UV degradation, inherent flame resistance, and biocompatibility. These properties make it the default choice for X-ray equipment, CT scanners, and dental imaging systems where long service life and reliability are paramount.
3. What certifications should a medical cable supplier have?
At minimum, look for UL recognition (UL 3239 or UL 758 for high voltage wire), ISO 9001 quality management certification, and RoHS/REACH compliance documentation. For suppliers dedicated to the medical sector, ISO 13485 certification demonstrates that their quality system is specifically designed for medical device component manufacturing. CE marking documentation should also be available for EU market applications.
4. How do I determine the correct voltage rating for my HV cable?
The cable's rated voltage should exceed your system's maximum operating voltage by a safety margin defined in your applicable standards. For medical devices, a 2:1 safety factor is common — meaning a system operating at 75 kV should use cable rated for at least 150 kV. However, the appropriate safety factor depends on the application, duty cycle, environmental conditions, and regulatory requirements. Consult with your HV cable manufacturer during the design phase.
5. What makes a flexible high voltage cable suitable for dental X-ray applications?
Dental X-ray systems — particularly panoramic and CBCT units — require HV cable that can flex repeatedly as the imaging gantry rotates around the patient. A suitable flexible high voltage cable for these applications should have a minimum dynamic bend radius of 5–10x the cable outer diameter, a flex life exceeding 100,000 cycles, silicone or TPE jacket material, and spiral or braided shielding that does not restrict flexibility.
6. Can high voltage cable be customized for specific OEM applications?
Yes. Experienced HV wire manufacturers offer extensive customization including custom conductor counts and configurations, application-specific connector integration, modified insulation materials and thicknesses, custom jacket colors and markings, and specific length tolerances. OEM high voltage cable programs typically begin with a design review, proceed through prototype validation, and transition to production with full documentation and change control.
7. What testing should be performed on high voltage cable for medical use?
Critical tests include dielectric withstand testing at 2–3x rated voltage, partial discharge testing, insulation resistance measurement, capacitance per unit length, flex life testing, thermal aging, and cold bend testing. For shielded HV cable, shield coverage and transfer impedance measurements should also be performed. All test data should be documented with lot-level traceability.
8. How long does it typically take to develop a custom OEM high voltage cable?
The timeline from initial specification to production-ready cable typically ranges from 8 to 16 weeks, depending on complexity. This includes design review (1–2 weeks), prototype fabrication (3–4 weeks), qualification testing (2–4 weeks), and first article approval (1–2 weeks). Subsequent production orders generally ship in 3–5 weeks. Engaging your cable supplier early in the device design cycle — during concept rather than after design freeze — can significantly shorten this timeline.
9. What is partial discharge, and why does it matter for medical HV cable?
Partial discharge is a localized electrical breakdown within the insulation that does not completely bridge the gap between conductors. Over time, PD erodes insulation material and eventually leads to complete failure. In medical applications, PD is particularly dangerous because it can cause progressive degradation that is undetectable during normal operation but leads to sudden, catastrophic failure. Reputable suppliers test for PD inception voltage and provide cables with PDIV ratings well above the operating voltage.
10. How does shielding in HV cable affect medical imaging quality?
In X-ray and CT imaging systems, electromagnetic emissions from unshielded or poorly shielded high voltage cable can introduce noise into detector signals, resulting in image artifacts. A properly designed shielded HV cable contains these emissions and prevents external EMI from affecting the high voltage circuit. The shield type and coverage percentage directly impact EMI performance. For diagnostic imaging applications, minimum 85% shield coverage is generally recommended.
Post time: May-07-2026
