Choosing an X-ray Push button Switch Mechanical component looks simple—until you’re dealing with real-world constraints like high-duty cycles, strict safety requirements, and the risk of downtime in clinical environments. In X-ray systems, the push button is not “just a button.” It’s a critical human-interface part that affects workflow, reliability, and operator safety.
This guide explains what to evaluate when selecting a mechanical push button switch for X-ray machines, how to compare options from an X-ray Push button Switch Mechanical manufacturer, and what questions to ask before placing an order from an X-ray Push button Switch Mechanical supply partner.
1) Start with the application: exposure workflow and control logic
Many X-ray systems use a two-step operation (often “prep/rotor” then “expose”), while others have single-action triggers depending on the configuration. Confirm whether you need:
- Single-stage push button (one action)
- Two-stage push button (first detent + second detent)
- Maintained vs. momentary action (most exposure triggers are momentary)

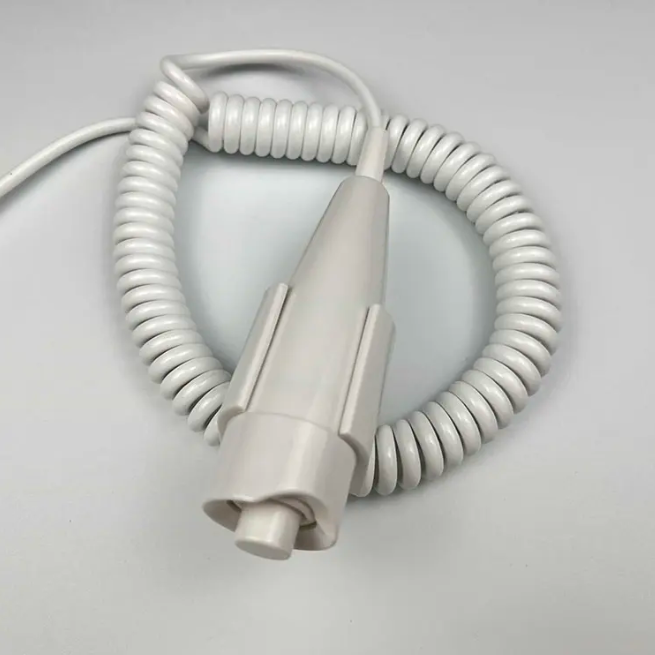

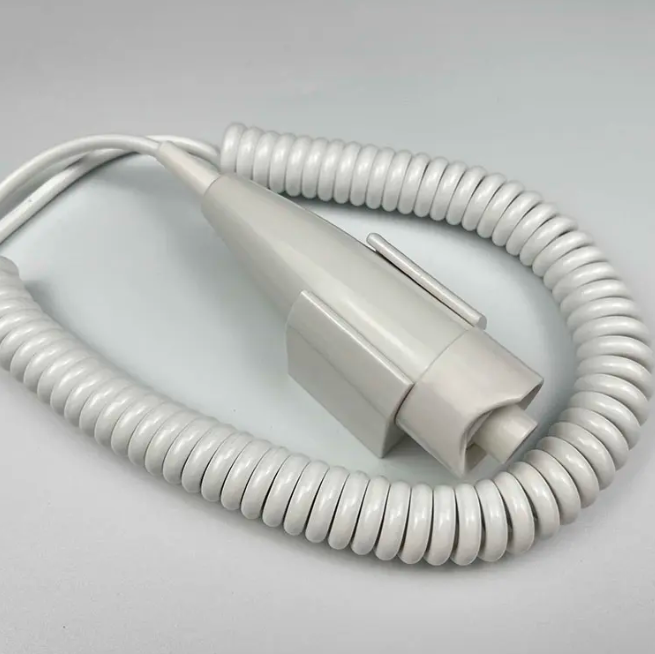

Also document the electrical interface: is the button switching low-voltage control signals, or is it integrated into a hand switch assembly that interfaces with a control console? Matching the contact configuration to your circuit is foundational.
2) Verify electrical ratings and contact materials
A mechanical switch must survive repetitive switching without unstable signals. Key specs to request and confirm:
- Rated voltage/current for your control circuit
- Contact resistance and stability over life
- Contact material (commonly silver alloys; gold plating may be used for low-level signals)
- Dielectric strength/insulation resistance, especially important in medical devices
If your system uses very low currents (logic-level inputs), choose contacts designed for “dry circuit” switching to prevent intermittent triggering.
3) Prioritize lifecycle and duty cycle
In busy imaging departments, exposure controls can be actuated thousands of times. A high-quality X-ray Push button Switch Mechanical should provide a verified mechanical and electrical life rating.
When comparing an X-ray Push button Switch Mechanical manufacturer, ask for:
- Mechanical life cycles (e.g., hundreds of thousands to millions)
- Electrical life cycles at your rated load
- Test conditions (load type, switching frequency, environment)
The cheapest switch often becomes the most expensive when it causes service calls, canceled appointments, or compliance risk.
4) Consider ergonomics and tactile feedback for operator accuracy
Tactile response matters in X-ray workflows. A clear, consistent actuation force reduces operator error and fatigue, especially for handheld controls used repeatedly.
Evaluate:
- Actuation force (too stiff = fatigue; too light = accidental triggers)
- Travel distance and detent clarity (especially for two-stage switches)
- Button size, surface texture, and anti-slip design
- Audible/tactile “click” preferences depending on clinical environment
These details impact usability and perceived system quality—factors that influence purchasing decisions and long-term satisfaction.
5) Environmental and cleaning resistance
X-ray rooms require routine cleaning and may expose components to disinfectants. Confirm:
- Operating temperature and humidity range
- Resistance to common cleaning agents
- Sealing level (if applicable), especially for handheld housings
- Mechanical robustness against drops or cable strain
If you’re sourcing via an X-ray Push button Switch Mechanical supply channel, request material declarations and guidance on chemical compatibility.
6) Compliance, traceability, and quality documentation
Even if the push button switch is a sub-component, medical applications often require documentation and stable manufacturing controls. A credible X-ray Push button Switch Mechanical manufacturer should be able to provide:
- Batch/lot traceability
- Incoming and outgoing QC standards
- Reliability test reports (where applicable)
- Change control process (so specs don’t shift mid-project)
7) Ask the right questions before you buy
Before ordering, confirm these details in writing:
- Is it single-stage or two-stage, momentary or maintained?
- What are the contact form options (NO/NC), and wiring method?
- What is the rated life at your actual load?
- What is the lead time, MOQ, and availability for long-term supply?
- Can the supplier support samples and engineering validation?
Final takeaway
The right mechanical push button switch improves reliability, reduces downtime, and supports safe, repeatable imaging workflows. Focus on workflow fit, contact performance, lifecycle, ergonomics, and documentation—not just price.
