How to Choose the Right X-ray Exposure Hand Switch for Your Equipment

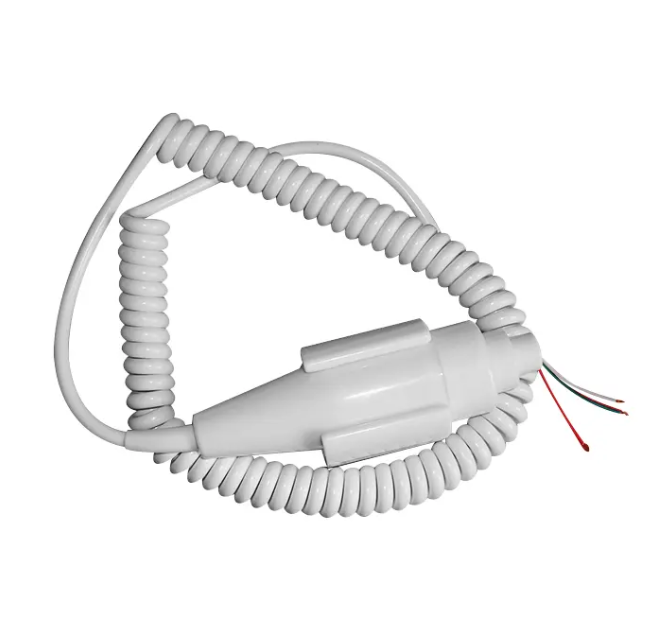

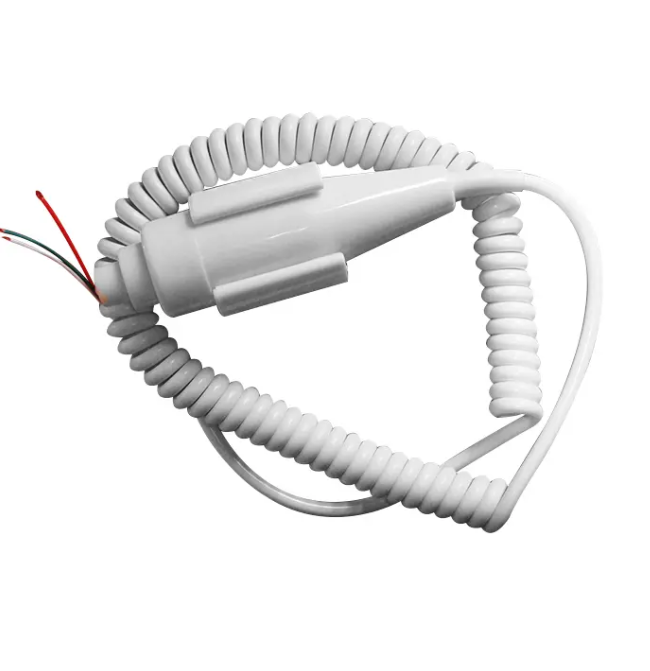

What Is an X-ray Exposure Hand Switch?

An X-ray exposure hand switch (also called an X-ray hand switch, exposure control switch, or X-ray exposure button) is the handheld control device that an operator presses to initiate an X-ray exposure. It is wired directly into the X-ray generator's control circuit and acts as the final command signal that authorizes the system to emit radiation.

Main Functions

At its core, the hand switch performs three jobs:

1. Initiating the exposure sequence — sending an electrical signal to the generator that triggers tube rotation (in rotating anode systems), anode spin-up, and exposure timing.
2. Enforcing safe sequencing — particularly in two-step switches, ensuring the tube is fully prepared (rotor at speed, mA/kV settings stable) before the exposure can actually fire.
3. Providing tactile and sometimes audible feedback — letting the operator know the system has registered the press and is responding correctly.

How the Exposure Triggering Process Works

In a typical two-step exposure hand switch:

• Step 1 (Prep): A light partial press activates the "Prep" microswitch. This tells the generator to begin rotor spin-up and stabilize tube current and voltage.
• Step 2 (Expose): A full press depresses the second internal microswitch, which signals the generator to actually fire the X-ray exposure, typically within milliseconds of rotor readiness.

This staged approach exists for a reason: firing an X-ray tube before the rotating anode reaches full speed can cause localized heating, focal spot damage, and shortened tube life. The hand switch is effectively a safety interlock as much as a trigger.

Relationship With the X-ray Generator

The hand switch communicates with the generator's control board through a wired cable (commonly 3-core or 4-core, depending on whether prep and expose signals are separated). Voltage levels are low (signal-level, not high voltage), but the timing and contact integrity of the microswitches inside the housing are critical — any bounce, delay, or intermittent contact translates directly into inconsistent exposures.

Importance in the Imaging Workflow

Because the hand switch is touched on every single exposure, its responsiveness shapes the perceived reliability of the entire machine. A radiographer who has to "fight" a sluggish switch — pressing harder, holding longer, or repeating presses — loses confidence in the equipment, slows down patient throughput, and may inadvertently introduce motion artifacts from inconsistent timing.

Why Choosing the Right X-ray Hand Switch Matters

It's tempting to view the hand switch as a minor accessory next to a six-figure X-ray generator or tube. In practice, it has an outsized influence on day-to-day operations.

Operator Safety

A reliable hand switch supports safe radiation practice by ensuring exposures occur exactly when intended — no premature firing, no double exposures from contact bounce, and no failure to release that could extend exposure time beyond what was set. Radiation safety frameworks such as those referenced by the IAEA and national regulatory bodies place strong emphasis on dose control devices functioning predictably; the hand switch is part of that control chain.

Exposure Accuracy

Inconsistent switch timing can lead to exposures triggering at the wrong moment relative to breath-hold instructions or patient positioning, increasing the likelihood of retakes.

Equipment Longevity

A poorly designed switch that allows exposure to fire before the anode reaches proper rotational speed accelerates tube wear. Conversely, a well-engineered two-step switch protects the investment in the X-ray tube itself — often the single most expensive component in the system.

Reduced Downtime

Service engineers commonly report that hand switch failures — frayed cables, sticking buttons, corroded contacts — are among the more frequent service calls on aging X-ray systems, precisely because the switch undergoes constant mechanical stress while many other components are static.

Compliance With Medical Standards

Hand switches used in CE-marked or FDA-cleared systems need to meet relevant electrical safety and EMC requirements under frameworks such as IEC 60601-1 (general requirements for basic safety and essential performance of medical electrical equipment) and IEC 60601-2-54 for X-ray equipment specifically. Sourcing switches that are not built or tested to these expectations introduces regulatory risk for OEMs and distributors.

Improved Workflow Efficiency

In high-volume departments, every fraction of a second of hesitation at the switch adds up. A crisp, predictable actuation supports faster patient throughput, particularly in busy dental clinics and mobile DR rounds where speed matters.

Types of X-ray Exposure Hand Switches

Not all hand switches are built the same way, and the right choice depends heavily on the equipment platform and clinical workflow.

Single-Step Exposure Switch

A single-step switch fires the exposure with one press — there is no separate "prep" stage triggered manually by the operator (prep may still happen internally and quickly, but it isn't operator-controlled in two distinct phases).

Advantages:

• Simpler design with fewer internal components
• Faster for quick, low-dose exposures (common in dental intraoral units)
• Lower cost and simpler wiring (often 3-core)

Disadvantages:

• Less control over exposure timing relative to tube readiness
• Generally not used on higher-power systems where rotor spin-up time matters

Applications:

• Dental intraoral X-ray units
• Some portable and low-power X-ray systems

Two-Step Exposure Switch

This is the standard for most medical radiography systems, particularly those using rotating anode tubes.

Advantages:

• Separates "Prep" and "Expose" for safer, more controlled triggering
• Reduces tube wear by ensuring rotor speed is reached before firing
• Gives the operator tactile confirmation at each stage

Disadvantages:

• More complex internal wiring (often 4-core)
• Slightly higher cost than single-step designs

Applications:

• General radiography (DR/CR) rooms
• Mobile DR systems
• C-arm imaging systems
• Most hospital-grade medical X-ray machines

Mechanical Hand Switches

Mechanical switches use physical contact mechanisms — springs, levers, and metal contacts — to complete the circuit.

Advantages:

• Simple, well-understood technology
• Generally inexpensive to manufacture
• Easy to repair in the field in some designs

Disadvantages:

• More prone to contact wear, oxidation, and bounce over high cycle counts
• Performance can degrade gradually rather than failing cleanly, making faults harder to diagnose

Omron Microswitch Hand Switches

Many premium hand switches use Omron microswitches as the internal triggering mechanism rather than generic mechanical contacts.

Advantages:

• Extremely high mechanical and electrical life ratings (often rated for millions of cycles)
• Consistent, repeatable actuation force and travel distance
• Strong resistance to contact bounce, supporting accurate timing
• Well-documented industrial-grade reliability with global supply availability

Disadvantages:

• Slightly higher unit cost than generic microswitches
• Sourcing genuine Omron components (versus counterfeit or rebranded parts) requires supplier diligence

Why Omron Microswitches Are Widely Used in Medical Imaging

Omron has built a long track record in industrial and medical-grade switching components, and its microswitches are widely specified in radiography hand switches for a simple reason: medical equipment manufacturers need a switching mechanism that performs identically on press number 1 and press number 2,000,000. For a component that gets touched dozens of times a day across a multi-year equipment lifecycle, that consistency translates directly into fewer service calls and more predictable exposure behavior. This is one reason products like the X-ray Exposure Hand Switch Omron C2U HS-01 are specified by OEMs who need long-term reliability guarantees for hospital-grade equipment.

10 Key Factors to Consider Before Buying

Choosing the right hand switch isn't just about price per unit — it's about matching technical specifications to your equipment platform and use case. Here are ten factors worth evaluating in detail.

1. Compatibility With X-ray Equipment

Not every hand switch is plug-and-play across generator brands. Pin configuration, signal voltage, and connector type need to match the generator's control board specification. A switch designed for one generator manufacturer's signaling logic may not be compatible with another's, even if the connector physically fits.

Practical example: A distributor stocking replacement switches for multiple OEM brands of mobile DR units should confirm pin-out diagrams against each generator model rather than assuming a universal fit.

2. Connector Type

Common connector types include circular DIN-style connectors, locking bayonet connectors, and custom OEM connectors. The connector should provide a secure, vibration-resistant connection, particularly for mobile and portable systems that get moved frequently between rooms or wards.

3. Cable Length

Cable length needs to match the physical layout of the room and equipment. Too short, and operators are forced to stand closer to the radiation source than ideal; too long, and excess cable becomes a tripping hazard or gets caught in wheeled equipment.

Practical example: C-arm systems used in surgical suites often require longer cable runs (commonly 3–5 meters) to give the operator distance and positioning flexibility around the operating table.

4. Number of Cores (3-Core vs 4-Core)

• 3-core switches typically support single-step exposure signaling.
• 4-core switches support two-step prep/expose signaling, with separate conductors for each stage.

Choosing the wrong core configuration for your generator's control logic can mean the switch simply won't function correctly, or will skip the prep stage entirely — a real concern for tube longevity.

5. Mechanical Life Expectancy

This refers to how many physical press cycles the switch can withstand before mechanical failure (button wear, spring fatigue, housing cracking). High-quality microswitch-based designs are often rated for several million cycles, while lower-grade mechanical switches may degrade noticeably after a few hundred thousand.

6. Electrical Life Expectancy

Separate from mechanical durability, electrical life measures how many cycles the switch can complete while maintaining reliable electrical contact under load, without contact degradation, arcing damage, or resistance increase.

7. Switch Response Speed

Response speed affects how tightly the exposure timing matches the operator's intent. Switches with inconsistent or delayed actuation can introduce subtle timing errors, which matter more in fast-moving environments like pediatric or trauma imaging where breath-hold windows are short.

8. Housing Material Durability

The external housing needs to withstand daily handling, occasional drops, and routine disinfection. Medical-grade ABS or similar impact-resistant polymers are common, and the housing should tolerate repeated wipe-down with hospital-grade disinfectants without cracking or discoloring.

9. Waterproof and Dustproof Protection

An IP rating (such as IP54 or higher) indicates resistance to dust ingress and splashes — relevant in clinical environments where switches are frequently cleaned with liquid disinfectants and may be exposed to spills.

10. OEM Customization Requirements

For equipment manufacturers and large distributors, the ability to customize cable length, connector type, branding, and even switch housing color or labeling matters for integration into a finished product line. Suppliers offering OEM customization — rather than fixed catalog-only parts — give manufacturers more flexibility to match their existing generator interfaces, as seen in configurable options like the X-ray Push Button Switch HS-02.

Common Problems Caused by Low-Quality X-ray Exposure Switches

Cutting corners on hand switch quality tends to surface as a pattern of recurring, frustrating issues rather than a single dramatic failure.

Missed Exposures

Worn or low-grade microswitches can fail to register a press cleanly, requiring the operator to press again — sometimes mid-positioning, increasing the risk of motion artifact or repositioning the patient unnecessarily.

Delayed Triggering

A lag between the press and the actual exposure signal undermines the operator's ability to time the shot with patient breath-hold or movement cues.

Switch Sticking

Mechanical wear or debris ingress can cause the button to stick in a partially pressed position, which is particularly problematic on two-step switches where this can stall the prep stage or fail to release properly.

Cable Failures

Repeated flexing at the strain relief point — where the cable exits the switch housing — is one of the most common failure points. Cheap cable jacketing or inadequate strain relief leads to intermittent connections long before the switch itself wears out.

Increased Maintenance Costs

Each of the above issues generates service calls. For hospitals and clinics managing multiple imaging rooms, recurring hand switch failures add up in technician time and replacement part costs far beyond the original price difference between a budget switch and a quality one.

Unexpected System Downtime

An imaging room that's offline for a switch replacement is a room generating zero scans and zero revenue, while patients are rescheduled or redirected elsewhere.

Troubleshooting recommendations:

• Inspect the cable strain relief point regularly for cracking or fraying
• Test prep/expose timing periodically against generator diagnostics
• Replace switches proactively based on cycle-count estimates rather than waiting for failure, especially in high-volume rooms
• Keep a small inventory of compatible replacement switches on hand for high-throughput departments to minimize downtime

Omron Microswitch vs Standard Microswitch: Which Is Better?

Conclusion: For hospital-grade and OEM medical imaging equipment, where the hand switch will be used thousands of times over a multi-year service life, Omron microswitches generally offer a better total cost of ownership despite a higher initial unit price. Standard microswitches can be a reasonable choice for lower-budget builds, training equipment, or applications with lower usage frequency, but they tend to introduce more recurring maintenance overhead in busy clinical environments.

How to Evaluate an X-ray Hand Switch Supplier

The switch itself is only half the equation — the supplier behind it determines whether you get consistent quality across thousands of units and reliable support over years of equipment service life.

Certifications

Look for suppliers who can document compliance with relevant standards, such as ISO 13485 (quality management systems for medical devices) and component-level testing aligned with IEC 60601 series requirements. Certification documentation should be available on request, not just claimed in marketing copy.

Manufacturing Experience

Suppliers with deep, specific experience in X-ray accessory components — rather than general electronics manufacturers who occasionally produce switches — tend to better understand the nuances of prep/expose timing, medical-grade housing requirements, and long-term cycle durability testing.

Quality Control Process

Ask about incoming component inspection (especially for sourced microswitches like Omron parts, where counterfeit components are a known industry risk), in-process testing, and final functional testing before shipment. Suppliers who test actuation force, cycle life sampling, and electrical continuity as standard practice are demonstrating real quality discipline, not just assembly.

OEM Capabilities

For manufacturers and distributors needing custom cable lengths, connector types, or private-label branding, confirm the supplier has genuine OEM production capability — tooling, engineering support, and minimum order flexibility — rather than only offering fixed catalog SKUs.

Export Experience

A supplier with established export history understands documentation requirements, packaging for international freight, and compliance paperwork (CE declarations, RoHS compliance, etc.) that streamline customs clearance and regulatory acceptance in your target market.

After-Sales Support

Ask directly: What is the warranty period? How are defective unit claims handled? Is there responsive technical support for integration questions? Suppliers willing to commit to clear after-sales terms in writing are signaling confidence in their own product quality.

Experienced manufacturers who combine these capabilities tend to offer more reliable long-term supply relationships — which matters enormously for OEMs building products with multi-year production runs, since switching suppliers mid-production introduces compatibility and qualification headaches. Many buyers also evaluate complementary components from the same supplier, such as a Medical X-ray Collimator, a Dental X-ray Tube, or a High Voltage Cable, to consolidate sourcing and simplify quality audits across their X-ray accessory supply chain.

Frequently Asked Questions

What is an X-ray exposure hand switch?
It's the handheld control device an operator presses to trigger an X-ray exposure, wired directly into the generator's control circuit to initiate prep and expose signaling.

How long does an X-ray hand switch last?
This depends heavily on switch quality. Standard mechanical switches may last a few hundred thousand cycles, while premium designs using Omron microswitches can be rated for several million cycles of reliable use.

Can I replace an X-ray hand switch myself?
Basic plug-in replacement switches can sometimes be swapped by a trained biomedical technician, but compatibility, pin configuration, and signal logic must match the generator exactly. For hardwired or system-integrated switches, a qualified service engineer should perform the replacement.

What is the difference between a one-step and two-step switch?
A one-step switch fires the exposure with a single press. A two-step switch separates the process into a "Prep" stage (rotor spin-up and parameter stabilization) and an "Expose" stage, which protects the X-ray tube and improves exposure accuracy.

Why do medical systems use Omron microswitches?
Because Omron microswitches offer high mechanical and electrical life ratings, consistent actuation, and strong resistance to contact bounce — qualities that matter for components pressed thousands of times across a multi-year equipment lifecycle.

How do I know if my exposure switch is failing?
Common warning signs include delayed or missed exposures, a sticking or unresponsive button, inconsistent prep-to-expose timing, or visible cable fraying near the strain relief point.

Are dental and medical X-ray hand switches interchangeable?
Not generally. Dental units often use simpler single-step switches suited to lower-power, shorter exposures, while medical radiography systems typically require two-step switches designed for rotating anode tube protection. Connector types and signal logic also frequently differ between platforms.

What certifications should an X-ray hand switch have?
Look for compliance with relevant medical electrical equipment standards such as the IEC 60601 series, along with manufacturer quality system certification like ISO 13485, and RoHS compliance for component materials.

What's the typical cable length for an X-ray hand switch?
Cable lengths vary by application — shorter cables (1–2 meters) suit fixed-room radiography setups, while C-arm and mobile systems often require longer cables (3–5 meters or more) for operator positioning flexibility.

Can hand switches be customized for OEM production?
Yes — reputable suppliers typically offer customization of cable length, connector type, housing branding, and core configuration to match specific generator platforms for OEM manufacturers.

Conclusion

Choosing the right X-ray exposure hand switch isn't a minor procurement detail — it's a decision that touches operator safety, exposure accuracy, tube longevity, and day-to-day equipment uptime. The right switch type (single-step or two-step), the right core configuration, a durable housing, and a dependable internal switching mechanism like an Omron microswitch all contribute to a component that performs consistently over years of heavy use.

Equally important is the supplier behind the part. Certifications, documented quality control, genuine OEM customization capability, and clear after-sales support separate suppliers who can support a long-term production relationship from those who can only fulfill a one-time order.
