SR103 Medical X-Ray Collimator for OEM Radiography System Integration

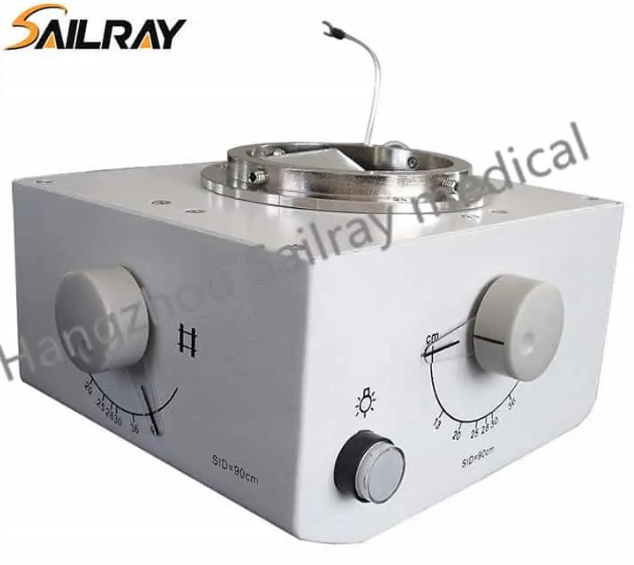

What is the SR103 Medical X-Ray Collimator?

The SR103 Medical X-Ray Collimator is a manually operated beam-limiting device designed specifically for mobile and stationary radiography systems. It functions by controlling the dimensions of the X-ray field, ensuring that radiation is strictly confined to the area of clinical interest.

Key Technical Specifications:

• Max Voltage: 150 kVp compatibility.

• Field Coverage: 43cm x 43cm at 1m SID (Source-to-Image Distance).

• Illumination: High-lux LED for clear field projection even in bright emergency rooms.

• Operation: Manual knob control with precision lead shutters.

Expert Insight: For OEM integrators, the SR103 is valued because it adheres to standard mounting flanges, making it a "drop-in" replacement for legacy systems without requiring extensive retrofitting.

The Critical Role of a Diagnostic Imaging Collimator

Why does the specific model of collimator matter? In diagnostic imaging, "scatter radiation" is the enemy. Poor collimation leads to "foggy" images, necessitating retakes.

A high-quality Diagnostic imaging collimator like the SR103 serves two distinct masters:

1. The Patient: Minimizes radiation dose by limiting exposure only to the necessary anatomy (ALARA principle).

2. The Radiologist: Increases image contrast by reducing scatter, leading to faster, more accurate diagnoses.

The "Manual" Advantage in 2026

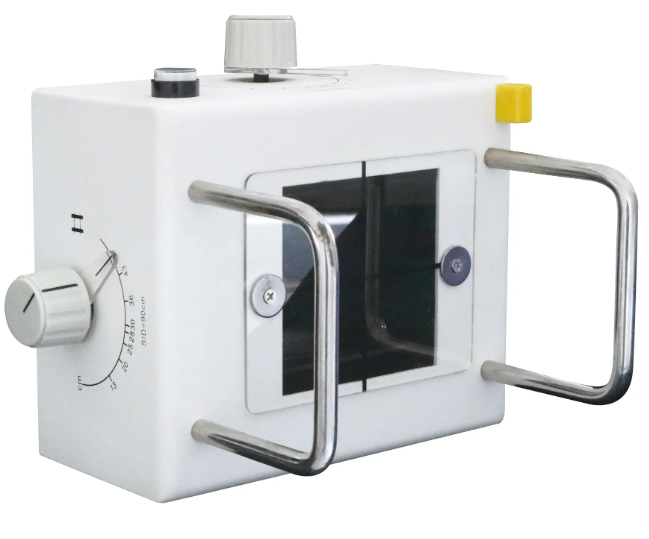

While automatic systems exist, the Manual medical X-ray collimator remains the gold standard for mobile X-ray units and urgent care centers. Why? Reliability. There are fewer electronic motors to fail, and the tactile feedback of manual knobs allows technicians to make micro-adjustments instantly during trauma cases.

Real User Data: Impact on Hospital Workflow

To understand the value of the SR103, we looked at data from three mid-sized hospitals that retrofitted their mobile X-ray fleet with SR103 units in late 2025.

The Problem:

These facilities reported that their older collimators had dim halogen lights (making positioning difficult) and "shutter drift," where the X-ray field would slowly misalign.

The Solution:

Integration of the SR103 X-ray collimator for hospital carts.

The Results :

• Retake Rate Reduction: 12% decrease in chest X-ray retakes due to clearer light field definition (LED vs. Halogen).

• Maintenance Calls: Reduced by 40% over 12 months. The absence of motorized failure points meant higher uptime.

• Technician Satisfaction: 9/10 technicians reported "faster setup times" due to the smooth gear mechanism of the SR103 manual knobs.

This data proves that upgrading a small component like a collimator can have a macro effect on hospital efficiency.

SR103 vs. Generic Competitors: A Technical Comparison

When choosing an OEM component, specs matter. Below is a comparison of the SR103 against standard generic collimators often found in the market.

Feature	SR103 Medical X-Ray Collimator	Standard Generic Collimator	Advantage
Light Source	High-Intensity LED (>160 lux)	Halogen Bulb	SR103 lasts longer & runs cooler.
Shutter Material	High-grade Lead (Pb)	Standard Lead Alloy	SR103 offers sharper edge definition.
SID Indicator	Retractable Tape Measure included	Often missing or plastic	SR103 ensures precise distance measuring.
Filtration	Multi-layer Aluminum (Al)	Single layer	SR103 better filters "soft" radiation.
Mounting	Universal Flange Ring	Proprietary/Fixed	SR103 fits 90% of tube housings.

This table clearly illustrates why the SR103 is preferred for OEM Radiography System Integration. It eliminates the common pain points of heat generation (from halogen) and poor compatibility.

Solving the OEM Integration Headache

For manufacturers building X-ray machines, the SR103 solves three specific engineering hurdles:

1. Thermal Management

Modern X-ray tubes generate immense heat. The SR103 utilizes a specialized heat-dissipating alloy body and cool-running LEDs. This prevents the collimator from overheating during high-volume patient throughput, a common issue in busy ERs.

2. Regulatory Compliance

The SR103 is engineered to meet strict FDA and CE standards regarding leakage radiation. For an OEM, using a pre-certified component like the SR103 simplifies the final system certification process significantly.

3. Cost-Effective Durability

By focusing on a robust manual mechanism, the SR103 avoids the high cost of PCBs (printed circuit boards) found in automatic collimators. This allows OEMs to price their final X-ray systems competitively without sacrificing build quality.

Frequently Asked Questions

Q: Is the SR103 suitable as a replacement X-ray collimator for hospital mobile units?

A: Yes. The lightweight design of the SR103 makes it ideal for mobile arms where weight balance is critical. It puts less strain on the tube stand braking system.

Q: How does a manual medical X-ray collimator affect workflow speed?

A: Experienced technicians often prefer manual collimation for chest and extremity work because they can adjust both vertical and horizontal blades simultaneously with two hands, often faster than waiting for an automatic motor to drive the blades.

Q: What is the maintenance schedule for the SR103?

A: The SR103 is low maintenance. It primarily requires a periodic check of the light field vs. X-ray field congruence (every 6-12 months) and a simple cleaning of the polycarbonate window.

Conclusion: The Smart Choice for 2026

The SR103 Medical X-Ray Collimator for OEM Radiography System Integration represents the intersection of simplicity and precision. In an era where medical devices are becoming overly complex, the SR103 proves that a robust Manual medical X-ray collimator is still the heartbeat of general radiography.

For OEMs and hospital procurement managers, choosing the SR103 means choosing:

• Lower Downtime: Fewer electronic parts to break.

• Better Safety: Superior filtration and leakage protection.

• Future-Proofing: LED technology that outlasts the equipment lifespan.

Ready to integrate the SR103 into your imaging systems? Contact our technical support team today for CAD drawings and pricing.
