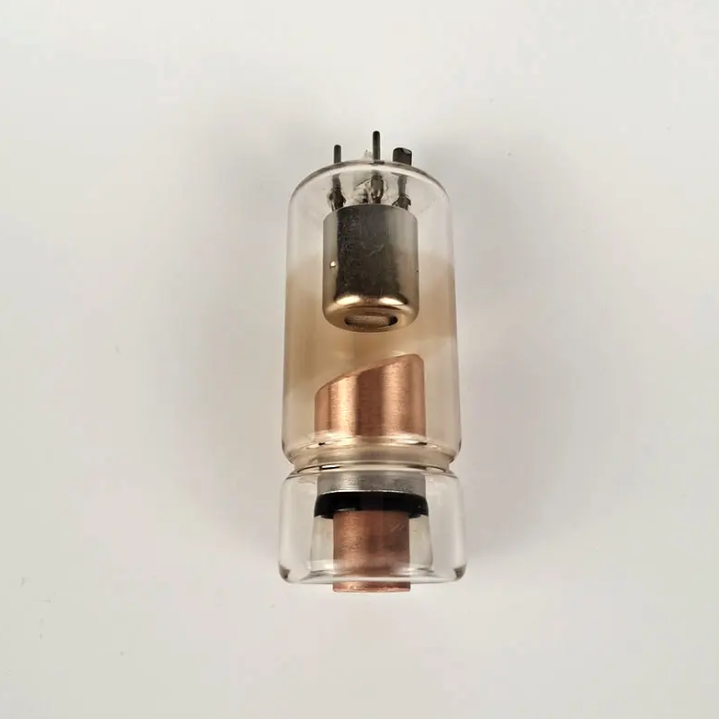

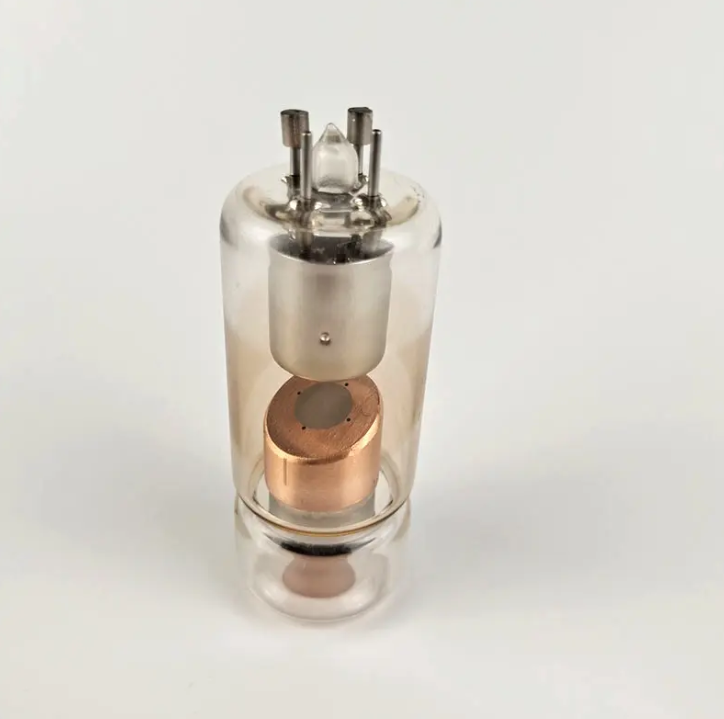

When you’re sourcing a dental X-ray tube, the fastest way to judge quality isn’t a glossy brochure—it’s understanding what’s inside the tube head and how each component affects image clarity, stability, service life, and compliance. Below is a practical breakdown of the key components of a dental X-ray tube, written for procurement teams, OEMs, and dental imaging distributors who need reliable, repeatable performance.
1) Cathode assembly (filament + focusing cup)
The cathode is the “electron source.” A heated tungsten filament releases electrons (thermionic emission). A focusing cup shapes those electrons into a tight, consistent beam aimed at the anode target.
Why buyers care: cathode stability influences exposure consistency, noise level, and long-term drift. Ask about focal spot options (e.g., 0.4/0.7 mm) and filament life data from aging tests.
2) Anode/target (where X-rays are produced)
Electrons strike the anode target—commonly tungsten or tungsten alloy—creating X-rays and a large amount of heat. Many dental systems use a fixed anode design, so target geometry and thermal management are critical.
Why buyers care: target material and angle affect output efficiency and effective focal spot (sharpness). Request heat loading curves, maximum duty cycle guidance, and target manufacturing consistency.
3) Tube envelope & vacuum (glass or metal-ceramic body)
A dental X-ray tube operates under high vacuum so electrons can travel efficiently from cathode to anode. The tube envelope maintains that vacuum and withstands high voltage stress.
Why buyers care: vacuum integrity is directly tied to tube lifespan. Poor vacuum can cause unstable tube current, arcing, or premature failure. Confirm leak-rate control, burn-in process, and traceability by serial/batch.
4) X-ray window & filtration
X-rays exit through the tube window. Built-in (inherent) and added filtration removes low-energy “soft” radiation that increases patient dose without improving diagnostic value.
Why buyers care: filtration impacts dose, image contrast, and regulatory compliance. Verify total filtration equivalence (often specified in mm Al) and compatibility with your target market standards.
5) Insulation & cooling medium (often insulating oil)
High voltage requires robust electrical insulation. Many tube heads use insulating oil or engineered insulation materials to prevent breakdown and transfer heat away from the tube.
Why buyers care: better insulation reduces leakage risk and improves reliability under continuous workflows. Ask about dielectric testing, temperature rise limits, and sealing design to prevent oil leakage over time.
6) Housing, shielding, and high-voltage interfaces
The tube is mounted in a housing that provides mechanical protection and radiation shielding. High-voltage connectors and interfaces must match your generator and mechanical layout.
Why buyers care: interface mismatch creates costly redesigns. Request dimensional drawings, connector specs, leakage radiation test results, and recommended installation torque/handling guidelines.
