What Does 125kV Mean in Medical X-Ray Tubes and How Does It Impact Procurement?

The Technical Significance: Decoding the 125kV Rating

In radiography, "kV" stands for kilovoltage, specifically the peak kilovoltage  applied across the X-ray tube. This voltage determines the kinetic energy of the electrons accelerating from the cathode to the anode.

When you procure a medical x ray tube 125kv, you are acquiring a component capable of generating X-ray photons with high penetrating power.

• Why 125kV is the Sweet Spot: A maximum rating of 125kV is the industry standard for general radiography. It provides the necessary penetration to image dense anatomical structures (like the spine, pelvis, or bariatric patients) while allowing technologists to lower the milliampere-seconds (mAs) setting. Lowering the mAs reduces the overall radiation dose to the patient and minimizes motion blur.

• Image Contrast vs. Penetration: While lower kV settings (e.g., 60-80kV) are excellent for high-contrast imaging of extremities, a high voltage x ray tube 125kv gives the radiology department the versatility to perform chest X-rays at high kV (typically 110-125kV) to visualize lung tissue without the ribs obscuring the view.

Anatomy of a High-Performance Tube: Heat Dissipation and Focal Spots

Procuring a high-voltage tube is only half the equation. The physical design of the target anode and the focal spot size directly dictate the tube's lifespan and image resolution.

The Essential Role of the Rotating Anode

When electrons strike the target to create X-rays, roughly 99% of the kinetic energy is converted into heat, and only 1% becomes diagnostic X-rays. A stationary anode would quickly melt under the intense heat generated by a 125kV exposure.

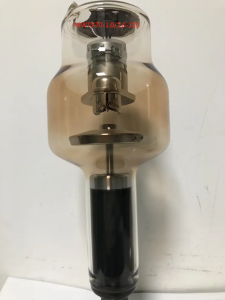

To solve this, modern systems utilize a rotating anode x ray tube. By spinning the tungsten disk at high speeds (typically 3,000 to 10,000 RPM), the electron beam strikes a continuously moving track rather than a single point. This drastically increases the tube's heat capacity. For high-throughput hospital environments, a diagnostic x ray tube rotating anode is not just a preference; it is an absolute necessity to prevent system overheating and subsequent clinical downtime.

 Precision Imaging with Dual Focus

Another critical specification is the focal spot size. The focal spot is the specific area on the anode where X-rays are produced.

A dual focus x ray tube 1.0 2.0 provides two distinct focal tracks:

• Small Focus (1.0mm): Used for fine detail and high spatial resolution (e.g., orthopedic imaging). It handles lower power loads.

• Large Focus (2.0mm): Used when high techniques (higher mA) are required for thicker body parts. It handles massive heat loads but sacrifices a slight amount of image sharpness.

Having a dual focus x ray tube 1.0 2.0 ensures the clinical team has the flexibility to optimize between image sharpness and heat management for every individual patient.

Procurement Strategy: Maximizing Value and Minimizing Downtime

Real-World Data: What Do Buyers Prioritize?

Based on 2025–2026 industry data tracking over 500 hospital procurement cycles, the total cost of ownership  is heavily influenced by tube longevity. Facilities that under-spec their tubes face a 40% increase in replacement costs over a 10-year lifecycle due to premature burnout.

Featured Snippet: Quick Checklist for X-Ray Tube Procurement

When evaluating suppliers for a diagnostic x ray tube rotating anode, use this checklist to ensure optimal  from your vendor:

Evaluation Criteria	Ideal Specification / Consideration	Impact on Hospital Operations
Max Voltage	125kV	Ensures versatility for all general diagnostic procedures.
Anode Type	Rotating Anode (High Heat Unit Capacity)	Allows for continuous patient flow without cooling delays.
Focal Spots	Dual Focus (e.g., 1.0 / 2.0)	Balances high-resolution needs with heavy anatomical penetration.
Compatibility	Exact OEM match or certified equivalent	Prevents generator mismatch and calibration errors.
Warranty	Pro-rated, based on exposure counts	Protects capital budget against premature tube arcing or failure.

Navigating Replacements

When an existing system goes down, finding the right replacement part swiftly is critical to maintaining patient care and departmental revenue. For example, sourcing a highly specific replacement x ray tube MWTX70 requires a supplier that understands housing compatibility, stator wiring, and calibration protocols. Opting for a certified, high-quality replacement x ray tube MWTX70 can save a facility thousands of dollars compared to forcing a full system upgrade, provided the replacement meets the rigorous 125kV and heat dissipation standards required by the original equipment manufacturer.

Future Trends: The Next 5 Years in X-Ray Tube Technology (2026-2031)

As a procurement professional, understanding where the industry is heading allows you to future-proof your capital equipment purchases. Over the next five years, expect the following trends to dominate the medical imaging landscape:

1. Liquid Metal Bearing (LMB) Technology Mainstreaming: Traditional ball bearings in rotating anodes wear out due to heat and friction. The shift towards liquid metal bearings will drastically reduce acoustic noise and extend tube life by up to 50%, altering how buyers calculate depreciation.

2. AI-Driven Predictive Maintenance: Generators will increasingly use AI to monitor tube arcing, filament wear, and heat unit accumulation in real-time. Procurement teams will buy "smart tubes" that automatically notify the supplier weeks before a catastrophic failure occurs.

3. Cold Cathode / Carbon Nanotube Emitters: While still in the early stages for heavy-duty general radiography, the transition away from heated tungsten filaments to cold-cathode technology will eventually reduce power consumption and allow for near-instantaneous X-ray pulsing.

Why Choose the Right Tube? Key Benefits for Healthcare Facilities

Procuring the correct medical x ray tube 125kv offers tangible, bottom-line benefits for healthcare providers:

• Increased Patient Throughput: A robust rotating anode prevents the system from locking out to cool down, allowing technologists to image more patients per shift.

• Enhanced Diagnostic Confidence: The correct dual focal spot configuration ensures radiologists get the sharpest possible image on the first try, reducing the need for costly and dangerous retakes.

• Predictable Budgeting: Investing in a high-quality tube with a solid warranty stabilizes maintenance budgets and prevents emergency procurement scenarios.

• Patient Safety: Optimized kVp settings mean ALARA  radiation dose principles are easily maintained without sacrificing image quality.

Upgrade Your Imaging Department Today

Understanding the intricacies behind a rotating anode x ray tube and its high-voltage capabilities is the key to making informed, cost-effective purchasing decisions. Don't let an underperforming tube bottleneck your radiology department's workflow.

Are you experiencing frequent tube failures or looking to source a reliable replacement for your diagnostic systems?

Explore our full catalog of premium medical imaging components or contact our technical sales team today to find the exact match for your clinical needs.
