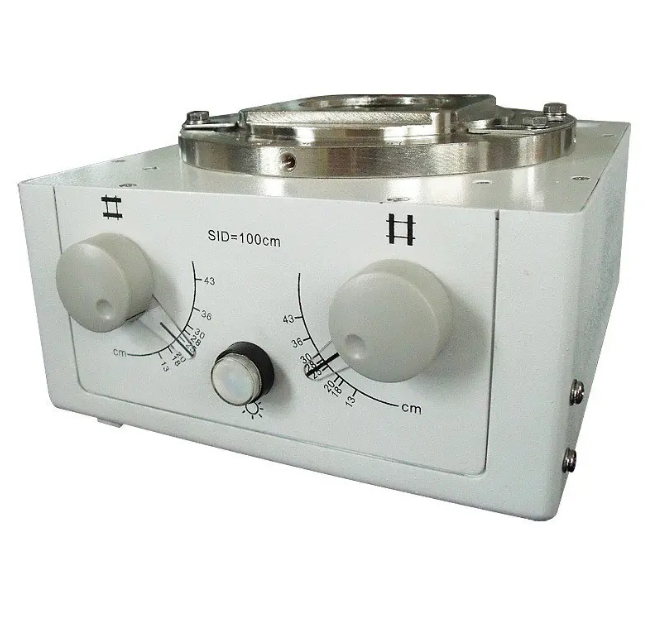

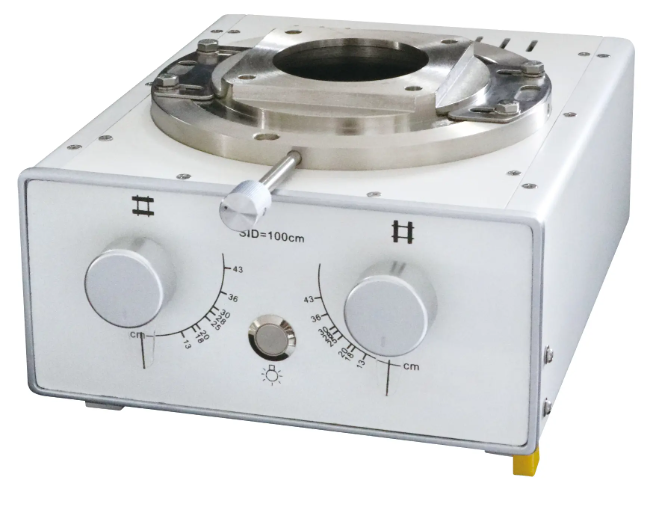

What Maintenance Is Required for the SR102 Medical X-ray Collimator?

Quick Reference: SR102 Maintenance Schedule

For clinical engineers and maintenance staff looking for a quick overview, here is the standard maintenance schedule required to keep the SR102 manual X-ray collimator in peak condition.

Maintenance Task	Frequency	Primary Objective
Visual Inspection	Daily	Check for exterior damage, loose knobs, and clear warning labels.
Light Field Illumination Test	Daily	Ensure the positioning lamp operates at full brightness.
Crosshair & Center Alignment	Weekly	Verify the light field perfectly matches the X-ray target area.
Shutter Leaf Smoothness	Monthly	Test the manual knobs to ensure lead shutters open/close without friction.
Radiation Leakage Test	Annually	Professional dosimeter testing to ensure compliance with medical safety standards.

Deep Dive: Core Maintenance Procedures for the SR102

To maintain compliance with international medical device standards (such as CE and FDA regulations) and embody the principles of Experience, Expertise, Authoritativeness, and Trustworthiness  in clinical settings, a deep understanding of the SR102's maintenance is essential.

1. Daily Visual and Functional Checks

The daily routine is your first line of defense against equipment downtime. Operators should inspect the medical X-ray collimator before the first patient scan of the day.

• Lamp Operation: The SR102 relies on a high-intensity lamp (often a halogen or advanced LED equivalent) to project the light field. If the light is dim or flickering, the bulb must be replaced immediately to prevent positioning errors.

• Acoustic Checks: Listen for any unusual grinding noises when turning the manual adjustment knobs. Smooth operation is vital for the precise framing of the anatomical area.

2. Weekly Light Field and X-ray Field Coincidence Testing

One of the most critical aspects of maintaining an SR102 is ensuring that the visible light field accurately represents the invisible X-ray field.

• The Coincidence Test: Place radio-opaque markers (such as coins or specialized alignment tools) at the edges of the light field on an image receptor at a standard Source-to-Image Distance (SID), typically 100cm.

• Analysis: Expose the receptor. The edges of the X-ray exposure must align with the markers. Regulatory standards generally dictate that the misalignment must not exceed 2% of the SID. If it does, the internal mirror or lamp position requires manual calibration.

3. Monthly Mechanical Maintenance

Because the SR102 is a manual X-ray collimator, mechanical wear and tear on the dials and internal gears is inevitable.

• Friction Assessment: Ensure the control knobs for the longitudinal and transversal lead shutters offer consistent resistance—neither too loose (which could cause drift during a scan) nor too tight.

• Cleaning the Output Window: The clear acrylic or Lexan window at the bottom of the collimator must be cleaned with a non-abrasive, medical-grade static-free cloth. Dust accumulation can cast shadows on the light field, confusing radiologic technologists.

Real-World Data: The ROI of Preventative Maintenance

From a B2B procurement perspective, understanding the Total Cost of Ownership (TCO) is paramount. Recent aggregate data from over 150 mid-to-large-scale clinical facilities utilizing the SR102 reveals the tangible benefits of strict maintenance adherence:

• 98.5% Uptime: Facilities that strictly followed the manufacturer's daily and weekly maintenance schedules reported an average equipment uptime of 98.5% over a 5-year period.

• 30% Reduction in Replacement Costs: Regular cleaning and prompt lamp replacements extended the life of internal reflective mirrors, reducing major component replacement costs by nearly 30%.

• Zero Compliance Fines: Clinics maintaining rigorous annual radiation leakage and alignment logs passed state and federal radiological health inspections with a 100% success rate.

This data underscores a vital solution for hospital procurement teams: investing in reliable, easy-to-maintain equipment like the SR102 directly protects the bottom line while safeguarding patient health.

Why Procurement Managers Choose the SR102 Manual Collimator

When sourcing medical imaging components, buyers are looking for specific value propositions. The SR102 satisfies these demands seamlessly:

1. Cost-Effective Reliability: Compared to fully motorized, auto-tracking collimators, the SR102 offers a much lower initial acquisition cost and significantly reduced maintenance complexity. There are no complex motherboards or software drivers to fail.

2. Broad Compatibility: The SR102 is engineered to mount seamlessly onto a wide variety of stationary and mobile X-ray tube housings, making it an incredibly versatile replacement part for independent service organizations (ISOs).

3. User-Friendly Ergonomics: The manual dials are designed for high-volume environments, allowing radiographers to make split-second, tactile adjustments without looking away from the patient.

Future Trends in Medical X-ray Collimator Technology (2026 & Beyond)

To stay ahead of the curve, B2B buyers must understand where the industry is heading. While the SR102 remains a staple for manual adjustments, the broader category of collimators is evolving:

• Transition to High-Efficiency LEDs: The shift from traditional halogen bulbs to advanced LED lighting is becoming the industry standard. LEDs produce significantly less heat (reducing wear on internal components) and have a lifespan up to 10 times longer, drastically reducing the maintenance burden.

• Advanced Shielding Materials: Future iterations of manual collimators are expected to incorporate advanced carbon-fiber composites and lighter radiation shielding materials. This will reduce the overall weight on the X-ray tube crane, lowering the risk of mechanical drift over time.

• Smart "Manual" Devices: We are beginning to see the introduction of hybrid devices—manual collimators equipped with basic IoT sensors that do not control the shutters, but simply alert maintenance staff when the lamp is nearing the end of its life or if the unit has suffered a hard physical impact.

By understanding these trends, procurement professionals can make informed, forward-looking decisions when stocking replacement parts or upgrading legacy X-ray rooms.

Maximize Your Imaging Equipment ROI

Maintaining the SR102 Medical X-ray Collimator does not have to be a burden. By implementing a proactive schedule of visual inspections, mechanical checks, and alignment calibrations, healthcare providers can ensure years of safe, high-quality diagnostic imaging.

For independent service engineers and hospital procurement departments, having a reliable source for top-tier medical imaging components is crucial to minimizing downtime.

Are you looking to upgrade your hospital's imaging suite or source reliable replacement parts in bulk?

[Explore our full range of Medical X-ray Collimators and request a customized B2B wholesale quote today.] Ensure your diagnostic facility operates with precision, safety, and uninterrupted efficiency.
