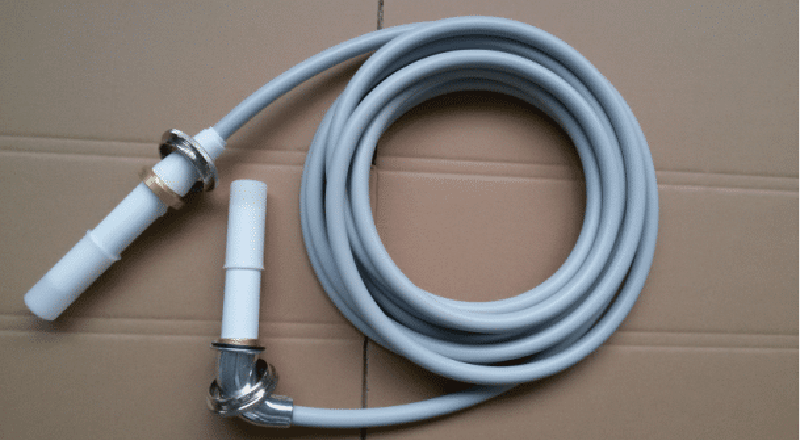

75KVDC High Voltage Cable WBX-Z75-T

Short Description:

High Voltage Cable Assemblies for X-ray Machines is a medical high voltage cable assembly rated up to 100 kVDC, well life (aging) type tested in the harshest conditions.

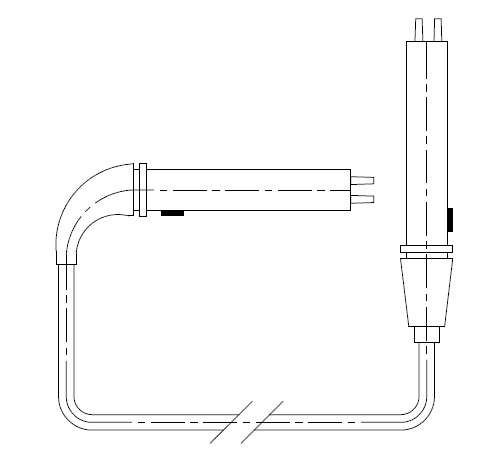

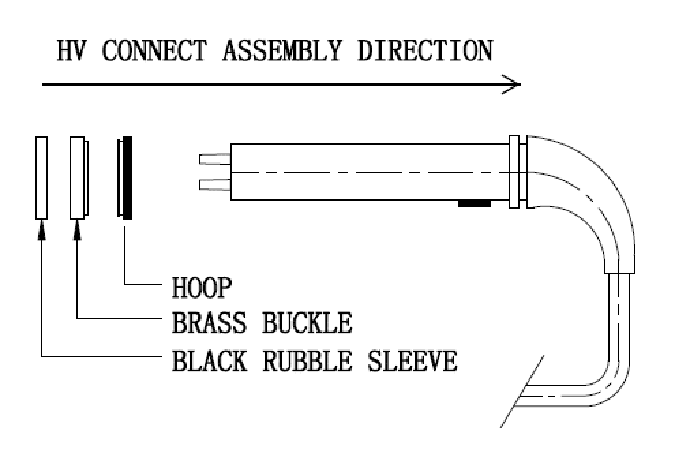

This 3-conductor with 90º Plug high voltage cable’s typical applications are as followings:

1、Medical x-ray equipment like standard x-ray, computer tomography and angiography equipment.

2、Industrial and scientific x-ray or electron beam equipment like electron microscopy and x-ray diffraction equipment.

3、Low power high voltage testing and measuring equipment.

Send email to us

Product Detail

Payment & Shipping Terms:

Product Tags

Technical Data

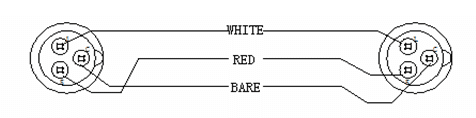

Number of conductor	3
Rated voltage	75kVDC
Routine test voltage (high voltage insulation)	120kVDC/10min
Routine test voltage (conductor insulation)	2kVACrms/1min
Maximum conductor current	1.5mm²:15A
Nominal outside diameter	17.0±0.5mm
Thickness of PVC jacket	1.0mm
Thickness of high voltage insulation	4.5mm
Diameter of core-assembly	4.5mm
Insulation resistance core to shield @20℃	≥1×10¹²Ω·m
Conductor insulation resistance@20℃	≥1×1012Ω·m
Max Conductor resistance bare cond.@20℃	10.5mΩ/m
Max Conductor resistance insul. cond. @20℃	12.2 mΩ/m
Max Shield resistance@20℃	15 .0mΩ/m
Max Capacitance between conductor and shield	165nF/km
Max Capacitance between ins. cond. and bare cord	344nF/km
Max Capacitance between insulated conductors	300nF/km
Cable Min bending radius(static insulation)	40mm
Cable Min bending radius(dynamic installation)	80mm
Operating temperature	-10℃~+70℃
Storage temperature	-40℃~+70℃
Net weight	351kg/km
