Housing for Rotating anode tubes

Housing for Rotating anode tubes

Housing for Rotating anode tubes

Short Description:

Product Name: X-ray tube Housing
Main components: The product consists of tube shell, stator coil, high voltage socket, lead cylinder, sealing plate, sealing ring, ray window, expansion and contraction device, lead bowl, pressure plate, lead window, end cover, cathode bracket, thrust ring screw, etc.
Material of housing coating: Thermosetting Powder Coatings
Color of housing: White
Inner wall composition:Red Insulating paint
Color of the end cover: Silver grey


Product Detail

Payment & Shipping Terms:

Product Tags

Product Description

As an important part of the X-ray tube assembly, the X-ray tube housing provides a lead cylinder for shielding rays for the rotating anode X-ray tube, the stator which drives the rotating anode tube, encloses the rotating anode X-ray tube, and is equipped with high-voltage cables interface, insulating oil, expanders that prevent excessive pressure due to temperature changes and oil volume changes, sealed metal casings, etc. We provide x-ray tube housing which is suitable for tube assemblies model HXD51-20, 40/125, MWHX7010A, H1074X etc.

Short View

※Product Name: X-ray tube Housing
※Main components: The product consists of tube shell, stator coil, high voltage socket, lead cylinder, sealing plate, sealing ring, ray window, expansion and contraction device, lead bowl, pressure plate, lead window, end cover, cathode bracket, thrust ring screw, etc.
※Material of housing coating: Thermosetting Powder Coatings
※Color of housing: White
※Inner wall composition:Red Insulating paint
※Color of the end cover: Silver grey

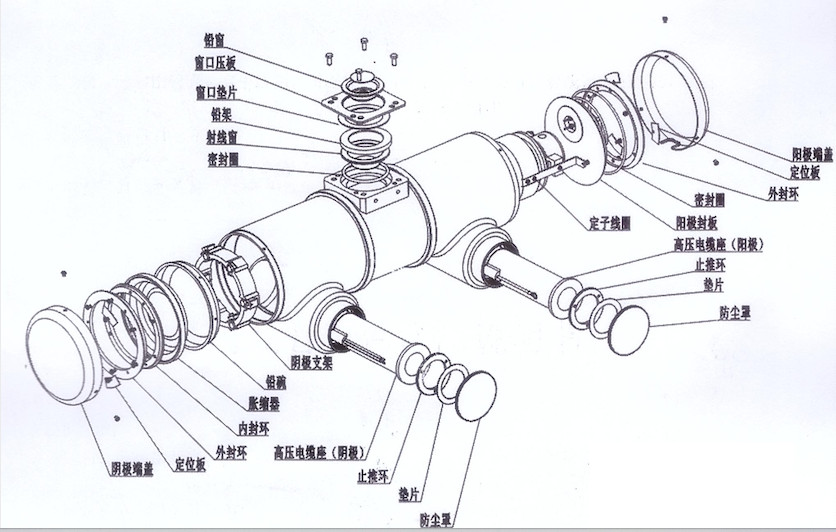

Housing components

details

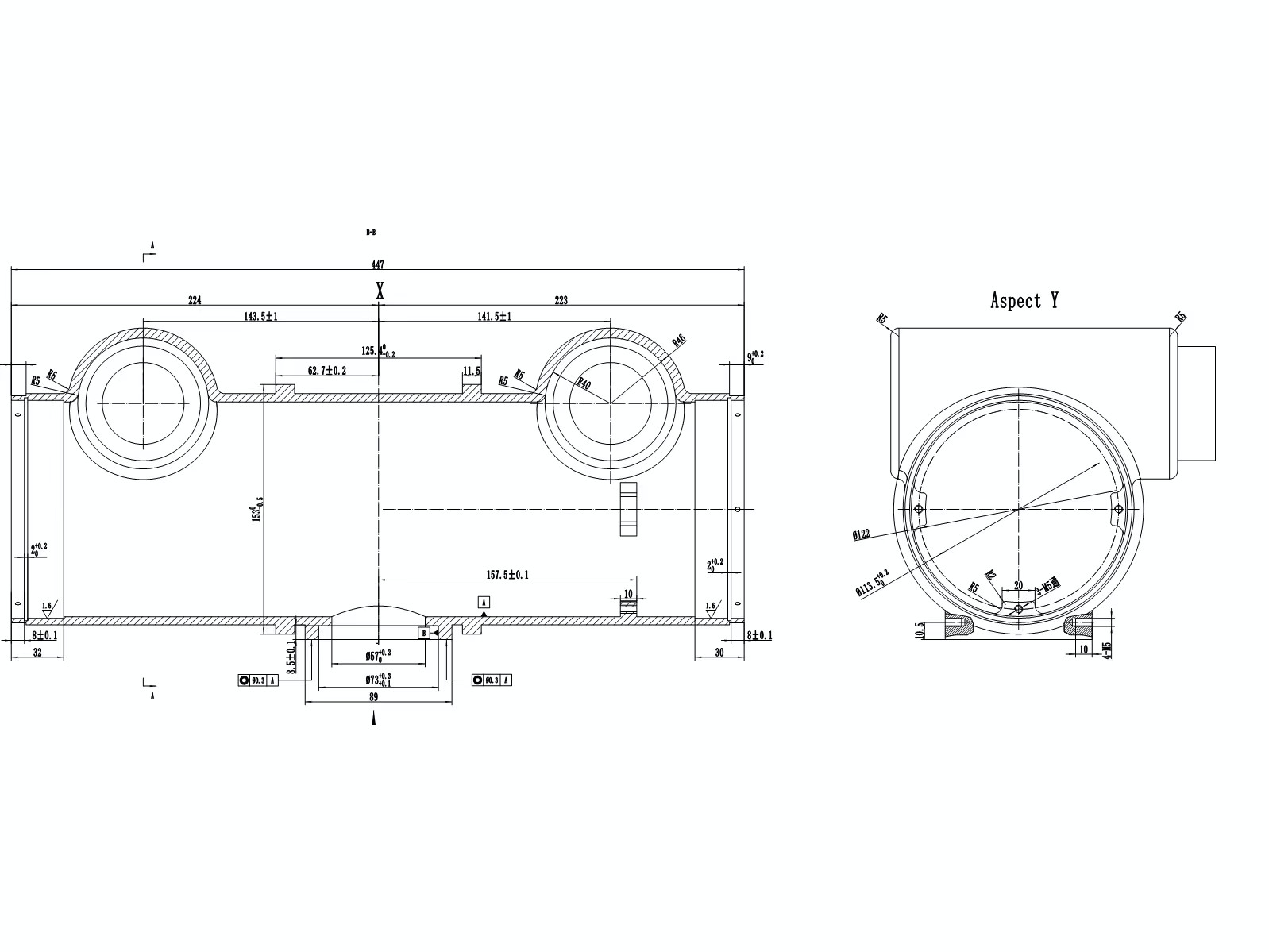

Outside dimension

details

  • Previous:
  • Next:

  • Minimum Order Quantity: 1pc

    Price: Negotiation

    Packaging Details: 100pcs per carton or customized according to the quantity

    Delivery Time: 1~2 weeks according to the quantity

    Payment Terms: 100% T/T in advance or WESTERN UNION

    Supply Ability: 1000pcs/ month
