Mammography High Voltage Cable WBX-Z60-T02

Mammography High Voltage Cable WBX-Z60-T02

Mammography High Voltage Cable WBX-Z60-T02

Short Description:

High-voltage cable assemblies consist of high-voltage cables and plugs
High-voltage cables consist of the following main components:
a) Conductor;
b) insulating layer;
c) shielding layer;
d) Sheath.
The plug shall consist of the following main parts:
a) Fasteners;
b) plug body;
c) pin


Product Detail

Payment & Shipping Terms:

Product Tags

The application of mammography x-rays equipment HV cables assembly

This high voltage cable’s typical applications are as followings:
1、Mammography and other scientific X-ray, electron beam or laser
equipment
2、Low power high voltage testing and measuring equipment.

The features of mammography x-rays equipment HV cables assembly

1. High flexibility
2. Small diameter
3. 95% braided shielding density
4. The rated voltage of the cable is 60kVDC

Technical Data of HV Cable

Number of conductor 1
Rated voltage 60kVDC
Routine test voltage (high voltage insulation) 90kVDC/10min
Rated conductor current 31A
Nominal outside diameter 12.4mm±0.5mm
Thickness of PVC jacket 1.0mm
Thickness of high voltage insulation 2.9mm
Diameter of core-assembly 1.8mm
Insulation resistance core to shield @20℃ ≥1×1012Ω·m
DC resistance of conductor at 20℃ 8.9±0.45Ω /km
Shield resistance@20℃ 8.0±0.45Ω /km
Max Capacitance between conductor and shield 120±12pF/m
Cable Min bending radius(static insulation) 22mm
Cable Min bending radius(dynamic installation) 45mm
Operating temperature -10℃~+70℃
Storage temperature -40℃~+70℃
Net weight 206.8kg/km

Technical Data of HV Cable Plug

Number of conductor 1
Rated voltage 60kVDC
Routine test voltage( between pin and ground) 75kVDC/15min
Maximum rated current 25A
Maximum continuous working temperature of plug shell 100℃

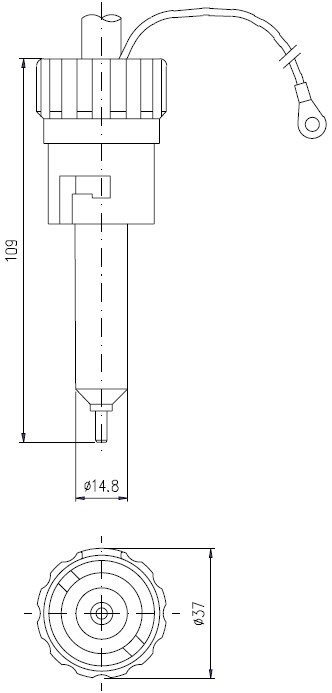

The schematic diagram of the HV cable plug assembly

details
