Application of X-ray tube in security inspection X-ray machine

Application of X-ray tube in security inspection X-ray machine

X-ray technology has become an essential tool in the security industry. Security X-ray machines provide a non-intrusive method to detect hidden items or hazardous materials in luggage, packages and containers. At the heart of a security x-ray machine is the x-ray tube, which produces the high-energy x-rays used in scanning.

Security x-ray machine

X-ray tubes are used in a wide variety of applications in radiography, medical imaging, materials science, and industrial analysis. However, in the security industry, X-ray tubes play a vital role in ensuring public safety, preventing terrorism and enhancing security.

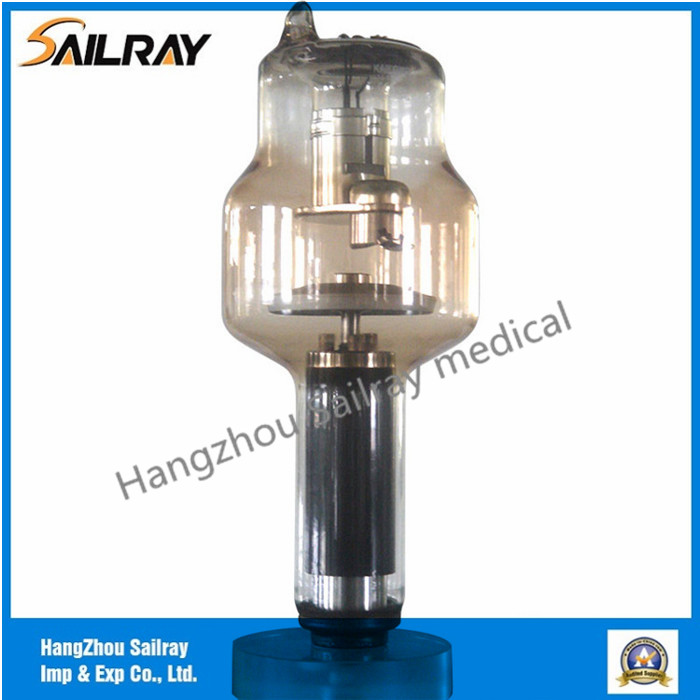

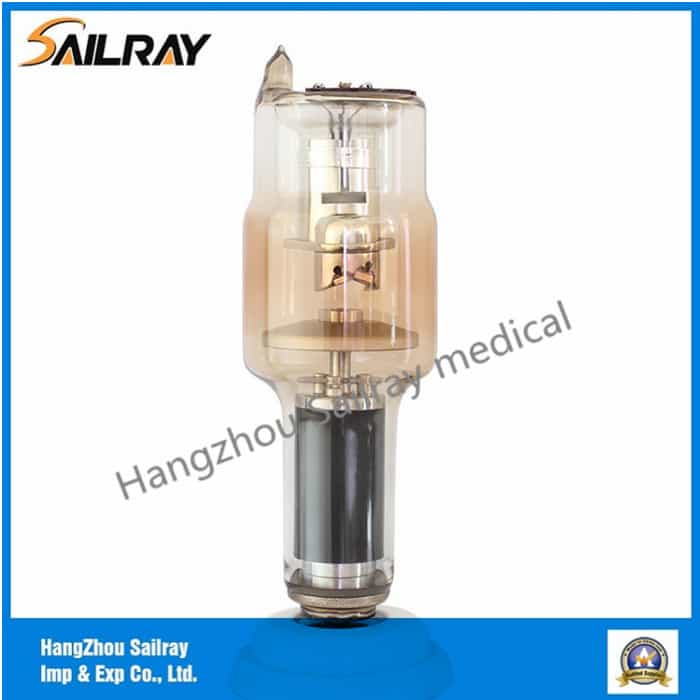

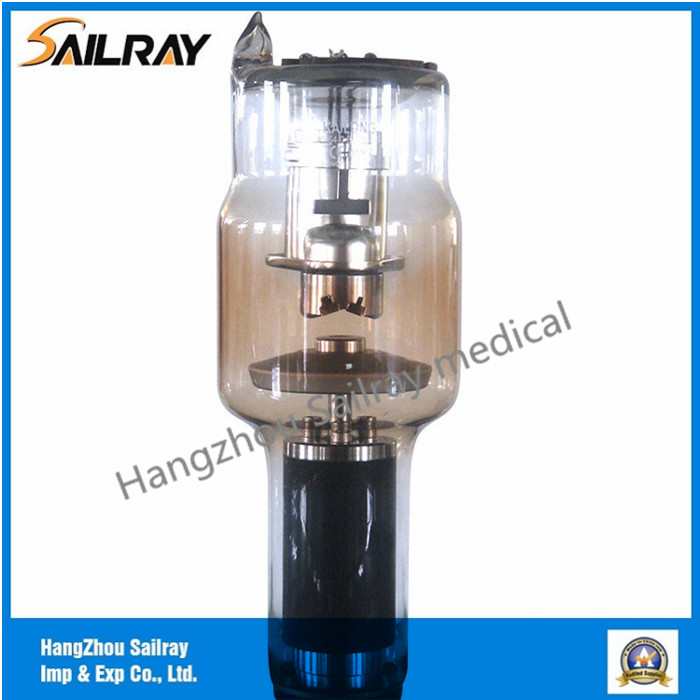

An X-ray tube is an electronic device that converts electrical energy into high-energy X-rays for imaging. The tube consists of a cathode and an anode enclosed in a vacuum chamber. When current passes through the cathode, it releases a stream of electrons, which are accelerated to the anode. The electrons collide with the anode, generating X-rays that are directed at the object being analyzed.

Safety X-ray machines use two types of X-ray tubes: metal ceramic (MC) tubes and rotating anode (RA) tubes. MC tube is most commonly used because it is low cost, durable and reliable. It produces a steady, low-intensity X-ray beam ideal for imaging objects of low-density materials. On the other hand, RA tubes are more powerful than MC tubes and produce a higher intensity X-ray beam. Suitable for scanning objects with high-density materials such as metal.

The performance of an X-ray tube in a safety X-ray machine is affected by several factors, including tube voltage, tube current, and exposure time. The tube voltage determines the energy of the X-rays generated, while the tube current controls the amount of X-rays generated per unit time. Exposure time determines the duration of X-rays directed at the object being analyzed.

Some security X-ray machines use dual-energy X-ray imaging technology, which uses two X-ray tubes with different energy levels. One tube produces low-energy X-rays, while the other produces high-energy X-rays. The resulting image displays different colors that indicate the density and atomic number of each object in the scanned image. The technology allows operators to differentiate between organic and inorganic materials, enhancing the detection of hidden objects.

In summary, X-ray tubes are the backbone of a security X-ray machine, helping to identify hidden objects, explosives, and hazardous materials. They provide a fast, efficient and non-intrusive way to scan luggage, packages and containers. Without X-ray tubes, security inspections would be a difficult and time-consuming process, making maintaining public safety and preventing terrorism challenging. Therefore, the development of X-ray tube technology remains crucial to the future of security X-ray machines.

Post time: Mar-15-2023
