Common Types of X-ray Tubes Used in CT Scanners and DR Systems

What Is a Medical X-ray Tube?

At its core, a medical X-ray tube is a highly specialized energy converter. It operates by accelerating electrons from a heated cathode and crashing them into a dense metal anode (usually tungsten) within a vacuum-sealed glass or metal envelope.

This sudden deceleration of electrons produces X-ray photons. However, the process is incredibly inefficient. Approximately 99% of the kinetic energy is converted into pure heat, while only 1% becomes usable X-ray radiation.

Because of this extreme heat generation, the design and thermal management of a diagnostic X-ray tube are critical. The materials used, the cooling mechanisms in place, and the internal structure dictate how well the tube will perform in a clinical setting.

In a B2B context, the durability of a medical X-ray tube directly translates to your facility's return on investment. A high-quality tube guarantees stable patient throughput, while a low-quality component guarantees workflow disruption and lost revenue.

Key Differences Between CT and DR X-ray Tubes

While the fundamental physics of X-ray generation remain the same, the engineering requirements for different imaging modalities vary drastically. The demands placed on an X-ray tube for CT scanner applications are vastly different from those of an X-ray tube for DR system applications.

A CT (Computed Tomography) scanner operates by rotating the X-ray tube around the patient at incredibly high speeds—often completing a full rotation in less than 0.3 seconds. This requires continuous, high-intensity radiation exposures, generating phenomenal amounts of heat and subjecting the tube to massive G-forces.

In contrast, an X-ray tube for DR system usage (general radiography) typically fires in short, pulsed bursts. The tube remains stationary on an overhead crane or floor mount during the exposure. While high power is still required to penetrate dense anatomy, the thermal accumulation is generally much lower than in CT.

Here is a detailed breakdown of the differences to help procurement teams understand the engineering behind the cost:

Feature/Specification	X-ray Tube for CT Scanner	X-ray Tube for DR System
Exposure Type	Continuous, long-duration scans	Short, pulsed, momentary bursts
Heat Capacity	Extremely high (often 5 to 30+ Mega Heat Units)	Moderate (typically 140k to 600k Heat Units)
Anode Design	Large, heavy rotating anode (often liquid metal bearing)	Standard rotating anode (ball bearings)
Cooling System	Active oil cooling with external heat exchangers/chillers	Passive oil cooling or basic internal fans
G-Force Resistance	Must withstand up to 30-50 Gs of rotational force	Minimal G-force resistance required
Typical Cost Profile	High capital investment ($50,000 - $200,000+)	Moderate replacement cost ($5,000 - $20,000)
Average Lifespan	Counted in "scan seconds" or slices (typically 1-3 years)	Counted in total exposures (often 5-10+ years)

Common Types of X-ray Tubes

To make an informed purchasing decision, medical service engineers and procurement teams must understand the specific architecture of the tubes they are replacing.

Below are the most common configurations found in the modern medical imaging landscape.

Rotating Anode X-ray Tubes

The rotating anode tube revolutionized medical imaging. In this design, the target disk (anode) spins at high speeds (typically 3,000 to 10,000 RPM) during the exposure.

By rotating the target, the electron beam strikes a constantly moving track rather than a single focal point. This effectively spreads the intense heat over a vastly larger surface area, preventing the tungsten target from melting.

Almost every diagnostic X-ray tube used in hospital-grade DR systems, fluoroscopy units, and CT scanners utilizes a rotating anode design. They are essential for any application requiring high patient throughput or the imaging of dense anatomical structures like the pelvis or spine.

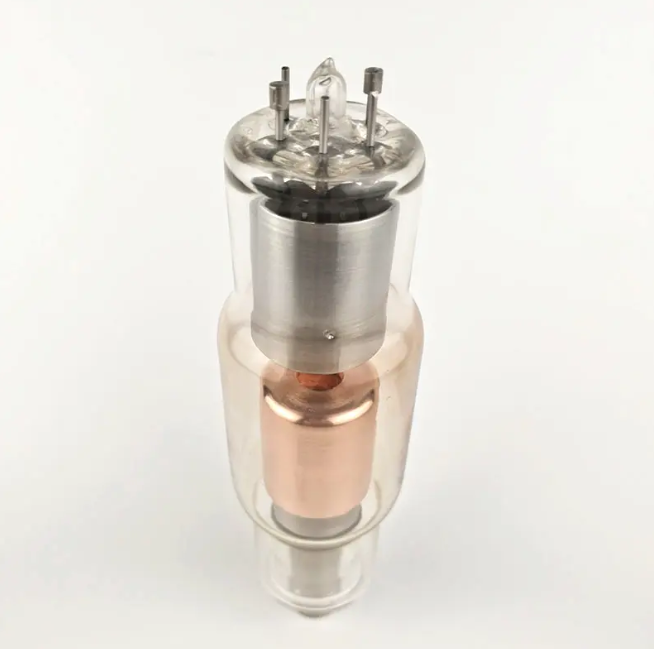

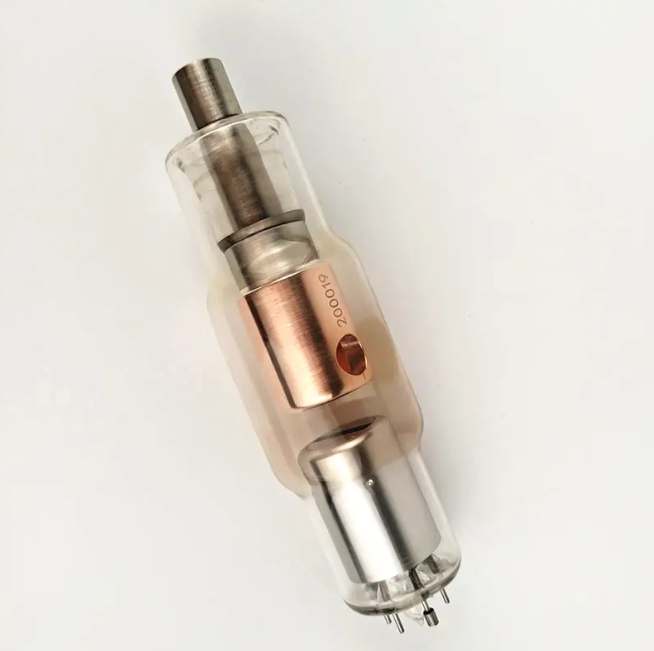

Stationary Anode X-ray Tubes

In a stationary anode tube, the tungsten target is embedded directly into a copper block, and it does not move. Because the focal spot remains static, the heat dissipation capabilities are severely limited compared to rotating models.

However, stationary anode tubes are far less complex, incredibly durable, and much more cost-effective to manufacture.

These tubes are primarily used in low-power applications where prolonged or intense exposures are unnecessary. You will frequently find stationary tubes in dental intraoral X-ray machines, portable low-tier DR systems, and veterinary diagnostic equipment.

High Voltage X-ray Tubes

A high voltage X-ray tube is engineered specifically to handle extreme electrical potentials, often ranging from 150 kVp to well over 200 kVp.

The increased voltage produces higher energy X-ray photons with vastly superior penetrating power. In the medical field, a high voltage X-ray tube is essential for specialized diagnostic environments.

For instance, bariatric imaging (imaging for obese patients) requires higher penetration to ensure a diagnostic-quality image without excessive scatter radiation. Specialized interventional radiology and oncology simulation systems also heavily rely on these high-voltage components.

Industrial vs Medical Imaging Tubes

While we focus on healthcare, it is worth noting the distinction between industrial and medical X-ray tubes. Industrial tubes are used for Non-Destructive Testing , such as inspecting pipeline welds or aerospace components for microscopic cracks.

Industrial tubes often require incredibly small focal spots to detect microscopic flaws and operate continuously for hours. They do not prioritize low radiation doses, as human tissue is not involved.

A medical X-ray tube, on the other hand, must balance focal spot size (for image resolution) with patient safety and radiation dose limits. The shielding, filtration, and operational protocols of a diagnostic X-ray tube are strictly regulated by health authorities worldwide to protect both the patient and the radiologic technologist.

How to Choose the Right X-ray Tube for Your System

Selecting the correct component is not as simple as matching a brand name. Procurement specialists and clinical engineers must evaluate several technical parameters to ensure seamless integration and long-term reliability.

1. Heat Unit (HU) Capacity:

The heat capacity dictates how many patients your system can scan back-to-back without overheating. A high-volume trauma center requires an X-ray tube for DR system with a much higher HU capacity (e.g., 600 kHU) than an outpatient orthopedic clinic (e.g., 300 kHU). Buying more capacity than you need wastes budget; buying too little causes workflow bottlenecks.

2. Focal Spot Size:

The focal spot determines the spatial resolution of your medical images. A smaller focal spot (e.g., 0.6 mm) provides incredibly sharp detail, ideal for extremity or pediatric imaging. A larger focal spot (e.g., 1.2 mm) is used when high power is needed to penetrate thicker anatomy, as it handles heat better. Most modern tubes offer dual focal spots.

3. Housing and Generator Compatibility:

An X-ray tube insert must perfectly match the existing tube housing and the high-voltage generator. The stator wiring, focal track angle, and high-voltage cable receptacles must be completely compatible. Always consult with a specialized supplier who understands cross-compatibility.

When Should You Consider X-ray Tube Replacement?

Managing an imaging department requires proactive maintenance. Waiting for an X-ray tube to fail catastrophically before ordering a replacement is a costly mistake. Emergency X-ray tube replacement leads to expensive expedited shipping, cancelled patient appointments, and damaged clinical reputations.

Equipment service engineers should monitor for the following signs that X-ray tube replacement is imminent:

• Rotor Bearing Noise: A healthy rotating anode sounds like a smooth, quiet hum. If you hear loud grinding, whining, or rattling as the anode spins up or brakes, the bearings are wearing out. Complete mechanical failure is closely following.

• Frequent Arcing: High-voltage arcing inside the tube is often described as a "spitting" or "popping" sound. While minor arcing can happen as a tube ages, frequent arcing indicates a loss of vacuum or internal contamination. This will inevitably shut down your generator.

• Decreased Image Quality: As the tungsten anode degrades over thousands of exposures, the focal track becomes pitted and rough. This phenomenon, known as target crazing, reduces radiation output and causes a noticeable drop in image sharpness and contrast.

• System Error Codes: Modern CT and DR systems have built-in diagnostics. Persistent error codes related to inverter faults, tube overloads, or filament current errors are strong indicators that the medical X-ray tube is reaching the end of its life.

For independent service organizations (ISOs), helping hospitals plan for an X-ray tube replacement six months before failure is a massive value-add that builds long-term client trust.

OEM vs Original X-ray Tubes

One of the most common debates in medical equipment procurement is whether to purchase directly from the OEM (Original Equipment Manufacturer) or to source original-grade / compatible replacement tubes.

Historically, OEMs have conditioned hospitals to believe that only their branded tubes will work. This strategy locks healthcare facilities into exorbitant service contracts and highly inflated parts pricing.

However, the reality of the medical manufacturing supply chain is very different. Often, the core glass or metal inserts inside the OEM tube housing are manufactured by specialized third-party factories.

Choosing a high-quality compatible or original-grade medical X-ray tube from a trusted supplier offers significant advantages:

• Massive Cost Savings: Compatible tubes can often be sourced for 30% to 50% less than the exact same part purchased through the OEM. This frees up critical capital for other hospital needs.

• Seamless Compatibility: A reputable supplier ensures plug-and-play compatibility. The tube will mount perfectly, calibrate flawlessly with your generator, and perform exactly to the original specifications.

• Stable Quality: Advanced compatible tubes undergo the same rigorous vacuum baking, high-voltage conditioning, and dynamic balancing as OEM tubes. The clinical outcome—excellent image quality and long lifespan—remains completely identical.

By partnering with a knowledgeable component supplier, medical equipment repair centers can significantly increase their profit margins while still offering hospitals an attractive, lower-cost repair solution.

Conclusion + Call to Action

The diagnostic X-ray tube is the beating heart of any medical imaging department. Whether you are operating a high-speed multi-slice CT scanner or a workhorse digital radiography room, understanding the core technology within your equipment is vital.

Knowing the difference between a high-capacity X-ray tube for CT scanner and a standard X-ray tube for DR system, recognizing the early warning signs of tube failure, and exploring compatible sourcing options will directly impact your facility's operational efficiency and bottom line.

Proactive planning for X-ray tube replacement prevents sudden equipment downtime and ensures that patient care is never compromised. You don't have to overpay for an OEM label when identical, stable quality is available on the broader market.

If you are a hospital administrator, a procurement professional, or an independent service engineer looking to reduce maintenance costs without sacrificing performance, you need a trusted supply partner.

At Dental X-Ray Tube, we bring decades of industry expertise to help you find the exact component you need. We pride ourselves on delivering cost savings, seamless compatibility, and highly stable quality for medical imaging professionals worldwide.

Don't let exorbitant OEM prices drain your maintenance budget. Contact us for compatible X-ray tube solutions today, and let our experts help you keep your imaging systems running flawlessly. Visit us at https://www.dentalx-raytube.com/ to explore our full inventory and technical resources.
