Choosing the right X-ray tube is an important part of designing, upgrading, or maintaining a medical imaging system. Although stationary and rotating anode tubes use the same basic principle to generate X-rays, their internal structures give them very different operating characteristics.
For equipment manufacturers, service companies, and medical imaging distributors, understanding the difference between a Medical Diagnostic X Ray Tube with a stationary anode and one with a rotating anode can make tube selection much easier.
The main differences are related to anode movement, heat distribution, power capacity, exposure frequency, and application requirements.
How Does a Medical Diagnostic X Ray Tube Work?
An X-ray tube generates X-rays when electrons emitted from the cathode are accelerated toward an anode target. When the high-speed electrons strike the target material, part of their energy is converted into X-rays while most of the remaining energy becomes heat.
This makes heat management a critical factor in X-ray tube design.
Both stationary and rotating anode tubes use a cathode, anode, target material, vacuum envelope, and other supporting components. The key difference is what happens at the target during exposure.
In a stationary design, the target remains in one position. In a rotating design, the anode disk continuously moves during exposure, allowing the electron beam to interact with different areas of the target track.
What Is a Stationary Anode X Ray Tube?

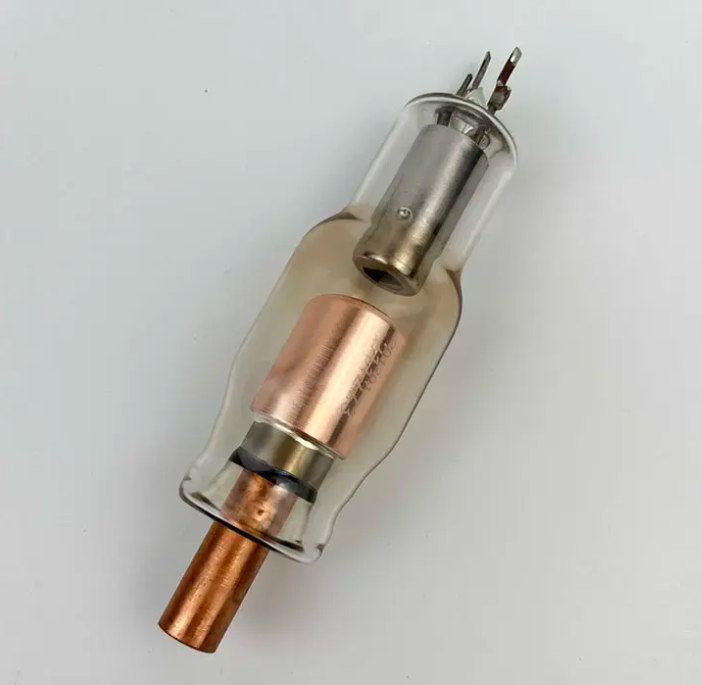

A Stationary Anode X Ray Tube uses a fixed target surface. Because the anode does not rotate, the construction is relatively simple and there are fewer mechanical components involved.
The main advantage is simplicity. A stationary tube can offer a compact design, relatively straightforward maintenance, and cost-effective integration into equipment where exposure demands are moderate.
Stationary anode tubes are commonly used in applications where the X-ray workload does not require extremely high continuous power. These can include dental imaging, portable X-ray systems, and certain general diagnostic applications.
For example, Sailray's RT13A-2.6-100 medical X-ray tube is designed for general diagnostic X-ray equipment and uses a reinforced stationary anode with a tungsten target.
Advantages of Stationary Anode Tubes
- Simple mechanical construction
- Compact design
- Lower mechanical complexity
- Suitable for moderate exposure workloads
- Practical for cost-sensitive equipment
- Widely used in dental and portable imaging systems
The main limitation is heat concentration. Since the target does not move, repeated exposure places more thermal stress on the same focal track.
What Is a Rotating Anode X Ray Tube?
A Rotating Anode X Ray Tube uses a disk-shaped anode that rotates at high speed during exposure.
Instead of concentrating electron impact on one fixed area, rotation moves the focal track across the anode surface. This distributes heat over a larger area and increases the tube's ability to handle demanding exposure conditions.
This design is particularly valuable for medical imaging systems that require higher output, repeated exposures, or rapid patient throughput.
Sailray's rotating anode product range includes tubes designed for medical diagnostic X-ray systems. For example, the MWTX64-0.8/1.8-130 has a 64 mm reinforced anode, 2800 RPM rotation speed, 67 kHU heat storage capacity, and a maximum operating voltage of 130 kV.
Larger rotating anode models can provide even greater heat storage and continuous dissipation. The MWTX73-0.6/1.2-150H, for instance, has a 73 mm anode, 300 kHU heat storage capacity, and maximum continuous dissipation of 750 W.
Stationary vs. Rotating Anode: Key Differences
| Feature | Stationary Anode | Rotating Anode |
|---|---|---|
| Anode movement | Fixed | Rotates during exposure |
| Heat distribution | Concentrated on a fixed area | Distributed across a larger track |
| Mechanical complexity | Lower | Higher |
| Heat capacity | Generally lower | Generally higher |
| High-load operation | More limited | Better suited |
| Typical applications | Dental, portable, moderate-load systems | General diagnostic, fluoroscopy, high-load systems |
| Maintenance considerations | Relatively simple | Includes rotating components |
| Cost | Usually more economical | Generally higher |
The important point is that one design is not universally better than the other. The correct choice depends on the workload and operating conditions of the X-ray system.
How Heat Capacity Affects Tube Selection
Heat management is often the deciding factor when selecting a Diagnostic X Ray Tube.
During exposure, the target absorbs a large amount of thermal energy. If the heat cannot be dissipated effectively, repeated exposures may require longer cooling intervals and can accelerate tube wear.
A rotating anode provides a larger effective focal track, allowing heat to spread over a wider area. This makes the design more suitable for systems where multiple exposures are performed within a short period.
For lower-duty applications, however, the additional mechanical complexity of a rotating anode may not provide enough practical benefit to justify the higher system requirements.
Which X Ray Tube Is Right for Your Application?
The best Medical X Ray Tube should be selected according to the complete imaging system rather than by tube type alone.
A stationary anode tube can be a suitable option when the equipment requires:
- Moderate exposure frequency
- Compact tube construction
- Straightforward integration
- Lower overall equipment cost
- Dental or portable imaging capability
A rotating anode tube is generally more appropriate when the equipment requires:
- Higher X-ray output
- Frequent repeated exposures
- Greater heat storage capacity
- Higher patient throughput
- General radiography or fluoroscopy applications
The tube voltage, focal spot size, anode angle, heat storage capacity, maximum power, housing configuration, and compatibility with the existing generator should also be evaluated before making a final selection.
Why Work with an Experienced X Ray Tube Manufacturer?
Selecting a replacement tube is not simply a matter of matching the voltage rating. Physical dimensions, focal spot characteristics, anode configuration, electrical parameters, housing connections, and application requirements all need to be considered.
Sailray Medical has specialized in X-ray-related products for more than 15 years and supplies X-ray tubes and related imaging components to customers in different countries. Its product range includes stationary and rotating anode X-ray tubes as well as X-ray tube housings, high-voltage cables, collimators, and other components used in X-ray imaging systems.
This broader product experience can be useful for equipment manufacturers and distributors looking for compatible components rather than a standalone tube.
Conclusion
The difference between a stationary and rotating anode Medical Diagnostic X Ray Tube comes down mainly to how the anode manages heat during X-ray generation.
Stationary anode tubes offer a simpler and more economical solution for applications with moderate workloads. Rotating anode tubes provide greater thermal capacity and are better suited to demanding diagnostic systems that require repeated or high-power exposures.
Before selecting a tube, buyers should consider the equipment type, exposure workload, required output, focal spot size, heat storage, electrical specifications, and system compatibility.
For medical equipment manufacturers, distributors, and service providers, choosing the right X-ray tube based on actual operating requirements can improve system reliability while avoiding unnecessary component costs.
