Every radiographic image begins with a decision most buyers never think about until something goes wrong: which x-ray collimator is installed on the tube head.
A poorly matched collimator doesn't just degrade image quality — it increases patient radiation dose, triggers regulatory compliance failures, and generates costly service calls that erode your margins. For medical equipment distributors, hospital procurement managers, and OEM integrators sourcing components for DR systems, the collimator is one of the most underestimated purchase decisions in the entire imaging chain.
This guide provides a systematic framework for evaluating and selecting the right medical x-ray collimator — covering types, specifications, compatibility, certification requirements, pricing factors, and supplier evaluation criteria. Whether you're purchasing a single replacement unit or negotiating an OEM contract for thousands of collimators, the principles here apply.
What Is an X-Ray Collimator?
An x-ray collimator is a precision mechanical assembly mounted directly below the x-ray tube housing. Its primary function is to restrict the x-ray beam to the exact area of diagnostic interest.
How It Works
The collimator uses two pairs of adjustable lead shutters — one pair for the longitudinal axis and one for the transverse axis — to shape a rectangular radiation field. A light source and mirror inside the housing project a visible light field onto the patient, indicating where the x-ray beam will strike.
Why It Matters
The collimator serves three critical functions:
- Radiation protection. By restricting the beam to only the area being examined, the collimator minimizes unnecessary radiation exposure to surrounding tissues. This is not optional — it is a regulatory mandate under IEC 60601-1-3 and FDA 21 CFR 1020.31.
- Image quality. A properly collimated beam reduces scatter radiation reaching the detector, resulting in higher contrast, less noise, and sharper diagnostic images. Scatter is the single largest source of image degradation in projection radiography.
- Regulatory compliance. International standards require that the light field and radiation field must align within ±2% of the Source-to-Image Distance. Failure to meet this requirement means the equipment cannot be legally operated.
For any organization purchasing or integrating x-ray equipment, the x-ray beam collimator is not a commodity accessory — it is a core component that directly impacts clinical outcomes, patient safety, and regulatory standing.
Main Types of X-Ray Collimators
There are three primary categories of radiography collimators, each designed for different clinical workflows, equipment configurations, and budget constraints.

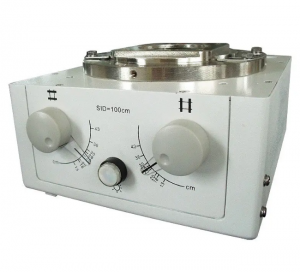

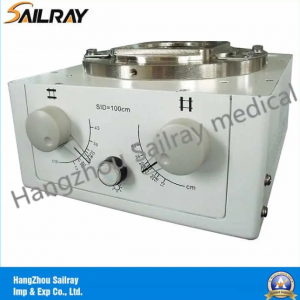

1. Manual X-Ray Collimator
A manual x-ray collimator uses hand-operated knobs or dials to adjust the lead shutters. The operator physically turns two sets of knobs — one controlling the longitudinal blades, the other controlling the transverse blades — to set the desired field size.
Key characteristics:
- Two or four adjustment knobs on the collimator housing
- Built-in halogen or LED light source with mirror for field indication
- Typically compatible with fixed-anode and rotating-anode tubes
- No electrical connection required
- Field size indicators via mechanical scales or graduated markings
Best for: Portable x-ray units, basic radiographic rooms, veterinary clinics, field hospitals, and budget-constrained facilities.
2. Automatic X-Ray Collimator
An automatic collimator uses electric motors to drive the lead shutters. The system detects the installed cassette or detector size and automatically adjusts the field to match.
Key characteristics:
- Motor-driven shutter adjustment via electronic control
- Positive Beam Limitation : auto-senses the detector/cassette size and collimates accordingly
- Requires electrical interface with the x-ray generator or system controller
- Manual override capability for non-standard examinations
- LED or laser crosshair for field center indication
Best for: High-volume radiography rooms, ceiling-suspended tube stands, multi-room DR installations, and facilities requiring standardized workflow.
3. Digital / Intelligent X-Ray Collimator
The latest generation of collimators integrates digital control, sensor feedback, and software intelligence. These systems go beyond simple motor-driven adjustment to provide real-time field optimization.
Key characteristics:
- Digital control interface (serial, CAN bus, or Ethernet communication)
- Automatic anatomical collimation based on exam protocol selection
- Real-time light field / radiation field alignment verification
- Integration with DICOM and RIS/PACS workflows
- Remote diagnostics and firmware updates
- Some models incorporate AI-assisted collimation for dose optimization
Best for: Premium DR systems, advanced multi-detector installations, pediatric imaging , and OEM integrators building next-generation systems.
Manual vs Automatic X-Ray Collimator: Detailed Comparison
This is the most common decision point for B2B buyers. The table below provides a direct comparison across the factors that matter most in procurement decisions.
| Factor | Manual X-Ray Collimator | Automatic X-Ray Collimator |
|---|---|---|
| Purchase Price | $300–$800 | $1,200–$4,000+ |
| Installation Cost | Minimal | Higher |
| Maintenance Cost | Very low | Moderate |
| Operator Dependency | High (requires trained operator for each exposure) | Low (auto-adjusts to detector size) |
| Collimation Accuracy | Operator-dependent | Consistent and repeatable |
| Workflow Speed | Slower | Faster (auto-collimation in <1 second) |
| Positive Beam Limitation (PBL) | Not available | Standard feature |
| DR System Integration | Basic | Full (electronic communication with generator) |
| Reliability | Excellent | Good (but motors/sensors add failure points) |
| Lifespan | 10–15+ years | 7–12 years |
| Regulatory Compliance | Meets requirements if properly operated | Inherently compliant via auto-adjustment |
When to Choose Manual
- Budget is the primary constraint. For distributors supplying cost-sensitive markets, the 60%–75% price difference is significant.
- Portable and mobile applications. Mobile x-ray units and portable field systems benefit from the lower weight and zero electrical dependency of manual collimators.
- Veterinary use. Most veterinary x-ray systems use manual collimators due to lower exam volumes and simpler positioning requirements.
- Backup and redundancy. Even facilities with automatic collimators should maintain manual units as backup.
When to Choose Automatic
- High patient throughput. Facilities processing 50+ exams per day benefit substantially from auto-collimation speed and consistency.
- Dose optimization is a priority. PBL ensures the field never exceeds the detector size, eliminating unnecessary exposure.
- Operator skill varies. In facilities with rotating technologists or lower training levels, automatic collimation removes a common source of error.
- DR system integration is required. Modern DR systems expect electronic communication with the collimator for protocol-driven imaging.
Key Factors When Selecting an X-Ray Collimator
Beyond the manual vs. automatic choice, several technical and commercial factors determine whether a collimator will perform reliably in the intended application.
1. DR System Compatibility
This is the single most important technical factor for modern installations. An x-ray collimator for DR system must meet specific interface requirements:
- Mechanical mounting: Standard tube port sizes are 125mm × 125mm, 150mm × 150mm, or custom OEM dimensions. Verify the mounting plate dimensions and bolt pattern.
- Electrical interface: Automatic collimators require communication with the generator or system controller. Common protocols include parallel I/O, serial RS-232, CAN bus, and Ethernet.
- PBL signal compatibility: The collimator must correctly interpret cassette/detector size signals from the bucky or detector tray.
- SID range: Verify the collimator's supported SID range matches your system's configuration (typically 70cm–180cm).
Procurement tip: Always request the collimator's interface specification document and cross-reference it with your DR system's integration manual before ordering.
2. Field Coverage and Adjustment Range
- Maximum field size at standard SID (100cm): Most general radiography collimators cover 43cm × 43cm (17" × 17"), matching the largest standard flat-panel detector size.
- Minimum field size: Important for extremity and pediatric imaging. A good collimator should close to 3cm × 3cm or smaller.
- Continuous vs. stepped adjustment: Manual collimators offer continuous (infinitely variable) adjustment. Some automatic collimators use preset positions — verify this matches your clinical needs.
3. Light Field / Radiation Field Alignment
Regulatory standards (IEC 60601-1-3, FDA 21 CFR 1020.31) require that:
- The light field must not deviate from the radiation field by more than ±2% of SID on any edge
- The sum of deviations on opposite edges must not exceed ±3% of SID
- The light field illumination must be at least 100 lux at the specified SID
These are not suggestions — they are legal requirements. When evaluating suppliers, request alignment test data from factory QC.
4. Build Quality and Materials
- Shutter material: High-purity lead (≥99.9%) or lead-antimony alloy, minimum 2mm equivalent thickness
- Housing: Die-cast aluminum with powder coating (for durability) or stainless steel (for mobile/field units)
- Mirror: Front-surface silver mirror with ≥90% reflectivity
- Light source: LED preferred over halogen (longer life, lower heat, more consistent illumination)
- Bearing quality: Oil-impregnated bronze or sealed ball bearings for smooth, backlash-free shutter movement
5. Certifications and Regulatory Compliance
Non-negotiable certifications for commercial medical x-ray collimators:
| Certification | Scope | Required For |
|---|---|---|
| CE Marking (EU MDR 2017/745) | European market access | EU, EEA, Turkey, and many countries accepting CE |
| IEC 60601-1-3 | Radiation protection in medical equipment | Global (referenced in most national regulations) |
| FDA 21 CFR 1020.31 | Performance standard for beam-limiting devices | United States |
| ISO 13485 | Quality management for medical devices | Required for CE marking and many OEM contracts |
| CFDA / NMPA | Chinese medical device registration | China |
Due diligence checklist: Request certificate numbers, verify them with the issuing bodies, and confirm the certificates specifically cover the collimator model you are purchasing — not just the manufacturer's company.
6. Supplier Reliability
The collimator is a long-term purchase. Evaluate the supplier's:
- Track record (minimum 5–10 years in medical imaging components)
- Installed base (how many units in the field?)
- Spare parts availability and lead time
- Technical support responsiveness
- Willingness to accommodate OEM/custom requirements
Application Scenarios
Different use environments demand different collimator configurations. Here is a practical mapping:
Hospital Radiology Departments
- Typical choice: Automatic collimator with PBL
- Requirements: Full DR integration, high throughput, DICOM compatibility, multi-room consistency
- Key concern: Workflow speed and dose compliance across rotating staff
Private Clinics and Imaging Centers
- Typical choice: Manual or semi-automatic collimator
- Requirements: Reliable performance, reasonable cost, ease of maintenance
- Key concern: Total cost of ownership over 7–10 years
Mobile and Portable X-Ray Units
- Typical choice: Compact manual collimator
- Requirements: Lightweight (<3kg), shock-resistant, no external power needed for basic collimation
- Key concern: Durability in field conditions and ease of operation with gloved hands
Veterinary and Animal Imaging
- Typical choice: Manual collimator with veterinary-specific mounting
- Requirements: Wide field adjustment range (small animals to large breeds), compatibility with veterinary x-ray generators
- Key concern: Ease of single-handed operation (operator may be restraining the animal), light field brightness for accurate positioning on fur-covered subjects
OEM and Customization Options
For equipment manufacturers and system integrators, off-the-shelf collimators rarely meet all requirements. A capable OEM x-ray collimator supplier should offer:
Mechanical Customization
- Custom mounting plate dimensions and bolt patterns to match proprietary tube housings
- Modified housing dimensions for space-constrained installations
- Custom cable routing and connector positions
- Modified weight targets for portable applications
Electrical and Software Customization
- Custom communication protocols to match proprietary system controllers
- Modified PBL algorithms for non-standard detector configurations
- Custom firmware for specific workflow requirements
- Integration with proprietary GUI/display systems
Branding and Labeling
- Private-label collimators with your brand name, logo, and model number
- Custom color matching to your system's industrial design
- Compliant labeling (CE, FDA, NMPA) under your company's regulatory registrations
Volume Benefits
- 200–500 units/year: Typically 10%–15% price reduction vs. single-unit pricing
- 500–2,000 units/year: 15%–25% reduction with possible tooling amortization
- 2,000+ units/year: Custom pricing with dedicated production line allocation
Key question to ask your supplier: "Can you provide the regulatory documentation (Design History File, Risk Management File, IEC test reports) needed for us to register this collimator under our own CE/FDA submission?" A genuine OEM partner will say yes.
Price Factors: What Drives X-Ray Collimator Cost
Understanding the cost structure helps you negotiate effectively and identify suppliers who are offering genuine value vs. cutting corners.
Primary Cost Drivers
| Factor | Impact on Price | Notes |
|---|---|---|
| Manual vs. Automatic | 3x–5x difference | Motors, sensors, and control electronics add significant cost |
| Maximum field size | 10%–30% variation | Larger field size requires larger lead shutters and housing |
| Lead shutter thickness | 5%–15% variation | Thicker shutters (3mm vs. 2mm) for higher kVp applications |
| Light source type | 5%–10% variation | LED costs more upfront but lasts 10x longer than halogen |
| Certification scope | 10%–20% variation | CE + FDA costs more to maintain than CE alone |
| OEM customization | 15%–40% premium (first order) | NRE costs are amortized over subsequent orders |
| Order volume | 10%–25% reduction at volume | See OEM section above |
Red Flags in Pricing
Be cautious if a supplier's price is significantly below market range:
- Below $200 for a manual collimator: Likely substandard lead purity, poor mirror quality, or uncertified components
- Below $800 for an automatic collimator: May lack genuine PBL functionality or use consumer-grade motors
- No separate line items for certification/testing: May indicate the collimator is not actually certified for the claimed markets
How to Get the Best Value
- Define your specifications first. Ambiguous RFQs get inflated quotes because suppliers price in risk.
- Request a formal quotation with specification sheet. Compare specifications, not just prices.
- Ask about NRE (Non-Recurring Engineering) costs separately. For OEM orders, knowing the one-time costs vs. per-unit costs helps in long-term planning.
- Negotiate payment terms. Standard terms are 30% deposit, 70% before shipment. For established relationships, T/T 60 or L/C at sight may be available.
- Factor in total cost of ownership. A $500 manual collimator that needs replacement every 5 years costs more over 15 years than a $700 unit that lasts the full period.
How to Choose a Reliable X-Ray Collimator Supplier
Factory vs. Trading Company
| Criterion | Factory / Manufacturer | Trading Company |
|---|---|---|
| Price | Lower (direct from production) | Higher (+15%–30% margin) |
| Customization | Full OEM/ODM capability | Limited or none |
| Quality Control | Direct oversight, traceable | Indirect, dependent on source factory |
| Technical Support | Engineers on staff | Sales staff with limited technical depth |
| Regulatory Documentation | Can provide Design History File, test reports | Usually cannot |
| Lead Time | Predictable (owns production schedule) | Variable (dependent on factory availability) |
How to verify: Request the manufacturer's ISO 13485 certificate and check whether the factory address on the certificate matches the address they provide. Ask for a factory tour (virtual or in-person).
Evaluation Checklist
- Company has been manufacturing medical imaging components for 10+ years
- ISO 13485 certified (verified with registrar)
- CE marking and/or FDA registration for the specific collimator model
- Can provide IEC 60601-1-3 test reports from accredited lab
- Maintains spare parts inventory with documented lead times
- Offers technical support in your time zone or language
- Willing to sign NDA for OEM design collaboration
- Has references from existing OEM customers (and will share them)
- Accepts third-party inspection during production
- Has documented QC process with incoming material inspection, in-process inspection, and final inspection stages
FAQ
1. What are the main types of x-ray collimators?
There are three main types: manual x-ray collimators (hand-adjusted shutters, no motors), automatic/motorized collimators (motor-driven with Positive Beam Limitation), and digital/intelligent collimators (software-controlled with sensor feedback and protocol-driven adjustment). Manual collimators are most cost-effective for low-volume and portable applications. Automatic collimators are standard for high-throughput DR installations. Digital collimators represent the premium tier for advanced imaging systems.
2. How do I choose between a manual and automatic x-ray collimator?
Choose a manual x-ray collimator if your primary needs are cost efficiency, portability, and simplicity — typical for veterinary clinics, mobile units, and budget-constrained facilities. Choose an automatic collimator if you need high-throughput workflow, consistent dose optimization via PBL, and full DR system integration — typical for hospital radiology departments processing 50+ exams daily.
3. What is the best x-ray collimator for a DR machine?
The best x-ray collimator for DR system installations is an automatic collimator with verified electronic interface compatibility (matching your generator's communication protocol), Positive Beam Limitation calibrated to your detector sizes, and CE/IEC certification. Always cross-reference the collimator's interface specification document with your DR system's integration requirements before purchase.
4. What factors affect x-ray collimator price?
The primary x-ray collimator price factors are: type (manual vs. automatic — a 3x–5x difference), maximum field size, lead shutter thickness, light source type (LED vs. halogen), certification scope (CE, FDA, NMPA), OEM customization requirements, and order volume. Typical pricing ranges from $300–$800 for manual units to $1,200–$4,000+ for automatic collimators.
5. Can I get a custom x-ray collimator with my brand?
Yes. A qualified custom x-ray collimator supplier can provide private-label collimators with your brand name, custom mounting dimensions, modified communication protocols, and compliant labeling under your regulatory registrations. OEM customization typically requires a minimum order quantity of 50–200 units and involves a one-time NRE (Non-Recurring Engineering) fee for tooling and design modifications.
6. What certifications should an x-ray collimator have?
At minimum, a medical x-ray collimator must comply with IEC 60601-1-3 (radiation protection requirements). For European markets, CE marking under the Medical Device Regulation (MDR 2017/745) is mandatory. For the United States, FDA 21 CFR 1020.31 compliance is required. The manufacturer should hold ISO 13485 quality management certification. Always verify certificate numbers directly with the issuing bodies.
7. How do I verify if a supplier is a real manufacturer or a trading company?
Request the supplier's ISO 13485 certificate and verify that the registered factory address matches their claimed location. Ask for a factory tour . Request the IEC 60601-1-3 test report and check which entity name appears as the manufacturer. A genuine x-ray collimator manufacturer will openly share Design History Files, risk management documentation, and accredited test lab reports.
Conclusion
Selecting the right x-ray collimator is a decision that ripples through every aspect of your imaging operation — from image quality and patient dose to regulatory compliance and long-term cost of ownership. The choice between manual, automatic, and digital types is not about which is "best" in abstract terms, but about which configuration matches your specific clinical workflow, technical environment, and commercial requirements.
For B2B buyers — whether you are a distributor expanding your product line, a hospital upgrading an aging fleet, or an OEM integrator designing the next-generation DR system — the framework in this guide gives you the technical vocabulary and evaluation criteria to make confident procurement decisions.
The sourcing window for 2026 project installations is open now. Lead times for certified medical collimators range from 4–12 weeks depending on customization and volume.
Request a Quote — Get factory-direct pricing on manual, automatic, and custom OEM collimators.
Discuss Your OEM Requirements — Our engineering team can review your interface specifications and propose a matched solution.
Browse Product Specifications — View our full range of medical imaging components with detailed technical datasheets.
Have a specific compatibility question? Our technical team responds within 24 hours with specification-level answers — not sales scripts.
Post time: Apr-13-2026
