The X-ray tube is one of the core components of a dental imaging system. Although it is a relatively small part of the equipment, its performance can directly affect exposure stability, image quality, equipment reliability, and maintenance costs.
For dental equipment manufacturers, distributors, and service companies, choosing a Dental X Ray Tube is therefore not simply a matter of finding a tube with the same voltage rating. The tube needs to match the imaging system, exposure conditions, focal spot requirements, installation space, and expected workload.
Understanding these factors before purchasing can help avoid compatibility problems and unnecessary replacement costs.
1. Start With the Type of Dental Imaging System
Different dental imaging systems have different requirements for X-ray tubes.
An intraoral dental unit usually works with a compact tube designed for relatively low-power exposure. A panoramic system has different exposure characteristics because the imaging process covers a larger area and requires a tube suitable for the specific panoramic system design.
For this reason, buyers should first identify the application before comparing individual models.
A typical Intraoral Dental X-Ray Tube is designed for intraoral dental X-ray equipment, while a Panoramic Dental X-Ray Tube is developed for panoramic dental imaging applications.
Sailray's product range includes stationary-anode tubes for intraoral dental applications as well as panoramic dental X-ray tubes, giving equipment manufacturers and replacement-part suppliers different options for dental imaging systems.
2. Why Stationary Anode Tubes Are Common in Dental Applications
One of the most important distinctions when selecting an X-ray tube is the anode design.
A Stationary Anode X-Ray Tube uses a fixed target. Compared with a rotating-anode tube, its construction is relatively straightforward, with fewer moving components. This makes the design suitable for applications where the exposure workload and heat load are within the tube's operating limits.
Dental X-ray equipment is one of the common applications for stationary-anode technology.

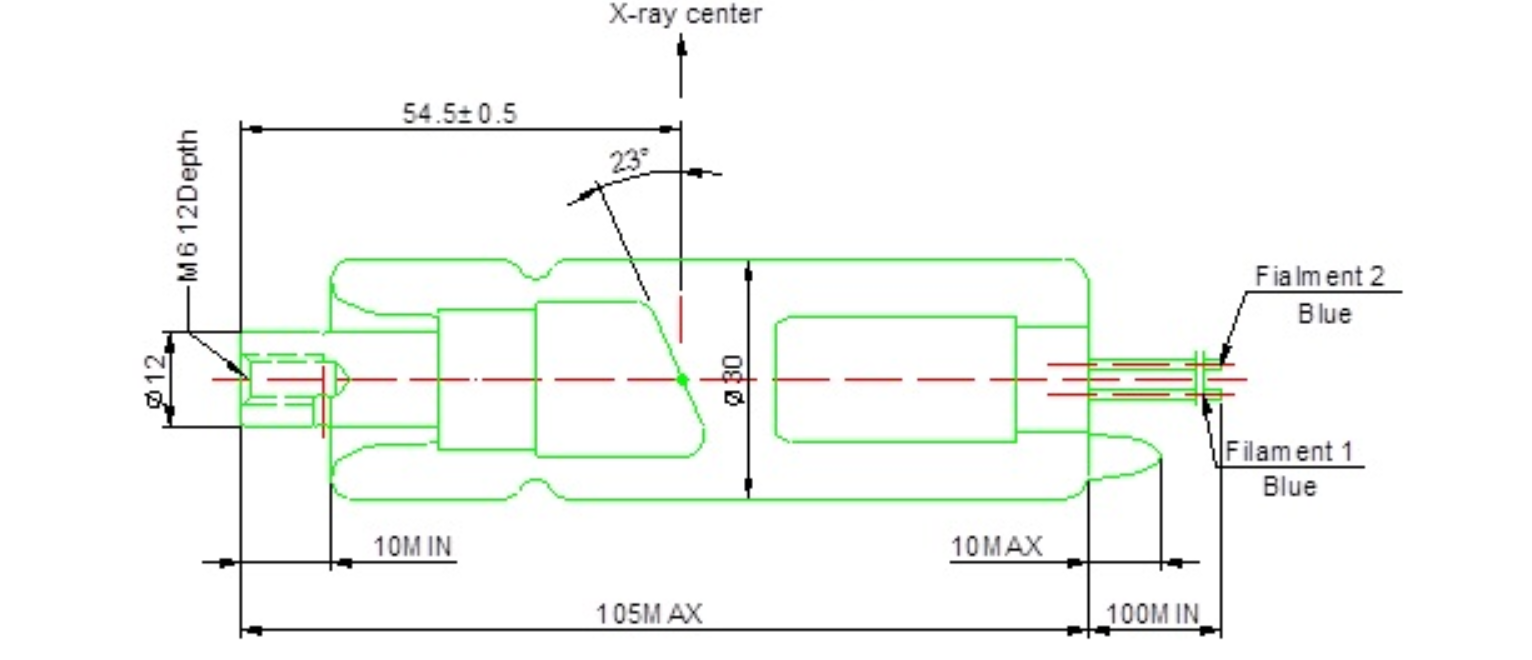

For example, Sailray's Xd2 dental X-ray tube is a stationary-anode tube designed for intraoral dental X-ray units or 10 mA X-ray machines. The model RT12-1.5-85 uses an integrated glass tube design.
This type of tube can be a practical choice when the dental system requires a compact X-ray source with stable performance under its specified operating conditions.
3. Pay Attention to Tube Voltage and Focal Spot Size
Tube voltage is another important specification.
The required voltage depends on the design of the X-ray system and the intended imaging application. Choosing a tube with an incompatible voltage range can create integration and performance problems, so the replacement tube should always be checked against the original equipment specifications.
Focal spot size also deserves attention.
A smaller focal spot can help achieve finer spatial detail under appropriate exposure conditions, while a larger focal spot can provide greater heat-loading capability. The right balance depends on the design of the imaging system rather than on one specification being universally better.
For example, Sailray's dental and medical X-ray tube range includes different focal spot configurations and voltage ratings for different applications. Its medical tube XD3A has a nominal tube voltage of 105 kV and a 2.6 mm focal spot, while its rotating-anode products offer smaller dual focal spots for higher-performance diagnostic applications.
4. Heat Management Matters More Than It May Seem
During an X-ray exposure, electrons strike the anode target and generate X-rays, but most of the electron energy is converted into heat.
This means that thermal performance is an important part of tube selection.
If a tube is repeatedly operated beyond its appropriate exposure conditions, excessive heat can affect the target and other internal components. For equipment operators and service engineers, exposure frequency and cooling requirements should therefore be considered alongside the basic electrical specifications.
For dental systems with a relatively controlled exposure workload, a suitable stationary-anode tube may provide the required performance. Higher-load medical systems, however, may require a rotating-anode design that distributes heat over a larger focal track.
Sailray's rotating-anode tubes illustrate this difference. The MWTX64-0.3/0.6-130, for example, uses a reinforced 64 mm anode, has a 200 kHU heat storage capacity, and is designed for medical diagnostic and fluoroscopy applications.
The key point is simple: the X-ray tube should be selected according to the actual workload of the system, not just its maximum voltage.
5. Choosing a Replacement Dental X-Ray Tube
When replacing an existing tube, using the original model number is a useful starting point, but it should not be the only reference.
A proper Replacement Dental X-Ray Tube evaluation should include:
- ✓ Original tube model and manufacturer
- ✓ Maximum tube voltage
- ✓ Tube current
- ✓ Focal spot size
- ✓ Anode configuration
- ✓ Physical dimensions
- ✓ Electrical connections
- ✓ Housing and mounting requirements
- ✓ Exposure characteristics
- ✓ Compatibility with the existing generator
Equivalent models can sometimes be used, but the electrical, mechanical, and thermal specifications must be checked carefully before installation.
Sailray supplies replacement and equivalent X-ray tube models for different equipment platforms. Its product range includes tubes equivalent to models from manufacturers such as Toshiba, CEI and IAE, depending on the specific product.
For distributors and service companies, providing the original tube information and equipment model to the manufacturer can make the matching process considerably easier.
6. Dental X-Ray Tube vs. Medical X-Ray Tube
Dental and medical X-ray tubes are based on the same fundamental principle, but their applications and operating requirements can be very different.
A dental system generally prioritizes compact dimensions, appropriate exposure parameters, and compatibility with dental imaging equipment. General diagnostic medical systems may require higher power, larger heat capacity, dual focal spots, or repeated exposures.
This is why a Medical X-Ray Tube should not automatically be considered a substitute for a dental tube simply because its voltage appears suitable.
For example, Sailray's medical X-ray tube category includes stationary-anode tubes for general diagnostic systems, while its rotating-anode range includes tubes designed for medical diagnosis, radiography, and fluoroscopy.
The application should always determine the tube specification.
7. Consider the Complete Imaging System
An X-ray tube does not work independently.
The final imaging performance also depends on the generator, high-voltage cables, tube housing, collimator, detector, control system, and other components.
This is particularly important when upgrading an older dental or medical X-ray system. Even if a replacement tube appears technically similar, differences in electrical connections, housing dimensions, generator compatibility, or exposure control may affect installation.
A supplier with experience across related X-ray components can therefore be useful during equipment upgrades.
Sailray's product portfolio covers not only X-ray tubes but also tube housings, high-voltage cables, X-ray collimators, exposure hand switches, and radiation-shielding lead glass.
This broader product range can help equipment manufacturers and maintenance companies evaluate the X-ray system as a complete assembly rather than treating the tube as an isolated component.
Conclusion
Selecting the right Dental X Ray Tube requires more than matching a product name or voltage number. The imaging application, anode type, focal spot, heat capacity, electrical specifications, mechanical dimensions, and expected workload all need to be considered.
For intraoral dental systems, a suitable stationary-anode tube can provide a compact and practical solution. Panoramic systems require tubes matched to their specific imaging configuration, while higher-load medical equipment may benefit from rotating-anode technology.
For buyers looking for a Replacement Dental X-Ray Tube, the safest approach is to compare the original tube specifications with the replacement model and confirm compatibility before installation.
With a product range covering dental, panoramic, general medical, rotating-anode, and industrial X-ray applications, Sailray provides X-ray tube solutions for equipment manufacturers, distributors, and service companies looking for compatible components for different imaging systems.
