Every dental image begins with a single component: the X-ray tube. Yet most clinic owners spend weeks evaluating chairs, handpieces, and practice management software—while the tube inside their imaging unit gets almost no scrutiny at all.
That oversight is expensive.
A poorly matched dental X-ray tube delivers noisy images that force retakes, exposes patients to unnecessary radiation, burns through its lifespan in half the expected time, and quietly drains profit from every operatory it serves. A well-chosen tube does the opposite: it produces crisp diagnostic images on the first exposure, keeps dose levels defensibly low, runs reliably for years, and pays for itself many times over.
Whether you are a dental clinic owner upgrading aging equipment, a dental equipment distributor building a reliable supply chain, a medical device importer evaluating new sourcing options, or a dental imaging system manufacturer specifying OEM components, this guide walks you through every factor that matters—so you can choose with confidence rather than guesswork.
What Is a Dental X-ray Tube?
A dental X-ray tube is a vacuum-sealed glass or metal-ceramic envelope that converts electrical energy into X-ray photons. At its core are two electrodes:
- Cathode: A tungsten wire heated by electrical current. When the filament reaches operating temperature, it releases electrons through thermionic emission.
- Anode : A tungsten or tungsten-rhenium disc that the electrons strike at high velocity. The sudden deceleration of those electrons at the target surface produces X-rays—primarily through Bremsstrahlung radiation—along with a significant amount of heat.
The useful X-ray beam exits through a thin beryllium or glass window, passes through added aluminum filtration to remove low-energy photons that would increase patient dose without improving the image, and is shaped by a lead collimator before reaching the patient.
Key operating parameters
| Parameter | Typical dental range | What it controls |
|---|---|---|
| Tube voltage (kVp) | 60–70 kVp | Beam penetration and image contrast |
| Tube current (mA) | 4–10 mA | Number of photons per unit time |
| Exposure time | 0.1–0.4 s (intraoral) | Total photon output; affects motion blur |
| Focal spot size | 0.4–0.8 mm | Spatial resolution and geometric sharpness |
| Inherent filtration | ≥ 1.5 mm Al equivalent | Low-energy photon removal |
Understanding these fundamentals is not academic trivia—it is the baseline you need to evaluate any dental X-ray tube specification sheet and to judge whether a supplier truly understands the product they are selling.
Why Choosing the Right Dental X-ray Tube Matters
The X-ray tube is the single component most responsible for three outcomes that define a dental imaging system's clinical and commercial value:
1. Diagnostic image quality
A tube with a well-designed focal spot geometry and stable high-voltage output produces images with sharp bony trabecular detail, clear lamina dura, and reliable contrast between enamel, dentin, and soft tissue. A substandard tube produces images that look "acceptable" at first glance but force clinicians to squint, zoom, and sometimes retake—adding dose, time, and patient frustration.
2. Radiation dose
All dental X-ray systems must comply with regional dose limits (e.g., FDA 21 CFR 1020.30 in the U.S., IEC 60601-2-65 internationally). But compliance is a floor, not a ceiling. A high-quality dental radiography X-ray tube with proper filtration and a tight focal spot can deliver the same diagnostic information at a measurably lower dose—a differentiator that increasingly matters to informed patients and to regulators pushing the ALARA principle.
3. Total cost of ownership
Tube replacement is one of the most expensive service events in a dental imaging unit's lifecycle. A tube that lasts 300,000 exposures versus one that fails at 150,000 exposures doesn't just halve your replacement cost—it also eliminates the downtime, the service call fee, and the revenue lost from an operatory sitting idle. When you multiply those numbers across a multi-operatory practice or a fleet of distributed units, the financial impact of tube selection becomes impossible to ignore.
Expert insight: In our experience working with dental OEMs and large clinic groups, the X-ray tube accounts for roughly 8–12% of the total imaging unit cost but influences 60–70% of the end-user satisfaction and service burden. It is the highest-leverage component decision you can make.
Key Factors to Consider When Choosing a Dental X-ray Tube
Image Quality
Image quality in dental radiography is not a single metric—it is the composite result of several tube characteristics:
- Focal spot size: Smaller focal spots (0.4 mm) yield sharper images but concentrate heat on a smaller anode area, which can limit duty cycle. Larger focal spots (0.7–0.8 mm) tolerate higher workloads but sacrifice some geometric sharpness. For intraoral periapical and bitewing imaging, a 0.4–0.5 mm focal spot is the industry sweet spot.
- Anode angle: A steeper anode angle produces a smaller effective focal spot but a narrower usable beam. Most dental tubes use anode angles between 10° and 15°.
- Voltage ripple: Modern high-frequency generators produce near-constant-potential waveforms with < 5% ripple. If you are pairing a new tube with an older self-rectified or half-wave-rectified generator, expect higher patient dose and lower contrast.
- Beam uniformity: A well-manufactured tube produces an even radiation field across the collimated area. Hot spots and cold spots indicate manufacturing defects in the anode surface or window alignment.
What to ask a supplier: "Can you provide MTF data or equivalent resolution test results for this tube at the kVp and mA settings I will use clinically?" Any serious dental X-ray tube manufacturer can answer this question. If they cannot, that is a signal.
Tube Lifespan
Tube lifespan is typically measured in total heat units the anode can absorb over its lifetime, or more practically, in the total number of exposures before the filament degrades or the anode surface roughens to the point where image quality falls below specification.
Factors that affect lifespan:
| Factor | Effect on lifespan |
|---|---|
| Duty cycle (exposures per hour) | Higher duty cycle = faster anode aging |
| kVp and mA settings | Higher settings = more heat per exposure |
| Cooling efficiency | Better cooling = slower thermal fatigue |
| Filament quality | Higher-purity tungsten = longer emission life |
| Vacuum integrity | Better seal = slower gas contamination |
Real-world benchmark: A well-manufactured dental X-ray tube from a reputable supplier should deliver 300,000+ intraoral exposures under normal clinical conditions (6–8 mA, 60–70 kVp, 20–30 exposures per hour). If a manufacturer cannot provide expected lifetime data in writing, treat that as a red flag.
Compatibility with Equipment
A dental X-ray tube is not a universal part. Before purchasing, verify:
- Electrical interface: Does the tube's filament voltage/current requirement match your generator's output? Are the high-voltage cable connectors compatible (e.g., 75 kV cable receptacles)?
- Mechanical mounting: Does the tube housing fit the tube head assembly of your unit? Are the mounting bolt patterns, housing dimensions, and oil-fill volumes correct?
- Control signal compatibility: Some modern tubes include built-in temperature sensors or exposure counters that communicate with the generator control board. If your generator does not support these signals, you will lose functionality.
- Regulatory pairing: In some jurisdictions, a tube-generator combination must be tested and certified as a system. Swapping in a non-validated tube may void the system's regulatory clearance.
Practical tip for distributors and importers: Always request a cross-reference compatibility list from the manufacturer. A credible dental X-ray tube supplier maintains detailed compatibility documentation for major OEM platforms .
With or Without Anti-Scatter Grid
Scattered radiation is the enemy of contrast. When X-ray photons pass through the patient's tissues, some are deflected (scattered) and reach the detector from angles that carry no useful anatomical information. The result is a diffuse "fog" that reduces image contrast—particularly noticeable in panoramic (OPG) and cephalometric imaging where the irradiated tissue volume is larger.
A dental X-ray tube with grid integrates an anti-scatter grid into the tube head assembly or attaches one between the patient and the detector. The grid absorbs a high proportion of scattered photons before they reach the detector, dramatically improving contrast.
When is a grid necessary?
| Application | Tissue volume | Scatter level | Grid recommended? |
|---|---|---|---|
| Intraoral periapical | Small | Low | Usually not |
| Intraoral bitewing | Small | Low | Usually not |
| Panoramic (OPG) | Large | High | Yes |
| Cephalometric | Very large | Very high | Yes |
| CBCT | Variable | Variable | Depends on FOV |
Note: Adding a grid absorbs some primary radiation as well, so the tube must compensate by increasing mAs—which slightly increases patient dose. The net diagnostic benefit is almost always positive for extraoral imaging, but the tradeoff should be understood.
We will compare grid and non-grid configurations in detail in a dedicated section below.
Radiation Safety
Radiation safety is a non-negotiable factor. Evaluate:
- Leakage radiation: The tube housing must limit leakage to ≤ 1 mGy per hour at 1 meter (per IEC 60601-2-65 and FDA 21 CFR 1020.30). Request the manufacturer's leakage test report.
- Filtration: Total filtration (inherent + added) should be ≥ 2.5 mm Al equivalent for tubes operating above 70 kVp, and ≥ 1.5 mm Al for tubes at or below 70 kVp. Higher filtration removes more low-energy photons that contribute to skin dose without improving the image.
- Half-value layer (HVL): This measures beam quality. At 70 kVp, the HVL should be ≥ 1.5 mm Al. A higher HVL means a harder, more penetrating beam with a lower proportion of dose-contributing soft photons.
- Collimation: Proper collimation limits the beam to the detector area and no larger. Round collimation should produce a field diameter ≤ 6 cm at the patient's skin surface. Rectangular collimation reduces dose by an additional 50–60% and is increasingly considered best practice.
A critical purchasing question: "Does this tube assembly comply with IEC 60601-2-65, and can you provide the full type test report?"
Cost vs Value
The cheapest dental X-ray tube on the market is never the cheapest in practice. Consider total cost of ownership:
| Cost component | Low-cost tube | High-quality dental X-ray tube |
|---|---|---|
| Purchase price | $200–$400 | $500–$900 |
| Expected lifespan | 100K–150K exposures | 300K–500K exposures |
| Retake rate (poor image quality) | 8–15% | 2–4% |
| Annual service calls | 1–3 | 0–1 |
| Effective cost per exposure | Higher | Lower |
| Regulatory risk | Higher | Lower |
When you factor in retake costs , service call fees, and the revenue lost during downtime, a high quality dental X-ray tube from a reputable manufacturer typically delivers 30–50% lower total cost of ownership over its lifetime compared to the cheapest alternative.
Common Mistakes to Avoid
After two decades of advising dental OEMs, distributors, and clinic groups, here are the most damaging mistakes we see repeatedly:
1. Choosing on price alone. The unit price difference between a budget tube and a premium tube is typically $200–$500. The lifetime cost difference—including retakes, service, and downtime—is often $2,000–$5,000 per tube. Penny-wise, pound-foolish.
2. Ignoring compatibility verification. Assuming that a tube with "similar" specifications will fit and function in your existing unit. "Similar" is not "compatible." A 2 mm difference in housing dimensions or a mismatched filament current requirement can render a tube unusable—and most suppliers do not accept returns on electrical components.
3. Skipping the compliance review. Importing a tube that lacks IEC or FDA type test documentation may save time on the front end but creates enormous regulatory liability. In the U.S., the FDA can issue a warning letter, seize products, and levy fines for non-compliant X-ray components. In the EU, missing CE documentation can block market access entirely.
4. Neglecting thermal management. Installing a tube in a housing with inadequate oil volume or a degraded cooling fan, then blaming the tube when it fails prematurely. The tube and its thermal environment are a system. If you replace the tube without inspecting the housing, insulating oil, and cooling path, the replacement will fail just as fast.
5. Overlooking the manufacturer's technical support. A good tube comes with accessible engineering support—application notes, compatibility guidance, installation instructions, and responsive troubleshooting. A cheap tube comes with a shipping label. When problems arise (and they will), the quality of the manufacturer's support determines whether the problem is resolved in hours or weeks.
6. Buying from brokers instead of direct manufacturers. Brokers and trading companies often source tubes from multiple factories with inconsistent quality control. When you buy from a verified dental X-ray tube manufacturer, you get traceability, consistent specifications, and a single point of accountability.

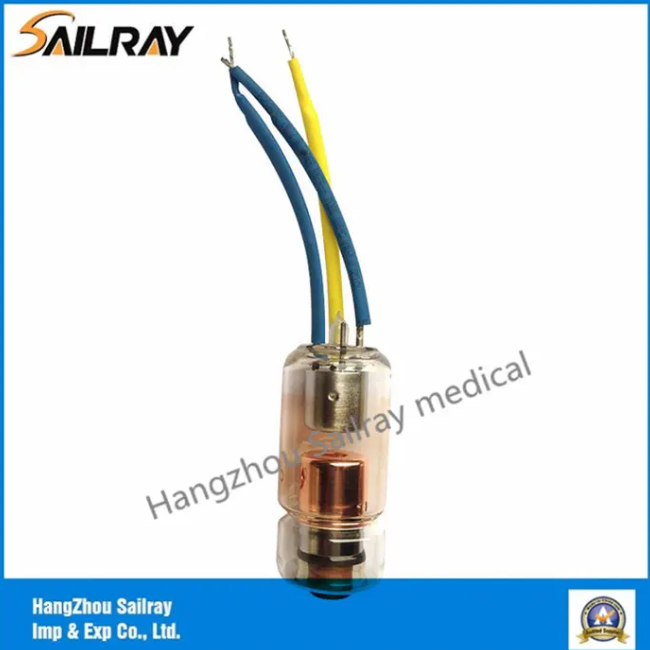

Dental X-ray Tube with Grid vs Without Grid
This is one of the most common questions we receive from both clinic owners and equipment integrators. Here is a definitive comparison:
| Feature | Without Grid | With Grid |
|---|---|---|
| Primary use | Intraoral imaging | Panoramic, cephalometric, and select CBCT |
| Image contrast | Adequate for small-field imaging | Significantly improved for large-field imaging |
| Scatter rejection | Minimal (relies on air gap) | High (60–90% scatter removal, depending on grid ratio) |
| Patient dose | Lower (no grid absorption of primary beam) | Slightly higher (grid absorbs ~20–30% of primary photons, requiring increased mAs) |
| Cost | Lower | Higher (grid adds $100–$300 to assembly cost) |
| Complexity | Simpler assembly | Requires precise grid alignment; misalignment causes grid cutoff artifacts |
| Maintenance | Less maintenance | Grid must be inspected for damage; bent grid strips cause visible line artifacts |
| Best for | Periapical, bitewing, small-sensor imaging | Panoramic units, cephalostat systems, large-FOV applications |
When to choose a dental X-ray tube with grid
- You are manufacturing or purchasing a panoramic imaging system where scatter degradation is the primary image quality limiter.
- You are upgrading a cephalometric unit and want to improve soft-tissue contrast for orthodontic analysis.
- Your clinical workflow involves high-volume extraoral imaging where consistent contrast is critical for diagnostic confidence.
When a grid is unnecessary
- You are operating an intraoral X-ray unit where the small field size and short object-to-detector distance naturally limit scatter.
- Your detector technology (e.g., photon-counting direct-conversion sensors) has inherent scatter rejection capabilities.
- You are prioritizing the lowest possible patient dose for pediatric imaging.
Expert insight: For distributors and importers serving markets with a high proportion of panoramic units (e.g., Latin America, Southeast Asia, the Middle East), stocking dental X-ray tubes with grid is essential. Approximately 40–50% of the tubes we supply to these regions include integrated or compatible anti-scatter grids.
How to Choose a Reliable Dental X-ray Tube Manufacturer
Not all manufacturers are equal. Here is a structured evaluation framework:
1. Manufacturing capability and specialization
- Does the manufacturer specialize in dental X-ray tubes, or are dental tubes a minor sideline to industrial or medical tubes? Specialization matters because dental tubes have unique requirements that generalist manufacturers often compromise on.
- Do they control the critical manufacturing processes in-house—glass/ceramic envelope sealing, cathode assembly, anode fabrication, vacuum processing, and high-voltage conditioning? Or do they assemble purchased sub-components?
2. Quality system and certifications
| Certification | What it demonstrates |
|---|---|
| ISO 13485 | Medical device quality management system |
| ISO 9001 | General quality management |
| CE Marking (MDR/IVDR) | EU market access compliance |
| FDA 510(k) or establishment registration | U.S. market access |
| IEC 60601 type test reports | Electrical safety and performance compliance |
A manufacturer that holds ISO 13485 and can provide IEC 60601-2-65 type test reports is demonstrating a level of quality commitment that directly correlates with product reliability.
3. R&D and engineering depth
- Can the manufacturer customize focal spot size, anode angle, filtration, or housing geometry for your specific application?
- Do they have in-house testing capabilities ?
- Can they provide engineering support during your system integration process?
4. Supply chain reliability
- What is the standard lead time for production orders? For dental tubes, 4–6 weeks is typical; anything beyond 8 weeks suggests capacity or supply chain issues.
- Do they maintain safety stock of common models?
- Can they scale production if your demand increases?
5. After-sales support
- Do they provide warranty terms in writing? A standard dental tube warranty should cover 12–18 months from date of shipment or a specified number of exposures, whichever comes first.
- Do they offer technical support for installation and troubleshooting?
- Can they provide failure analysis reports when tubes are returned under warranty?
6. Track record and references
- How many years have they been manufacturing dental X-ray tubes?
- Can they provide references from existing OEM customers or distributors?
- Do they exhibit at major dental trade shows ?
If you are evaluating dental X-ray tube suppliers right now, we invite you to contact our engineering team for a detailed capability overview, product samples, and compatibility assessment for your specific application. We are happy to provide references from existing OEM partners in over 30 countries.
Maintenance Tips to Extend Tube Life
A dental X-ray tube is a precision vacuum device. Proper handling and maintenance can extend its service life by 30–50%:
Daily practices
- Warm up the tube at the start of each clinic day. Make 2–3 low-mA exposures before full clinical use. This gradually heats the anode and filament, reducing thermal shock.
- Avoid rapid-fire exposures beyond the tube's rated duty cycle. If the manufacturer specifies a maximum of 30 exposures per hour, respect that limit. Exceeding it accelerates anode surface roughening.
Weekly checks
- Inspect the tube head for oil leaks. Insulating oil serves both as an electrical insulator and as the primary heat transfer medium. Low oil levels cause arcing and accelerated degradation.
- Verify exposure consistency. If you notice increasing image noise or decreasing contrast over time, the tube may be reaching end of life—or the generator calibration may have drifted.
Quarterly and annual maintenance
- Check collimator alignment. Misaligned collimation can cause the beam to clip the housing edge, producing artifacts and exposing the housing to unnecessary radiation damage.
- Measure radiation output and HVL. A qualified medical physicist or radiation safety officer should verify that output and beam quality remain within specification. Declining output at the same technique settings indicates tube aging.
- Inspect high-voltage cables and connectors. Cracked insulation or corroded connectors increase the risk of arcing, which can damage both the tube and the generator.
Storage and handling
- Never drop or jar a tube assembly. The anode-cathode alignment in a dental tube is precise to fractions of a millimeter. Mechanical shock can shift this alignment, destroying image quality.
- Store spare tubes in their original packaging, in a dry environment, at room temperature. Extreme heat or cold can compromise the vacuum seal.
- When installing a replacement tube, follow the manufacturer's torque specifications for mounting hardware and the recommended oil fill procedure. Over-tightening mounting bolts can stress the glass envelope; under-filling oil leaves air pockets that compromise insulation and cooling.
Conclusion
Choosing the right dental X-ray tube is not a commodity purchasing decision—it is a clinical, regulatory, and financial decision that echoes through every image your system produces, every patient interaction, and every service call for years to come.
To summarize the key decision framework:
- Start with image quality requirements. Define the focal spot size, beam quality, and resolution your clinical application demands.
- Verify compatibility with your existing or planned generator and tube head assembly—electrically, mechanically, and regulatorily.
- Evaluate the grid question based on your imaging modality: grids for panoramic and cephalometric; typically unnecessary for intraoral.
- Assess total cost of ownership, not just purchase price. Factor in lifespan, retake rates, service burden, and regulatory compliance costs.
- Choose a manufacturer, not just a product. The manufacturer's quality system, engineering support, supply reliability, and after-sales service are as important as the tube specification itself.
- Maintain the tube properly to protect your investment and maintain image quality throughout its service life.
The difference between a good dental X-ray tube and a mediocre one is not visible on a purchase order. It becomes visible in the clarity of your images, the satisfaction of your clinicians, the confidence of your patients, and the predictability of your operating costs.
