An X-ray tube is one of the core components of an X-ray imaging system. It directly affects radiation output, image quality, operating efficiency, and the overall service life of the equipment. For medical equipment manufacturers, distributors, and maintenance companies, selecting the right Medical X-Ray Tube is therefore more than simply matching a model number.
Different imaging systems have different requirements. A dental X-ray machine, portable diagnostic system, mobile C-arm, and general radiography system may require completely different tube specifications.
Understanding the main factors before purchasing can make the selection process much easier.
1. Start With the X-Ray Application
The first question should always be: where will the X-ray tube be used?
Dental imaging usually requires a compact tube designed for relatively specific exposure conditions. A Dental X-Ray Tube may be used in intraoral or panoramic dental equipment, where factors such as focal spot size, tube voltage, and physical dimensions need to match the equipment design.
General diagnostic imaging has different requirements. Medical X-ray systems may need higher power, greater heat capacity, and stable performance during repeated exposures.
For mobile systems, size and integration can become more important. Portable X-ray equipment needs components that can work reliably while maintaining a compact system structure.
X-ray tubes are also used in mobile DR, C-arm systems, security inspection equipment, and industrial imaging. Sailray currently lists applications including medical X-ray machines, mobile C-arm, mobile DR, dental X-ray machines, portable X-ray machines, and security X-ray systems.
2. Understand Stationary and Rotating Anode Tubes
One of the most important choices is between a stationary anode and a rotating anode design.

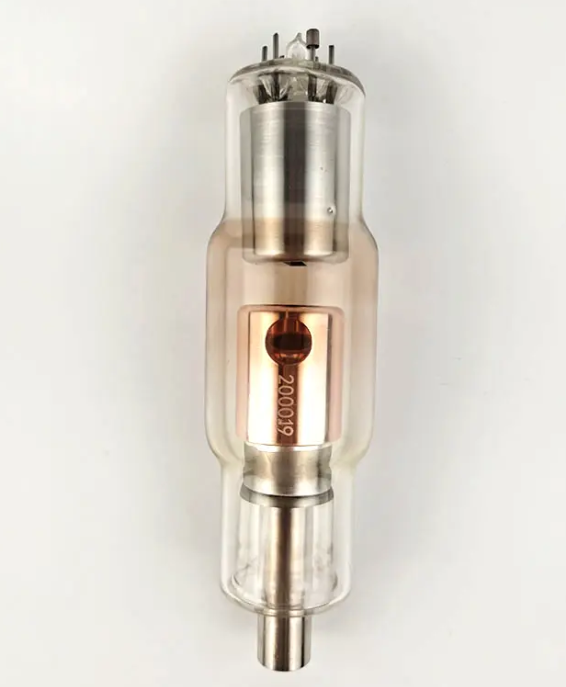

A Stationary Anode X-Ray Tube has a fixed target. Its relatively simple construction makes it suitable for applications where exposure workloads are moderate. Dental systems and some portable or general diagnostic equipment can use this type of tube.
A rotating anode tube works differently. The anode rotates during exposure, spreading the electron impact over a larger track. This helps distribute heat and allows the tube to handle more demanding exposure conditions.
For example, Sailray's MWTX64-0.3/0.6-130 rotating anode tube is designed for medical diagnosis and C-arm X-ray systems. It has a maximum operating voltage of 130 kV, a 64 mm reinforced anode, 200 kHU heat storage, and a maximum continuous dissipation of 475 W.
The choice between the two should therefore be based on the workload and equipment design rather than simply choosing the more powerful option.
3. Pay Attention to Heat Management
During X-ray exposure, electrons strike the anode target and generate X-rays. However, most of the electron energy is converted into heat.
This makes heat management one of the key considerations when selecting a Diagnostic X-Ray Tube.
If a system performs frequent exposures, the tube needs enough heat storage and cooling capability to handle the workload. A rotating anode can distribute heat across a larger target track, which makes it suitable for systems with higher exposure demands.
For lower-duty applications, a stationary anode design may provide a simpler solution.
The technical specifications should therefore be considered together rather than separately. Maximum tube voltage, focal spot size, anode size, heat storage capacity, and cooling characteristics all provide useful information about how the tube can be used.
4. Check the Focal Spot Size
Focal spot size is another important specification.
A smaller focal spot can help achieve finer detail in an X-ray image because the effective area where electrons hit the target is reduced. However, smaller focal spots can also have limitations in terms of power and heat loading.
For this reason, manufacturers often provide different focal spot configurations for different imaging requirements.
Some rotating anode tubes use dual-focus designs. For example, the MWTX64-0.3/0.6-130 provides two focal spots of 0.3 mm and 0.6 mm, allowing the system to use different exposure conditions depending on the imaging task.
When replacing an existing tube, the focal spot specification should match the original system requirements instead of being selected independently.
5. Make Sure the Tube Matches the Existing Equipment
Compatibility is one of the most practical issues for replacement projects.
A tube may have similar voltage and focal spot specifications but still not be suitable for a particular X-ray system. Mechanical dimensions, electrical connections, housing configuration, cooling requirements, and control characteristics may all need to be considered.
This is particularly important when purchasing an equivalent or replacement tube.
Sailray provides a range of tubes listed as equivalents to models from manufacturers such as Toshiba, IAE, CEI, Varian, and Siemens. For example, the MWTX70-1.0/2.0-125 is listed as equivalent to Toshiba E-7239, while the MWTX73-0.6/1.2-150H is listed with equivalents including Toshiba E7252, Varian RAD-14, Siemens RAY-14, and IAE RTM782HS.
However, buyers should still confirm the complete technical specifications before placing an order.
6. Consider the Complete X-Ray System
The tube itself is only one part of an X-ray imaging system.
Depending on the application, other components may include an X-ray tube housing, high-voltage cable, HV cable receptacle, collimator, exposure hand switch, and shielding components.
A mismatch between these components can affect system integration and operating reliability.
Sailray's current product range includes X-ray tube housings, rotating anode housings, 75KVDC high-voltage cables, HV cable receptacles, medical X-ray collimators, exposure hand switches, and X-ray shielding lead glass.
For equipment manufacturers and distributors, working with a supplier that can provide multiple related components may simplify sourcing and technical communication.
7. Quality Control Matters for Replacement Tubes
X-ray tubes operate under high voltage and demanding thermal conditions, so manufacturing consistency is important.
For replacement projects, buyers should pay attention to inspection procedures, production controls, testing, warranty terms, and technical support.
According to Sailray, its products are inspected before leaving the factory, while its quality control process includes incoming inspection, production process control, and pre-delivery testing. The company also states that its products are covered by warranty periods ranging from 12 to 24 months.
These details are worth checking when comparing suppliers, especially for distributors and equipment manufacturers purchasing tubes in larger quantities.
Conclusion
Choosing the right Medical X-Ray Tube requires more than comparing price or tube voltage.
Buyers should first identify the application, then evaluate anode type, focal spot size, heat capacity, voltage, mechanical compatibility, and the requirements of the complete X-ray system.
For dental equipment, a suitable Dental X-Ray Tube may focus on compact design and appropriate exposure characteristics. For demanding diagnostic or fluoroscopy systems, a Rotating Anode X-Ray Tube may provide the heat management required for repeated exposures. For portable and moderate-duty equipment, a Stationary Anode X-Ray Tube may be a practical choice.
The most reliable selection process is to compare the actual equipment requirements with the complete technical specifications of the tube. This helps manufacturers, distributors, and service companies reduce compatibility problems and select an X-ray tube that fits the intended application.
