The X-ray tube is one of the core components of a dental imaging system. Although it is relatively small compared with the complete equipment, its performance can have a direct effect on exposure stability, image consistency, equipment reliability, and maintenance requirements.
For dental equipment manufacturers, distributors, and maintenance companies, choosing a suitable Dental X-Ray Tube is therefore not simply a matter of finding a compatible replacement. Tube voltage, focal spot size, anode structure, heat capacity, application, and system compatibility all need to be considered together.
So, what should buyers look at before selecting a dental X-ray tube?
1. Start With the Application
The first step is to identify how the X-ray tube will be used.
Different dental imaging systems have different operating requirements. An Intraoral Dental X-Ray Tube, for example, is designed for intraoral dental X-ray equipment, while a Panoramic Dental X-Ray Tube is intended for panoramic dental imaging systems.
These applications may differ in tube voltage, focal spot requirements, mechanical dimensions, and exposure conditions. Selecting a tube based only on its appearance or a similar model number can therefore create compatibility problems.
Before placing an order, buyers should confirm the equipment type, existing tube model, electrical parameters, mounting requirements, and available space inside the tube housing.
2. Focal Spot Size Affects Image Detail
Focal spot size is another important specification when selecting a dental X-ray tube.
The focal spot is the area on the anode target where the electron beam produces X-rays. A smaller focal spot can help support higher spatial resolution because it reduces geometric blurring. However, focal spot size cannot be considered separately from tube power and heat management.
Dental imaging equipment needs a balance between image quality and reliable operation. A tube with a suitable focal spot should match the design requirements of the complete imaging system rather than simply being selected for the smallest available value.
For equipment manufacturers, checking the focal spot specification together with tube current and voltage is a practical way to evaluate whether a tube is suitable for a particular application.
3. Heat Management Should Not Be Overlooked
X-ray generation produces a significant amount of heat at the anode target. As a result, thermal performance is an important part of tube design.
For many dental applications, a Stationary Anode X-Ray Tube is a practical solution because of its relatively simple construction and suitability for dental imaging equipment. The anode remains fixed during operation, so heat management depends heavily on the target design, exposure conditions, and cooling system.
The correct tube should therefore provide sufficient heat storage and dissipation for the expected workload.
If the tube is frequently operated beyond its intended exposure conditions, excessive thermal stress can accelerate wear and affect service life. Buyers should always compare the tube's technical specifications with the actual operating cycle of their equipment.
4. Check Compatibility Beyond the Model Number
When replacing an existing tube, using the original model number as a reference is useful, but it should not be the only consideration.
A replacement Dental X-Ray Tube may need to match several parameters, including:
- ✓ Nominal tube voltage
- ✓ Tube current
- ✓ Focal spot size
- ✓ Anode configuration
- ✓ Target angle
- ✓ Filament characteristics

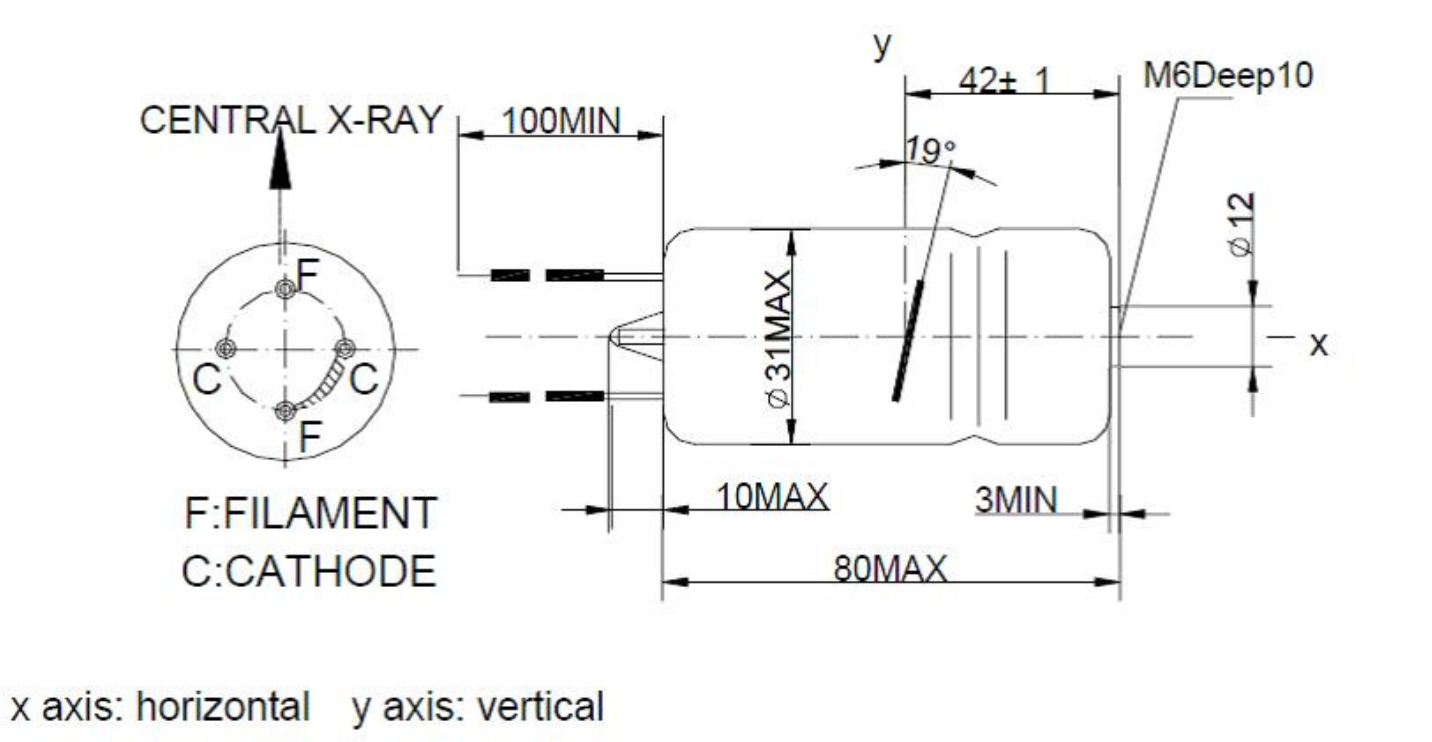

- ✓ Physical dimensions
- ✓ Mounting arrangement
- ✓ High-voltage connection
- ✓ Tube housing configuration

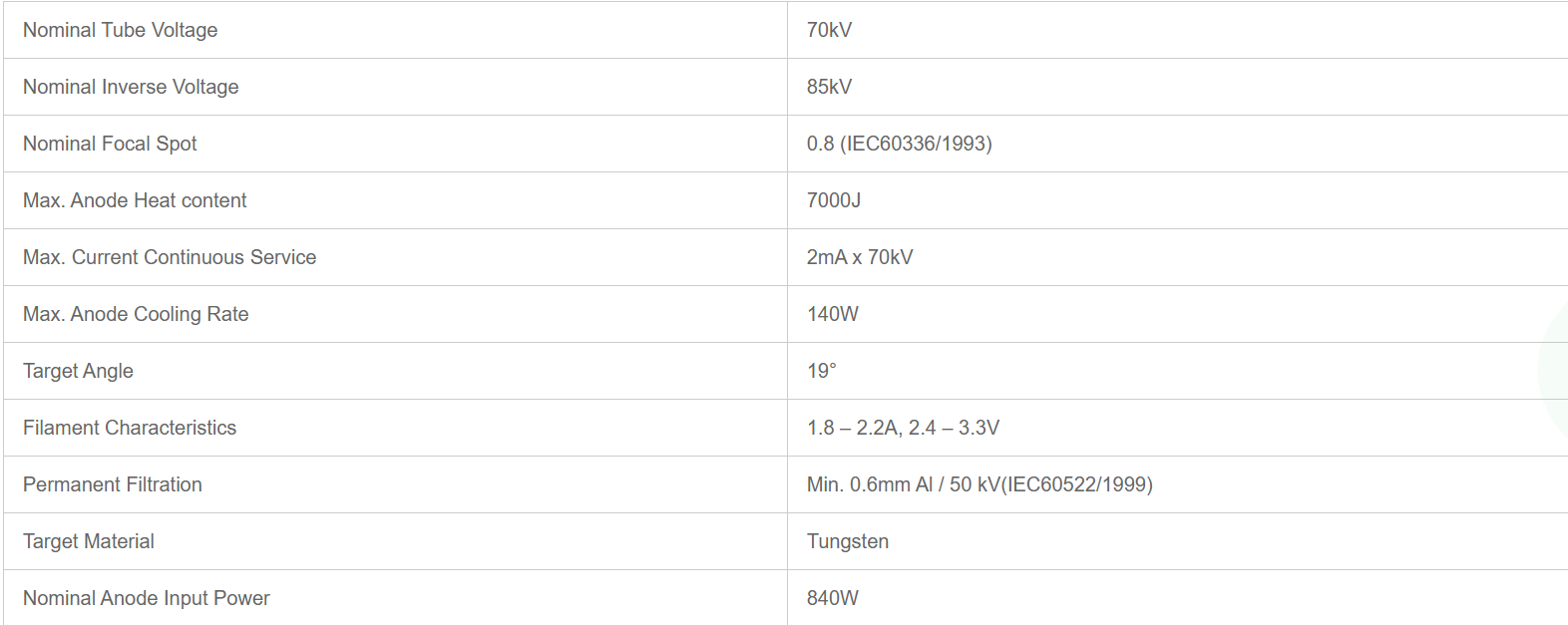

For example, dental X-ray tube products available for intraoral applications can have different focal spot sizes and voltage ratings depending on the equipment design.
This is why professional technical confirmation is recommended before a replacement tube is ordered, particularly when an equivalent model is being considered.
5. Tube Construction Influences Reliability
The internal construction of an X-ray tube also matters.
A typical X-ray tube contains a cathode, anode target, vacuum envelope, and other supporting components. The cathode generates electrons, while the anode target receives the accelerated electrons and produces X-rays.
The quality of the vacuum envelope and target assembly can influence operating stability. High-density tungsten targets are commonly used in diagnostic X-ray tubes because tungsten has suitable properties for high-temperature X-ray generation.
For dental equipment manufacturers, consistent component quality is especially important because the tube needs to perform predictably over repeated exposure cycles.
6. Consider the Complete Dental X-Ray Imaging System
An X-ray tube should never be evaluated as an isolated component.
It works together with the high-voltage generator, tube housing, collimator, exposure control system, detector, and other components. Even if the tube itself meets the required specifications, an incorrect combination with other system components can affect overall performance.
For this reason, equipment manufacturers should evaluate the complete Dental X-Ray Imaging System when selecting a tube.
Compatibility with the existing tube housing and high-voltage system is particularly important during replacement or equipment upgrades. A technically suitable tube may still require confirmation of electrical and mechanical interfaces before installation.
7. Manufacturer Support Matters for Replacement Projects
For distributors and equipment service companies, product availability is only one part of the purchasing decision.
Technical support can become equally important when replacing a discontinued tube or identifying an equivalent model. A Dental X-Ray Tube Manufacturer with experience across different dental and medical X-ray applications can help buyers compare specifications and identify a suitable replacement.
The manufacturer's product range is also worth considering. A supplier offering both dental and medical X-ray tubes, together with related components such as tube housings, high-voltage cables, receptacles, and collimators, can make sourcing more convenient for equipment manufacturers and maintenance teams.
A Practical Checklist Before Ordering
Before purchasing a dental X-ray tube, buyers can prepare the following information:
- Existing equipment or X-ray system model
- Original X-ray tube model
- Required tube voltage and current
- Focal spot size
- Anode type
- Physical dimensions and mounting information
- High-voltage connection requirements
- Expected exposure frequency
- Application type, such as intraoral or panoramic imaging
- Required certifications and documentation
Providing these details to the supplier can significantly reduce the risk of ordering an incompatible product.
Conclusion
Choosing a Dental X-Ray Tube requires more than comparing model numbers and prices. Application, focal spot size, thermal performance, electrical specifications, mechanical compatibility, and overall system requirements should all be considered before purchasing.
For intraoral and panoramic dental equipment, selecting a tube designed for the specific application can help manufacturers maintain stable equipment performance and simplify replacement work.
As dental imaging equipment continues to develop, the focus is moving beyond individual component specifications toward better compatibility between the X-ray tube and the complete imaging system. For buyers, a clear understanding of technical requirements is the first step toward making a more reliable tube selection.
