For modern Hospital DR Equipment, the quality of diagnostic images and the efficiency of patient throughput are directly tied to the performance of the X-ray tube at their core. Among the critical choices in system design is the selection between a stationary and a Rotating Anode X Ray Tube. While stationary anodes serve lower-power applications well, the rotating anode has become indispensable for high-demand hospital environments. This technology delivers distinct advantages in heat management, imaging power, and long-term operational value, making it a superior choice for facilities requiring consistent, high-quality output. Understanding these benefits is crucial for anyone involved in equipment procurement or departmental planning.
Superior Heat Management and Higher Power Capacity
The most significant advantage of a Rotating Anode X Ray Tube lies in its ability to handle the intense heat generated during X-ray production. Over 99% of the electrical energy in an X-ray tube is converted into heat, with less than 1% producing useful X-rays. In a stationary anode, the electron beam strikes a single, fixed focal spot, causing rapid and extreme temperature buildup that can quickly damage the target.
A rotating anode solves this problem by using a large tungsten disc that spins at high speeds, typically around 2800 RPM or higher. This rotation distributes the thermal energy across a circular focal track on the disc's surface, effectively spreading the heat load. This mechanism allows rotating anode systems to operate at power levels 10 to 100 times greater than their stationary counterparts, typically in the range of 50 to 100 kilowatts. This high power capacity is a prerequisite for the demanding imaging protocols of a busy hospital.
Anode Heat Storage and Continuous Dissipation Performance
For a hospital DR department, the ability to sustain high-volume imaging without excessive downtime is critical. The thermal performance of a Rotating Anode X Ray Tube is defined by two key specifications: Anode Heat Storage capacity and maximum continuous dissipation. A typical rotating anode tube designed for general DR applications offers an Anode Heat Storage of 150 kHU, which determines how much thermal energy the anode can absorb and store instantly during a burst of exposures. This capacity is adequate for standard radiographic procedures, handling multiple rapid exposures in succession.
Equally important is the maximum continuous dissipation, which for comparable systems is rated at 410W. This specification indicates the tube's ability to shed heat during sustained operation, allowing it to recover quickly between imaging sequences. For a busy radiology department, this translates into fewer delays caused by tube overheating, enabling smoother patient flow and reducing the time needed for cooling pauses. These performance parameters ensure that the Rotating Anode X Ray Tube can meet the demands of a typical hospital caseload without compromising image quality or equipment longevity.
Enabling High-Volume and Specialized Imaging
The superior power and heat dissipation of a Rotating Anode X Ray Tube directly translate into a broader clinical capability. High-volume imaging applications like CT scans, fluoroscopy, angiography, and interventional procedures depend on rotating anodes to handle the sustained exposures and high power levels required. These procedures, which can involve continuous or rapid successive exposures, would be impossible with stationary anodes due to overheating and damage.
For Hospital DR Equipment, this means the ability to perform a wider range of examinations with greater efficiency. The higher power enables significantly shorter exposure times, which reduces motion blur and improves image sharpness. This is particularly critical for pediatric imaging, trauma cases, and patients who have difficulty holding still. Furthermore, faster imaging sequences improve patient throughput, allowing a department to handle a higher volume of examinations daily, a key factor in busy clinical settings.
X Ray Tube Focal Spot Design and Imaging Precision
The imaging precision of a Rotating Anode X Ray Tube is largely determined by its X Ray Tube Focal Spot size and anode design. A Dual Focus X Ray Tube design, offering both a small X Ray Tube Focal Spot (e.g., 1.0 mm) for high-resolution imaging of fine details and a large X Ray Tube Focal Spot (e.g., 2.0 mm) to handle higher power loads for imaging thicker anatomy, is a common feature in modern rotating anodes. This Dual Focus X Ray Tube design allows the radiologic technologist to select the optimal balance between image resolution and power for each specific examination.
The anode angle also plays a critical role in image quality. A typical anode angle of 16°, combined with a focal spot size of 1.0/2.0 mm, is designed to provide an optimal compromise between the effective focal spot size and the field coverage. This configuration ensures that the X-ray beam delivers sufficient intensity across the detector while maintaining image sharpness. The ability to switch between focal spots without compromising thermal capacity is a testament to the sophisticated engineering of modern Rotating Anode X Ray Tubes.
Long-Term Reliability and Operational Efficiency
While the initial cost of a Rotating Anode X Ray Tube is higher than a stationary anode system, it offers superior long-term value in high-volume hospital settings. The distributed thermal load significantly reduces the stress on the anode, preventing focal track damage and extending the overall service life of the tube. In demanding environments, rotating anodes typically last 12 to 24 months, while stationary anodes under similar workloads might need replacement every 6 to 12 months due to damage.
This extended lifespan translates to reduced downtime, lower maintenance costs, and consistent image quality over the long term. The ability to handle rapid successive exposures without extensive cooling delays ensures that the imaging department can maintain a steady workflow, maximizing the return on investment. By choosing a Rotating Anode X Ray Tube for Hospital DR Equipment, healthcare facilities are investing in a system that delivers not only superior diagnostic performance but also long-term operational efficiency and reliability. A professional manufacturer with deep expertise in this field ensures that the equipment meets these demanding standards.
A Technical Specification Overview

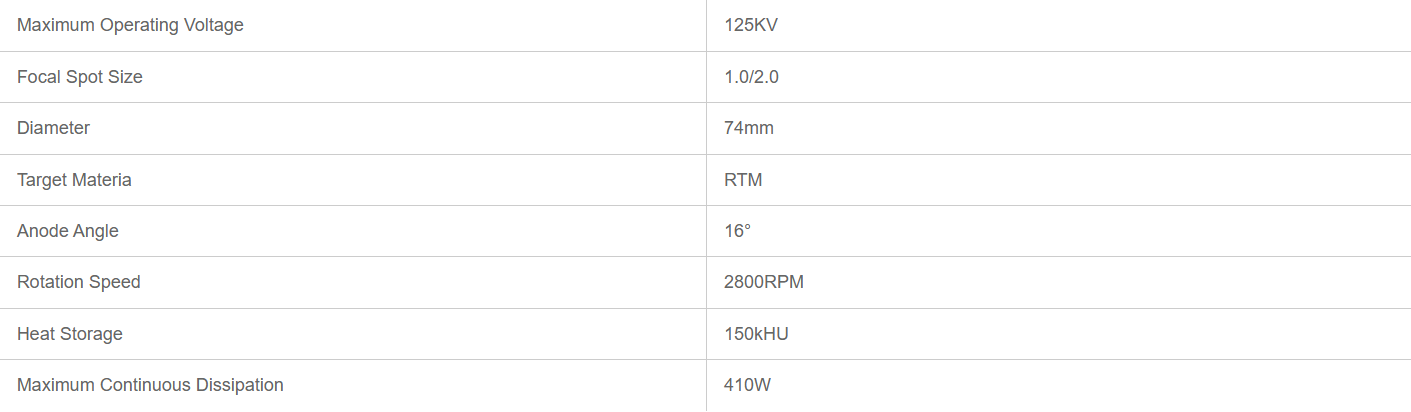

To illustrate the typical configuration of a Rotating Anode X Ray Tube suitable for Hospital DR Equipment, the following table summarizes key technical parameters. These specifications provide a clear reference for equipment evaluation and selection.
These specifications represent a balanced design that meets the demands of general radiography, providing adequate power, thermal capacity, and imaging precision for a busy hospital environment. The choice of a Rotating Anode X Ray Tube with such parameters ensures that the Hospital DR Equipment can deliver consistent diagnostic performance while maintaining
