A panoramic dental X-ray (often called “PAN” or OPG) is a core imaging tool in modern dentistry because it captures the entire maxillofacial region—teeth, jawbones, TMJs, and surrounding structures—in one scan. When clinics or service teams search “what are the parts of a panoramic x-ray?”, they may mean two things: the anatomical structures seen on the image, or the hardware components inside the panoramic unit. This article focuses on the equipment parts that make panoramic imaging possible, with a practical buyer/service perspective—especially around the Panoramic Dental X-ray Tube such as the TOSHIBA D-051 (commonly referenced as Panoramic Dental X-ray Tube TOSHIBA D-051).
1) X-ray Generation System

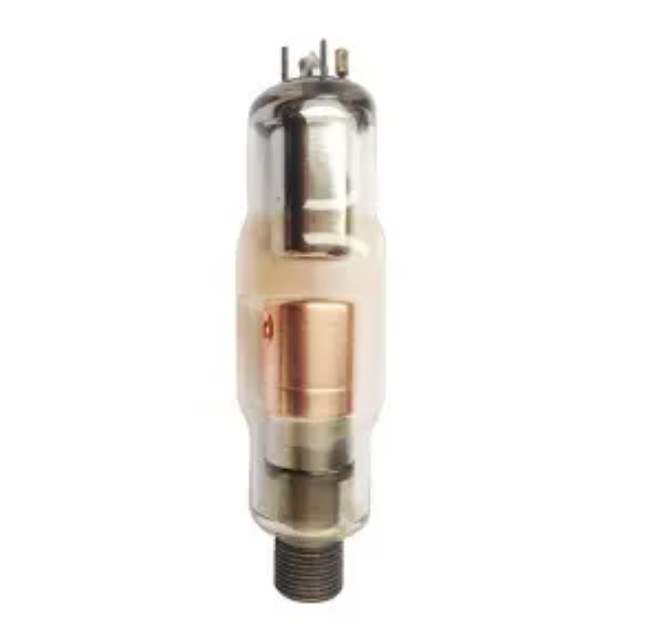

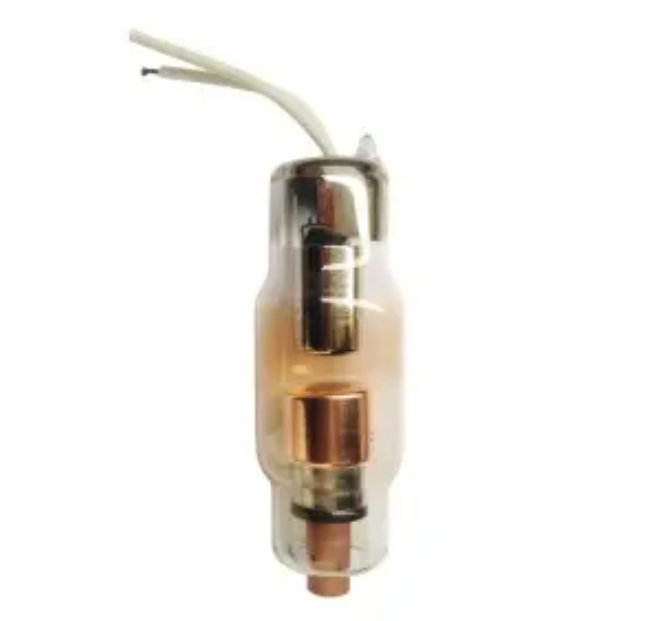

Panoramic Dental X-ray Tube (e.g., TOSHIBA D-051)
The tube is the heart of the system. It converts electrical energy into X-rays using:
- Cathode/filament to emit electrons
- Anode/target to generate X-rays when electrons strike it
- Tube housing with shielding and oil for insulation and heat management
In panoramic workflows, the tube must support stable output across repeated exposures. Clinically, stability affects image density and contrast; operationally, it impacts retake rates and tube life.
What buyers typically evaluate in a Panoramic Dental X-ray Tube (including models like TOSHIBA D-051) includes:
- Focal spot stability (helps maintain sharpness)
- Thermal performance (reliable operation in busy clinics)
- Compatibility with the generator and mechanical mount of the panoramic unit
Even small improvements in tube stability can reduce retakes. For example, cutting retake frequency from 5% to 2% in a high-volume clinic directly improves throughput and reduces patient radiation exposure.
High-Voltage Generator
This module provides:
- kV (tube voltage): controls beam energy and penetration
- mA (tube current) and exposure timing: controls dose and image density
Many panoramic systems operate in ranges such as 60–90 kV and 2–10 mA depending on patient size and imaging mode. Consistent generator output is critical; drift or ripple can show up as inconsistent brightness or noise.
2) Beam Shaping and Dose Control
Collimator and Filtration
- Collimator narrows the beam into the required geometry (often a thin vertical slit for panoramic motion).
- Filtration (added aluminum equivalent) removes low-energy photons that increase dose without improving image quality.
The practical advantage: better filtration and collimation can lower unnecessary exposure while maintaining diagnostic detail—important for compliance and patient confidence.
Exposure Control / AEC (if equipped)
Some units include automatic exposure features that adjust output to patient size, improving consistency and helping reduce retakes.
3) Mechanical Motion System
A panoramic unit is not a static X-ray. The image is formed while the tubehead and detector rotate around the patient.
Key components:
- Rotational arm / gantry
- Motors, belts/gears, and encoders
- Slip rings or cable management system
Encoders and motion calibration are especially important because panoramic sharpness depends on synchronized movement. If the motion path is off, you can see distortion, magnification errors, or blurred anatomy—problems often misattributed to the tube when the root cause is mechanical alignment.
4) Image Receptor System
Depending on the generation of equipment:
- Digital sensors (CCD/CMOS/flat-panel) dominate modern systems
- Older systems may use PSP plates or film-based receptors
Performance factors buyers care about:
- Spatial resolution (detail visibility)
- Noise performance (low-dose capability)
- Dynamic range (handles different densities across jaw anatomy)
Digital systems can improve workflow by shortening acquisition-to-view time to seconds, which is a measurable productivity advantage in multi-chair practices.
5) Patient Positioning System
Even with a high-quality Panoramic Dental X-ray Tube TOSHIBA D-051, poor positioning can ruin the image. Positioning components include:
- Chin rest and bite block
- Forehead support and temple/head stabilizers
- Laser alignment guides (mid-sagittal, Frankfort plane, canine line)
- Control panel with preset programs (adult/child, dentition focus)
Better stabilization reduces motion artifacts—one of the top reasons for retakes.
6) Control Electronics, Software, and Safety Systems
- System controller and imaging software
- Interlocks and emergency stop
- Exposure hand switch
- Shielding and leakage control within regulatory limits
For procurement, software compatibility (DICOM export, integration with practice management) often matters as much as tube specifications.
Bottom Line
The main parts of a panoramic X-ray system include the Panoramic Dental X-ray Tube (such as TOSHIBA D-051), the high-voltage generator, beam shaping components (collimation/filtration), the rotating mechanical motion system, the detector, and the patient positioning hardware—plus the control electronics and safety interlocks. If you’re planning a tube replacement or stocking spares, share your panoramic unit model and generator specs, and I can help confirm TOSHIBA D-051 compatibility, typical failure symptoms, and what to check (tube vs. generator vs. motion calibration) before purchasing.
