100KV High Voltage Cable for X-ray Unit

100KV High Voltage Cable for X-ray Unit

100KV High Voltage Cable for X-ray Unit

Short Description:

Rated voltage:100KVDC medical High voltage flexible cable

Typical applications are as followings:

1Medical x-ray equipment like standard x-ray, computer tomography and angiography


2Industrial and scientific x-ray or electron beam equipment like electron microscopy

and x-ray diffraction equipment.

3Low power high voltage testing and measuring equipment.

Product Detail

Payment & Shipping Terms:

Product Tags


1. A variety of small diameter, highly flexible cable types are available;

2.95% shield coverage with ratings up to 100 kVDC;
3. Complied with ROHS and REACH .

4. High temperature 100°C plug with replaceable spring pins;

5. Maintenance free plugs are available if silicone gaskets are used

6. Small diameter flange-cable assembly is easy to assemble
7. Ring nut and bolt type separation flange, convenient for later assembly;
8. Injection-molded soft PVC boot to ensure maximum elimination of cable bending stress and ensure longevity

9. Excellent high withstand voltage, highest quality standard
10. Best cable flexibility, easy to integrate
11. Removable PIN connectors, fast maintenance
12. Cable length can be customized for you

Technical Data

Number of conductor


Rated voltage


Routine test voltage (high voltage insulation)


Routine test voltage (conductor insulation)


Maximum conductor current


Nominal outside diameter


Insulation resistance core to shield @20℃


Conductor resistance DC resistance20


20bare ground wire DC resistance @20℃

6.93 mΩ/m

Max Capacitance between conductor and shield


Cable Min bending radius(static insulation)


Cable Min bending radius(dynamic installation)


Operating temperature


Transportation and Storage temperature


Net weight

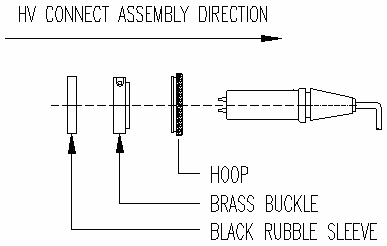

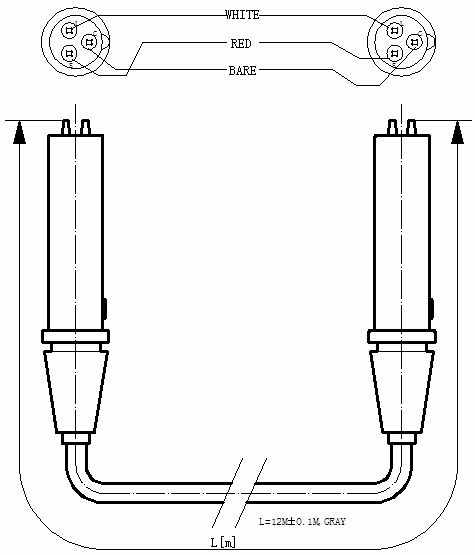

Connection Diagram

srx-z75 (2)

srx-z75 (2)

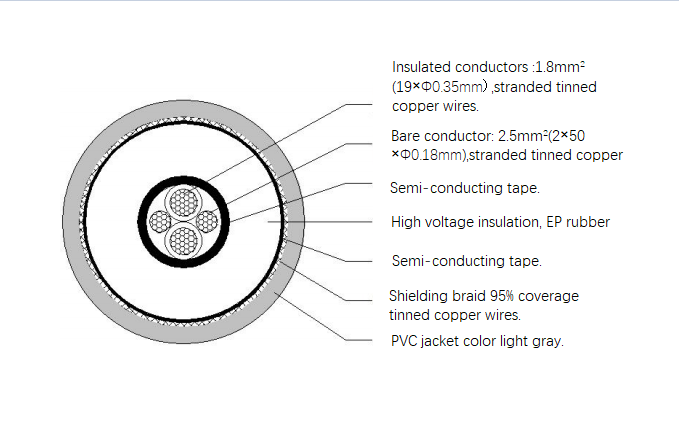

Cable Schema

100kv 高压电缆结构图

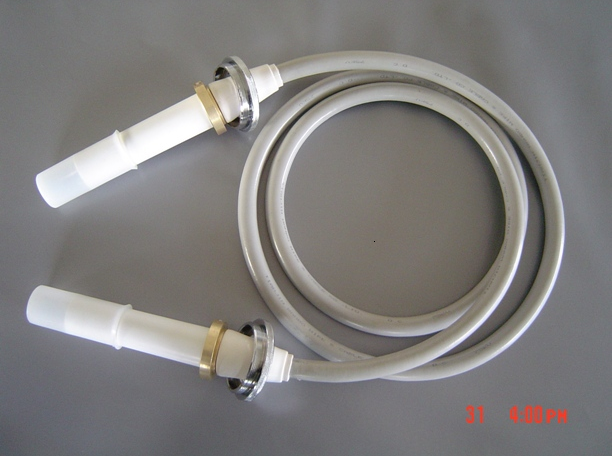

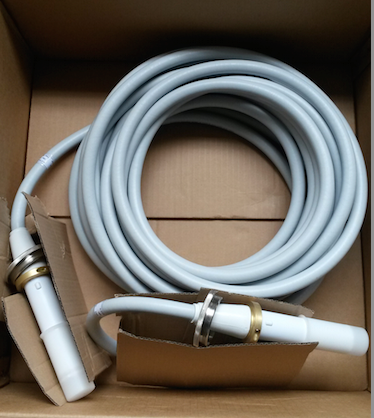

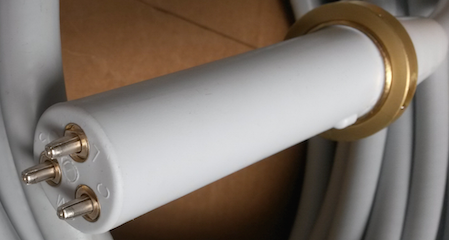

Photo of HV Cable Assembly

srx-z75 (2)

srx-z75 (2)

srx-z75 (2)
