Dental X-ray Tube Toshiba D-041

Dental X-ray Tube Toshiba D-041

Dental X-ray Tube Toshiba D-041

Short Description:

Type: Stationary anode x-ray tube
Application: For dental radiography unit
Model: RT11-0.4-70
Equivalent to TOSHIBA D-041

Installed in the same enclosure with the high voltage transformer


Product Detail

Payment & Shipping Terms:

Product Tags

Description

RT11-0.4-70 Stationary anode X-Ray Tube is especially designed for high frequency intra-oral dental x-ray unit and available for a nominal tube voltage with DC.
RT11-0.4-70 tube has one focus.
The integrated high quality tube with glass design has one super imposed focal spot and a reinforced anode. The high anode heat storage capacity ensures a wide range of applications for intra-oral dental application. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support.

Applications

RT11-0.4-70 Stationary anode X-Ray Tube is especially designed for high frequency intra-oral dental x-ray unit and available for a nominal tube voltage with DC.

Technical data

Maximum Tube Voltage 70kV
MaximumTube Current 9mA
Maximum power (at 1.0s) 430 W
Maximum anode cooling Rate 110W
Max.Anode Heat Content 4.3kJ
Filament Characteristics .Ifmax=3.0A,Uf=3.2±0.5V
Focal spot 0.4(IEC 60336 2005)
Target Angle 12°
Target Material Tungsten
Cathode type W filament
Permanent Filtration Min. 0.5mmAl/50 kV(IEC60522/1999)
Dimensions 67mm length by 30mm diameter
Weight 100 grams

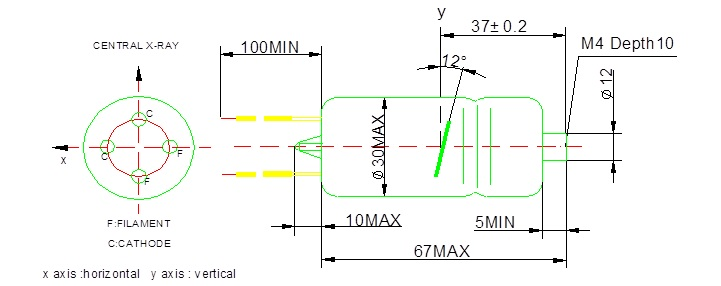

Detailed Images

KL11-0.4-70

Characteristics

Competitive Advantage

Elevated anode heat storage capacity and cooling
Constant high dose yield
Excellent lifetime

Maintaining seasoning schedule

Prior to usage, season the tube in accordance with the seasoning schedule given below until the required tube voltage is attained. Example given – needs to revise by the manufacturer and specified in the data sheet of the part:

Initial incoming seasoning and seasoning schedule for idle period (more than 6 months) Circuit: AC/DC (Center grounded)

 When the tube current is unstable in seasoning, immediately switch off the tube voltage and after an interval of 5 minutes or more, increase the tube voltage gradually from the low voltage while making sure that the tube current is stable. The withstand voltage performance of the tube unit will be lowered as the exposure time and the number of operation increase. Stain-like impact traces might appear on the x-ray tube target surface by slight discharge in the course of the seasoning. These phenomena are one process to recover the withstanding voltage performance at that time. Therefore, if it is in stable operation at the maximum tube voltage of seasoning subsequent to them, the tube unit can be used without any interference to its electrical performance which in use.


  • Previous:
  • Next:

  • Minimum Order Quantity: 1pc

    Price: Negotiation

    Packaging Details: 100pcs per carton or customized according to the quantity

    Delivery Time: 1~2 weeks according to the quantity

    Payment Terms: 100% T/T in advance or WESTERN UNION

    Supply Ability: 1000pcs/ month
