Mobile X-ray Tube Cei OX110-5

Mobile X-ray Tube Cei OX110-5

Mobile X-ray Tube Cei OX110-5

Short Description:

Type: Station anode x-ray tube
Application: For general diagnostic x-ray unit
Model: KL25-0.6/1.5-110
Equivalent to CEI OX110-5
Integrated high quality glass tube


Product Detail

Payment & Shipping Terms:

Product Tags

Description

KL25-0.6/1.5-110 stationary anode x-ray tube is especially designed for C-arm equipment and available for nominal tube voltage with high frequency or DC generator.
The integrated high quality tube with glass design has two super imposed focal spot and a reinforced anode. A special designed anode enables an elevated heat dissipation rate which leads to a higher patient throughput and a longer product life. A constant high dose yield during the entire tube life is ensured by the high density tungsten target. Ease of integration into system products is facilitated by extensive technical support.

Applications

KL25-0.6/1.5-110 is especially designed for C-arm equipment and available for nominal tube voltage with DC generator.

This tube has focus 1.5 and 0.6 foci and is available for maximum tube voltage 110 kV.



Technical data

Nominal Tube Voltage 110kV
Nominal Focal Spot small:0.6   large:1.5(IEC60336/2005)
Filament Characteristics small:Ifmax=4.5A,Uf=5±0.5  large:Ifmax=4.5A,Uf=6.3±0.8V
Nominal Input Power(at 1.0s) small:spot0.6kW  large:spot3.5kW
Maximum Continuous Rating 225W
Anode Heat Storage Capacity 30kJ
Target Angle 12°
Target Material Tungsten
Inherent Filtration Min 0.6mmAl equivalent at 75kV
Weight approx540g

Detailed Images

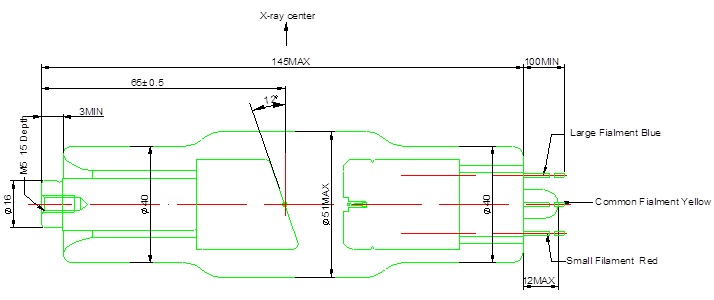

KL25-0.6-1.5-110

Environmental Limits

Operating Limits (in dielectric oil):

Oil Temperature ................................................................................................10 ~ 60 °C

Oil Pressure ................................................................................................. 70 ~ 106 kPa

Shipping and Storage Limits: Temperature.................................................-40~ 70 °C

Humidity ........................................................................................................... 10 ~ 90 %

(No condensation)

Atmospheric Pressure ................................................................................. 50 ~ 106 kPa

Competitive Advantage

Elevated anode heat storage capacity and cooling
Constant high dose yield
Excellent lifetime


  • Previous:
  • Next:

  • Minimum Order Quantity: 1pc

    Price: Negotiation

    Packaging Details: 100pcs per carton or customized according to the quantity

    Delivery Time: 1~2 weeks according to the quantity

    Payment Terms: 100% T/T in advance or WESTERN UNION

    Supply Ability: 1000pcs/ month
