1. Why Mobile C-Arm Units Have Strict Standards For X Ray Exposure Hand Switch

Mobile C-arm X-ray systems serve surgical suites, emergency wards and outpatient operating rooms, where radiologists need flexible, safe exposure control during real-time fluoroscopy. Unlike fixed stationary radiography machines, portable C-arm devices are frequently moved between patient beds, operating tables and narrow ward corridors. A low-quality control handle will delay surgery, trigger accidental radiation leakage or break down under frequent daily use, creating clinical safety risks.

Many hospital procurement teams and medical equipment repair technicians overlook small hand switch accessories during equipment upgrades. They often buy generic cheap switches that fail to match original C-arm circuit logic, leading to intermittent exposure failure or constant machine error codes. Hangzhou Sailray Medical, a 15-year specialist in X-ray system spare parts, designs dedicated control handles optimized for mobile C-arm working scenarios, solving common compatibility and durability pain points seen with aftermarket generic products. The core of reliable operation lies in picking a qualified two-step dead man exposure trigger, the mandatory safety structure required by global medical radiation standards.

2. Core Safety Rule: Two-Step Trigger Mechanism For Mobile Surgical Use

All international medical radiation codes mandate the dead-man two-stage design for mobile X-ray exposure controllers, and this is the first screening standard buyers must check before purchasing.

First gear press: Activates X-ray tube preheating and filament boost, no radiation output yet;
Full second gear press: Triggers official fluoroscopy exposure; release at any stage instantly cuts all X-ray emission.

This layered design eliminates accidental radiation if the operator’s hand slips during emergency surgery. Generic single-button switches skip the preheat phase, causing severe damage to expensive rotating anode X-ray tubes inside the C-arm. Sailray’s full range of hand switches strictly follows this dual-stage layout, built with stable Omron microswitch X-ray hand control internal components to guarantee consistent gear separation after millions of presses.

Low-grade substitutes use cheap domestic microswitches that lose stroke definition after 50,000 operations, making it hard to distinguish gear one and gear two during long orthopedic surgeries. Sailray’s internal Omron microswitches deliver a 1,000,000 times mechanical service life and 400,000 times electrical service life, cutting hospital annual replacement costs significantly.

3. Cable & Shell Material Selection For Frequent Mobile Ward Transport

Mobility is the biggest environmental challenge for C-arm hand switches. Units get twisted, stepped on, dragged across floors and squeezed between surgical trolleys every day, so cable and housing material directly decide service lifespan.

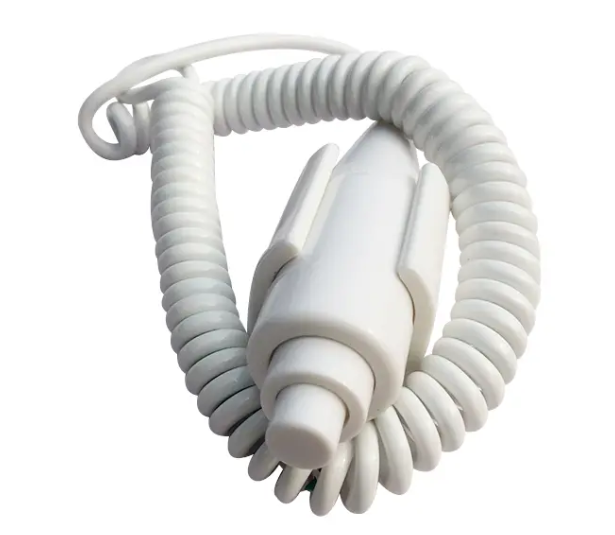

Premium models adopt stretchable coiled wire, known as Coiled PU cable X-ray hand switch, with pure copper inner conductors wrapped in wear-resistant PU outer insulation. Compared with flat rigid cables, retractable spiral cords avoid tangling during movement and automatically retract to tidy length when not held. Standard stretched lengths from 3m to 10m can be customized to fit large operating theatres or compact emergency cubicles.

The outer shell uses high-impact medical ABS plastic, resistant to alcohol, disinfectant wipes and frequent surface sterilization. Cheap PVC shells crack after repeated chemical cleaning, exposing internal wiring and creating short-circuit hazards. Every Sailray hand switch is equipped with a matching wall/stand mounting bracket, allowing operators to hang the handle safely when idle to prevent damage.

4. Compatibility & Certification Check Before Bulk Procurement

Hospital procurement and equipment resellers need to verify two critical qualifications to avoid incompatible returns: circuit core count and global medical certifications.

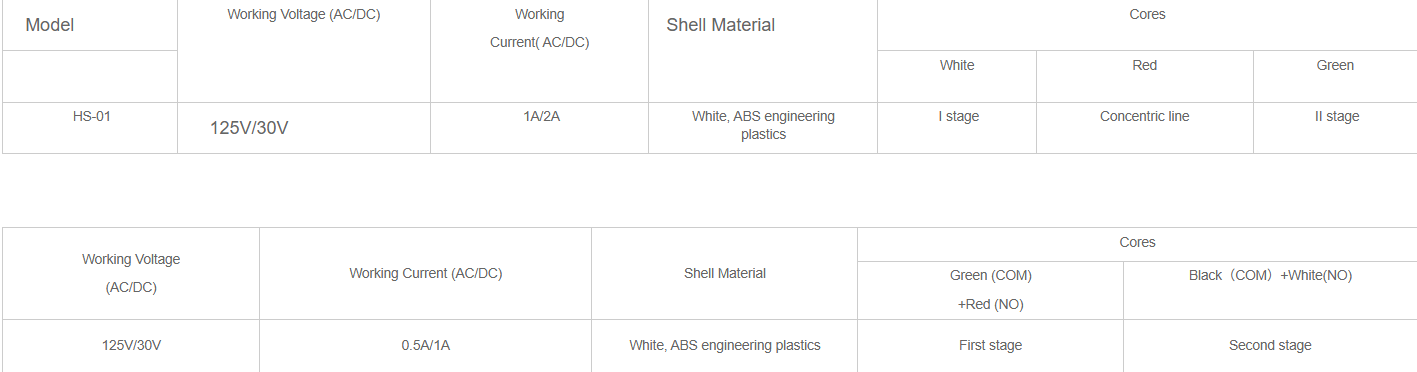

Core wire matching: Mobile C-arm systems support either 3-core or 4-core internal wiring. Buyers must confirm their equipment motherboard port specification before ordering; Sailray supplies both variants with customizable terminal plugs including RJ11, DB9 and aviation connectors.
Mandatory medical certification: All spare parts used in surgical radiology equipment must carry CE and RoHS medical grade approval. Uncertified switches cannot pass hospital equipment inspection or EU import customs, making CE certified C-arm replacement hand brake a non-negotiable purchasing requirement.

Sailray’s exposure controllers complete full third-party medical testing before delivery, with certification documents attached to every shipment for tender filing and customs clearance. We offer small sample trial orders for equipment maintenance companies to test compatibility before large batch wholesale.

5. Matching Application Scenarios & Customization Support

Beyond standard mobile surgical C-arm fluoroscopy units, this series of exposure handles works for multiple portable radiology devices: dental mobile X-ray machines, bedside DR units and small orthopedic portable X-ray scanners. As a professional Chinese X-ray spare parts manufacturer, Sailray provides personalized modification services to meet unique equipment brand demands, acting as reliable suppliers of standardized Medical mobile X-ray exposure controller for global medical distributors.

Customizable options include cable stretch length, wire core quantity, plug type, shell color and printed brand logos. For repair shops servicing GE, Siemens, Ziehm domestic and imported C-arm models, we can produce direct replacement hand switches with identical wiring logic to eliminate machine debugging time after installation.

6. Final Buying Checklist For Mobile C-Arm X Ray Exposure Hand Switch

Before placing orders, cross-check these 5 key points to avoid poor-quality spare parts:

Confirm two-stage dead man trigger design with genuine Omron internal microswitches;
Select wear-resistant coiled PU retractable cable with suitable stretched length;
Match 3-core or 4-core wiring to the target C-arm’s circuit port;
Request CE, RoHS medical certification for hospital and overseas customs clearance;
Confirm mounting bracket accessory is included for daily storage protection.

Cutting costs on hand switch spare parts leads to unexpected C-arm downtime, interrupted surgical procedures and costly X-ray tube repairs. Investing in durable, certified control handles from professional manufacturers like Sailray reduces long-term equipment maintenance expenditure for medical facilities.

Conclusion

When sourcing replacement or spare X Ray Exposure Hand Switch for mobile C-arm X-ray machines, safety compatibility, material durability and formal medical certification should always take priority over low upfront pricing. Sailray Medical’s full line of exposure control handles combines Omron internal hardware, medical-grade coiled PU cables and complete global certifications, perfectly matching all mainstream mobile fluoroscopy equipment models.

If you need technical parameter sheets, free product samples or bulk wholesale quotations for your hospital or equipment repair business, visit Sailray Medical official website https://www.dentalx-raytube.com to browse full hand switch specifications and contact our professional sales team.
