Selecting the correct Dental X Ray Tube is essential for maintaining image quality, equipment reliability, and patient safety in modern dental practices. Whether servicing an existing intraoral imaging system or manufacturing new dental X-ray equipment, choosing a compatible replacement tube requires careful evaluation of electrical specifications, focal spot size, heat capacity, and mechanical dimensions.
A well-matched Dental X-Ray Tube Replacement not only restores imaging performance but also extends the service life of the entire Dental Radiography Unit, reducing maintenance costs and minimizing equipment downtime.
Why the Dental X-Ray Tube Is Critical
The Dental X Ray Tube is responsible for generating X-rays by accelerating electrons toward a tungsten target. The resulting X-ray beam produces high-resolution images that enable dentists to diagnose cavities, periodontal disease, periapical infections, and bone abnormalities with precision.
As the most important component inside an intraoral imaging system, the tube directly affects:
- Image clarity
- Exposure consistency
- Radiation efficiency
- Equipment reliability
- Clinical workflow
When tube performance begins to decline, image quality often deteriorates, leading to repeated exposures and reduced diagnostic efficiency.
Verify Electrical Specifications Before Replacement

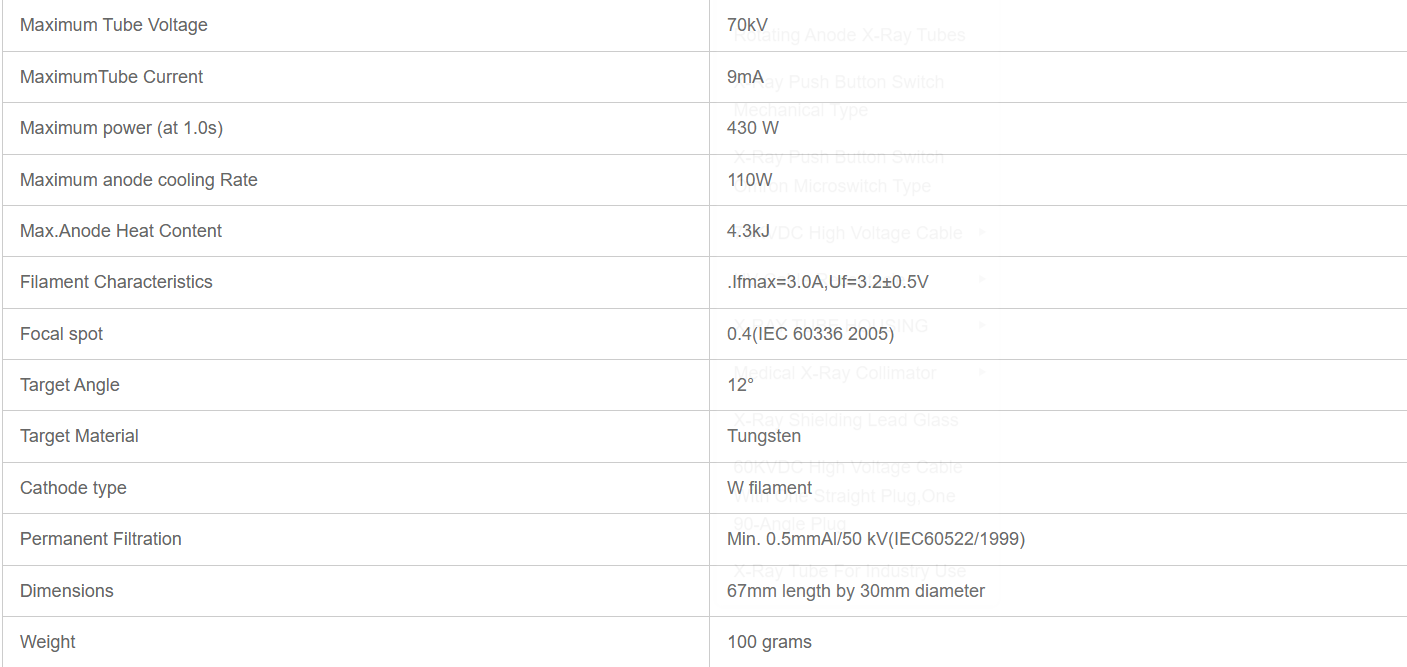

The first step when selecting a replacement Medical X-Ray Tube is ensuring complete compatibility with the original system.
Matching these electrical parameters ensures stable X-ray generation while preventing excessive stress on the generator and high-voltage circuit.
Using a tube with incompatible voltage or current ratings may reduce image quality or shorten equipment lifespan.
Match the Focal Spot for High-Resolution Imaging
One of the most important specifications of an Intraoral X-Ray Tube is the focal spot.
This model features a 0.4 mm focal spot compliant with IEC 60336, allowing extremely sharp image resolution while minimizing geometric blur.
A small focal spot provides significant advantages, including:
- Higher diagnostic accuracy
- Better visualization of root canals
- Improved detection of early caries
- Enhanced periodontal imaging
- Reduced image distortion
For intraoral radiography, maintaining the correct focal spot size is essential for producing consistently high-quality diagnostic images.
Tungsten Target Improves X-Ray Efficiency
Target material has a direct influence on X-ray production efficiency.

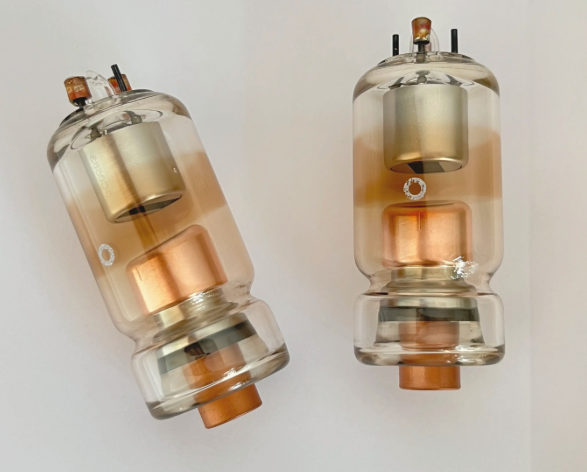

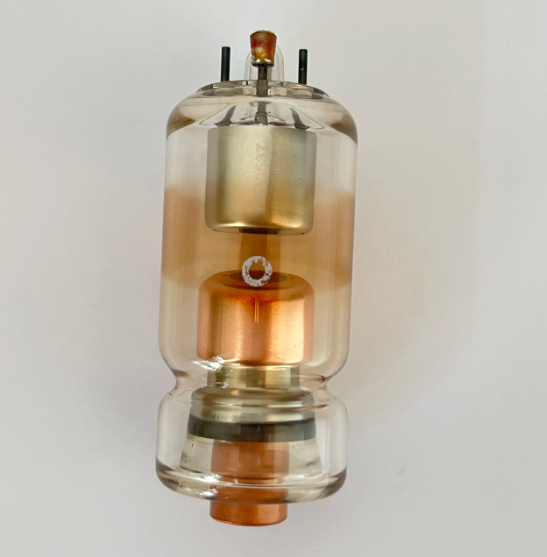

This Dental X Ray Tube uses a tungsten target, one of the most widely accepted materials in medical imaging due to its:
- High melting point
- Excellent heat resistance
- Efficient X-ray generation
- Long operational life
Combined with a 12° target angle, the tube delivers an optimal balance between effective focal spot size and radiation intensity, producing clear images while maximizing heat dissipation.
Thermal Performance Supports Continuous Clinical Use
Dental clinics often perform dozens of examinations every day, making thermal management an important consideration.
The tube's 4.3 kJ maximum anode heat capacity and 110 W cooling rate enable it to withstand repeated exposure cycles while maintaining stable imaging performance.
Efficient heat management helps:
- Prevent overheating
- Extend tube lifespan
- Maintain consistent output
- Reduce maintenance frequency
- Improve clinical productivity
These characteristics are especially valuable in busy dental hospitals and imaging centers.
Filtration and Radiation Safety
Patient safety remains a top priority in dental radiography.
This Medical X-Ray Tube incorporates a minimum permanent filtration of 0.5 mm Al at 50 kV, meeting the requirements of IEC 60522.
Proper filtration removes unnecessary low-energy X-rays that contribute little to image formation while increasing patient exposure.
As a result, the system produces higher-quality diagnostic images with improved radiation efficiency.
Compact Design for Easy Integration
Mechanical compatibility is equally important when replacing an X-ray tube.

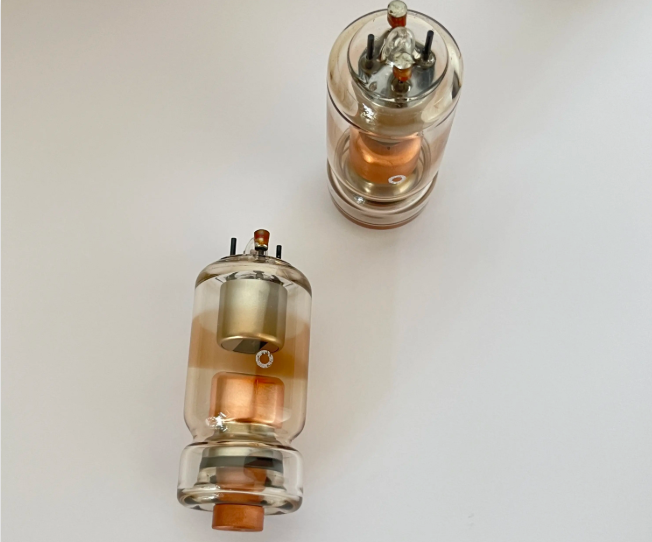

This model features compact dimensions of 67 mm in length and 30 mm in diameter, with a lightweight design of approximately 100 grams.
Its compact structure simplifies installation in various Dental Radiography Units, helping manufacturers and service engineers reduce replacement time while maintaining compatibility with existing equipment.
Choosing a Reliable Dental X-Ray Tube Supplier
The performance of a replacement tube depends not only on its specifications but also on manufacturing quality.
A professional supplier should offer:
- Precision manufacturing technology
- Stable X-ray output
- Strict quality inspection
- IEC-compliant production
- OEM and ODM services
- Global technical support
- Reliable delivery capability
Working with an experienced manufacturer ensures consistent product quality and long-term reliability for dental imaging systems.
Conclusion
Choosing the correct Dental X Ray Tube involves much more than matching dimensions. Electrical compatibility, focal spot accuracy, thermal capacity, target material, filtration, and mechanical design all contribute to the performance of a modern Dental Radiography Unit.
With specifications including 70 kV maximum tube voltage, 9 mA tube current, 430 W output power, a 0.4 mm focal spot, tungsten target, 12° target angle, and 4.3 kJ anode heat capacity, a high-quality Dental X-Ray Tube Replacement ensures reliable operation and excellent image quality for intraoral diagnostic applications. Whether used by dental equipment manufacturers, distributors, or maintenance professionals, selecting a precision-engineered Medical X-Ray Tube is the key to delivering consistent clinical performance and long-term equipment reliability.
